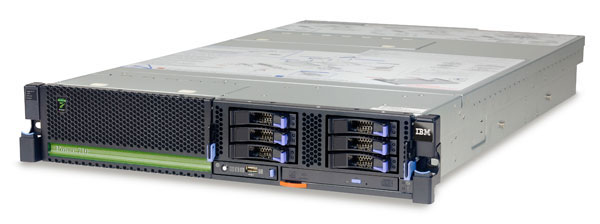

安裝類型 |
機架式 |
|
高度 |
2U |
|
CPU：POWER7+ 處理器模塊 - 每個系統 1 個 |
4 核 3.6 GHz 或 |
|
6 核 4.2 GHz 或 |
|
8 核 4.2 GHz |
|
CPU個數 |
1 |
|
二級 （L2） 緩存 |
每個內核 256 KB |
|
三級 （L3） 緩存 |
每個內核 10 MB |
|
內存 |
8 GB 到 256 GB 的 RDIMM DDR3 |
|
Active Memory 擴展 |
|
固態驅動器 （SSD） |
多達 6 個 SFF 驅動器或 |
|
磁盤驅動器 |
多達 6 個 SFF SAS 驅動器 |
|
磁盤容量 |
多達 5.4 TB |
|
媒介托架 |
用于 DVD-RAM 的 Slimline |
|
用于磁帶驅動器1或可移動磁盤的半高型托架 |
|
I/O |
|
|
PCI 適配器插槽 |
5 個 PCI Express 第 2 代 8x 小型插槽 |
|
標準以太網 |
4 個以太網 10/100/1000 Mbps 端口 |
|
集成式 SAS 控制器 |
一個控制器用于配備 RAID 10 和 DVD-RAM 的 SAS DASD/SSD |
|
（選配）175 MB 緩存和 RAID 5、6 |
|
高性能 PCI 適配器 |
8 GB 光纖通道 |
|
2 端口 16 Gbps 光纖通道 |
|
2 端口 10 GbE RoCE |
|
雙端口 10 GB 以太網 |
|
雙端口 10 GB 以太網光纖通道 |
|
雙端口 QDR Infiniband |
|
6Gbps SAS RAID 控制器 |
|
其他集成式端口 |
3 個 USB 端口、2 個 HMC 端口、2 個系統端口 |
|
GX 插槽 |
1 個 GX++（采用 4 核處理器時不提供） |
|
PowerVM® 技術 |
|
|
POWER Hypervisor™ |
虛擬機、LPAR、動態 LPAR、虛擬 LAN（內存到內存分區間通信） |
|
PowerVM（可選） |
服務器上多達 3 個分區；虛擬化磁盤和光驅設備 （VIOS）；集成式虛擬化管理器 （IVM）；共享專用容量 |
|
PowerVM 標準版（可選） |
PowerVM，外加微分區®功能（每個處理器多達 20 個微分區）；多個共享處理器池 |
|
PowerVM 企業版（可選） |
PowerVM 標準版，外加實時分區遷移 （LPM） 和 Active Memory 共享 （AMS） |
|
RAS 特性 |
采用 Chipkill 的 ECC 內存 |
|
處理器指令重試 |
|
備用處理器恢復 |
|
帶故障監控功能的服務處理器 |
|
熱插拔磁盤托架 |
|
熱插拔冗余電源和散熱風扇 |
|
動態組件釋放 |
|
操作系統2 |
AIX |
|
IBM i |
|
Linux for POWER® |
|
高可用性 |
IBM PowerHA® 系列 |
|
電源要求 |
100 V 到 240 VAC，單相 |
|
系統規格 |
機架抽屜：3.4 英寸高 × 17.6 英寸寬 × 28.6 英寸深（86 毫米 × 447 毫米 × 728 毫米）；重 62 磅（28.2 千克）3 |
Processor
(#EPCE) -4-core 3.6 GHz POWER7+ Processor Module
(#EPCG) -6-core 4.2 GHz POWER7+ Processor Module
(#EPCJ) -8-core 4.2 GHz POWER7+ Processor Module
Memory
(#4795) -Active Memory Expansion Enablement
(#5265) -Memory Riser Card
(#EM08) -8GB (2x4GB) Memory DIMMs, 1066 MHz, 2Gb DDR3 DRAM
(#EM4B) -16GB (2x8GB) Memory DIMMs, 1066 MHz, 4Gb DDR3 DRAM
(#EM4C) -32GB (2x16GB) Memory DIMMs, 1066 MHz, 4Gb DDR3 DRAM
(#EM4D) -64GB (2x32GB) Memory DIMMs, 1066 MHz, 4Gb DDR3 DRAM
Media Devices
(#1124) -80/160GB DAT160 SAS Tape Drive (3.5")
(#5762) -SATA Slimline DVD-RAM Drive
(#5771) -SATA Slimline DVD-RAM Drive
(#EJ0D) -Storage Backplane -- 6 SFF Drives/SATA DVD
(#EJ0E) -Storage Backplane -- 3 SFF Drives/SATA DVD/HH Tape
(#EJ0F) -Storage Backplane -- 6 SFF Drives/SATA DVD/RAID/ External SAS Port
Disk
(#1737) -856GB 10k RPM SAS SFF Disk Drive (IBM i)
(#1738) -856GB 10k RPM SAS SFF-2 Disk Drive (IBM i)
(#1751) -900GB 10K RPM SAS SFF Disk Drive (AIX/Linux)
(#1752) -900GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1790) -600GB 10K RPM SAS SFF Disk Drive (AIX/Linux)
(#1879) -283GB 15K RPM SAS SFF Disk Drive (IBM i)
(#1880) -300GB 15K RPM SAS SFF Disk Drive (AIX/Linux)
(#1883) -73.4 GB 15K RPM SAS SFF Disk Drive
(#1884) -69.7 GB 15K RPM SAS SFF Disk Drive
(#1885) -300GB 10K RPM SFF SAS Disk Drive
(#1886) -146GB 15K RPM SFF SAS Disk Drive (AIX/Linux)
(#1888) -139GB 15K RPM SFF SAS Disk Drive (IBM i)
(#1911) -283GB 10K RPM SFF SAS Disk Drive (IBM i)
(#1916) -571GB 10k RPM SAS SFF Disk Drive (IBM i)
(#1917) -146GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1925) -300GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1947) -139GB 15k RPM SAS SFF-2 Disk Drive (IBM i)
(#1948) -283GB 15k RPM SAS SFF-2 Disk Drive (IBM i)
(#1953) -300GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1956) -283GB 10k RPM SAS SFF-2 Disk Drive (IBM i)
(#1962) -571GB 10k RPM SAS SFF-2 Disk Drive (IBM i)
(#1964) -600GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#3647) -146GB 15K RPM SAS Disk Drive (AIX/Linux)
(#3648) -300GB 15K RPM SAS Disk Drive (AIX/Linux)
(#3649) -450GB 15K RPM SAS Disk Drive (AIX/Linux)
(#3658) -428GB 15K RPM SAS Disk Drive (IBM i)
(#3677) -139.5GB 15k rpm SAS Disk Drive (IBM i)
(#3678) -283.7GB 15k rpm SAS Disk Drive (IBM i)
(#ELS1) -#ES11 Load Source Specify (387GB SSD SFF-1)
(#ELS9) -#ES1A Load Source Specify (387GB SSD SFF-2)
(#ELSJ) -#ESDJ Load Source Specify (571GB 15K RPM SFF-1 )
(#ELSN) -#ESDN Load Source Specify (571GB 15K RPM SFF-2 )
(#ESD0) -1.1TB 10K RPM SAS SFF-1 Disk Drive (IBM i)
(#ESD1) -1.2TB 10K RPM SAS SFF-1 Disk Drive (AIX/Linux)
(#ESD2) -1.1TB 10K RPM SAS SFF-2 Disk Drive (IBMi)
(#ESD3) -1.2TB 10K RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#ESDJ) -571GB 15K RPM SAS SFF-1 Disk Drive - 528 Block (IBM i)
(#ESDK) -600GB 15K RPM SAS SFF-1 Disk Drive - 5xx Block (AIX/Linux)
(#ESDN) -571GB 15K RPM SAS SFF-2 Disk Drive - 528 Block
(#ESDP) -600GB 15K RPM SAS SFF-2 Disk Drive - 5xx Block
Solid State Drive
(#0893) -#ES0B Load Source Specify
(#0894) -#ES0D Load Source Specify
(#1775) -177GB SFF-1 SSD w/ eMLC (AIX/Linux)
(#1787) -177GB SFF-1 SSD w/ eMLC (IBM i)
(#1995) -177GB SSD Module with eMLC (AIX/Linux)
(#1996) -177GB SSD Module with eMLC (IBM i)
(#EH10) -387GB SFF-2 SSD converted for AIX/Linux
(#EH11) -387GB SFF-2 SSD converted for AIX/Linux
(#EH12) -387GB SFF-2 SSD converted for IBM i
(#EH13) -387GB SFF-2 SSD converted for IBM i
(#EH14) -GEN2-S Conversion Carrier for Feature ES0C 387GB SSD
(#EH16) -GEN2-S Conversion Carrier for Feature ES0D 387GB SSD (IBM i)
(#ELSF) -#ES0F Load Source Specify (775GB SSD SFF-1)
(#ELSH) -#ES0H Load Source Specify (775GB SSD SFF-2)
(#ELT9) -#ES79 Load Source Specify (387GB SFF-2 SSD 5xx for IBM i)
(#ELTF) -#ES7F Load Source Specify (775GB SFF-2 SSD 5xx for IBM i)
(#ES02) -387GB 1.8" SAS SSD for AIX/Linux with eMLC
(#ES0A) -387GB SFF-1 SSD for AIX/Linux with eMLC
(#ES0B) -387GB SFF-1 SSD for IBM i with eMLC
(#ES0C) -387GB SFF-2 SSD for AIX/Linux with eMLC
(#ES0D) -387GB SFF-2 SSD for IBM i with eMLC
(#ES0E) -775GB SFF-1 SSD for AIX/Linux
(#ES0F) -775GB SFF-1 SSD for IBM i
(#ES0G) -775GB SFF-2 SSD for AIX/Linux
(#ES0H) -775GB SFF-2 SSD for IBM i
(#ES0J) -387GB 1.8" SSD for AIX/Linux
(#ES10) -387GB SFF-1 SSD for AIX/Linux
(#ES11) -387GB SFF-1 SSD for IBM i
(#ES19) -387GB SFF-2 SSD for AIX/Linux
(#ES1A) -387GB SFF-2 SSD for IBM i
(#ES78) -387GB SFF-2 SSD 5xx eMLC4 for AIX/Linux
(#ES79) -387GB SFF-2 SSD 5xx eMLC4 for IBM i
(#ES7E) -775GB SFF-2 SSD 5xx eMLC4 for AIX/Linux
(#ES7F) -775GB SFF-2 SSD 5xx eMLC4 for IBM i
Adapters
(#2053) -PCIe LP RAID & SSD SAS Adapter 3Gb
(#5260) -PCIe2 LP 4-port 1GbE Adapter
(#5269) -PCIe LP POWER GXT145 Graphics Accelerator
(#5270) -PCIe LP 10Gb FCoE 2-port Adapter
(#5271) -PCIe LP 4-Port 10/100/1000 Base-TX Ethernet Adapter
(#5272) -PCIe LP 10GbE CX4 1-port Adapter
(#5273) -PCIe LP 8Gb 2-Port Fibre Channel Adapter
(#5274) -PCIe LP 2-Port 1GbE SX Adapter
(#5275) -PCIe LP 10GbE SR 1-port Adapter
(#5276) -PCIe LP 4Gb 2-Port Fibre Channel Adapter
(#5277) -PCIe LP 4-Port Async EIA-232 Adapter
(#5278) -PCIe LP 2-x4-port SAS Adapter 3Gb
(#5279) -PCIe2 LP 4-Port 10GbE&1GbE SFP+ Copper&RJ45
(#5280) -PCIe2 LP 4-Port 10GbE&1GbE SR&RJ45 Adapter
(#5281) -PCIe LP 2-Port 1GbE TX Adapter
(#5283) -PCIe2 LP 2-Port 4X IB QDR Adapter 40Gb
(#5284) -PCIe2 LP 2-port 10GbE SR Adapter
(#5286) -PCIe2 LP 2-Port 10GbE SFP+ Copper Adapter
(#5290) -PCIe LP 2-Port Async EIA-232 Adapter
(#5925) -Shared EXP30 Indicator
(#5927) -Remote EXP30 Indicator
(#EC27) -PCIe2 LP 2-Port 10GbE RoCE SFP+ Adapter
(#EC29) -PCIe2 LP 2-Port 10GbE RoCE SR Adapter
(#EC2M) -PCIe3 LP 2-port 10GbE NIC&RoCE SR Adapter
(#EC37) -PCIe3 LP 2-port 10GbE NIC&RoCE SFP+ Copper Adapter
(#EC41) -PCIe2 LP 3D Graphics Adapter x1
(#EJ0H) -GX++ LP 1-port PCIe2 x8 Adapter
(#EJ0M) - PCIe3 LP RAID SAS ADAPTER Quad-Port 6Gb x8
(#EJ11) -PCIe3 LP SAS Tape/DVD Adapter Quad-port 6Gb x8
(#EN0B) -PCIe2 LP 16Gb 2-port Fibre Channel Adapter
(#EN0J) -PCIe2 LP 4-port (10Gb FCoE & 1GbE) SR&RJ45
(#EN0L) -PCIe2 LP 4-port(10Gb FCoE & 1GbE) SFP+Copper&RJ45
(#EN0T) -PCIe2 LP 4-Port (10Gb+1GbE) SR+RJ45 Adapter
(#EN0V) -PCIe2 LP 4-port (10Gb+1GbE) Copper SFP+RJ45 Adapter
(#EN0X) -PCIe2 LP 2-port 10/1GbE BaseT RJ45 Adapter
(#EN0Y) -PCIe2 LP 8Gb 4-port Fibre Channel Adapter
(#EN28) -PCIe LP 2-Port Async EIA-232 Adapter
(#ESA2) -PCIe2 LP RAID SAS Adapter Dual-port 6Gb
Power
(#5160) -Power Dist Unit 1 Phase NEMA
(#5161) -Power Dist Unit 1 Phase IEC
(#5162) -Power Dist Unit 2 of 3 Phase
(#5163) -Power Dist Unit - 3 Phase
(#5532) -System AC Power Supply, 1925 W
(#7109) -Intelligent PDU+, 1 EIA Unit, Universal UTG0247 Connector
(#7188) -Power Distribution Unit
