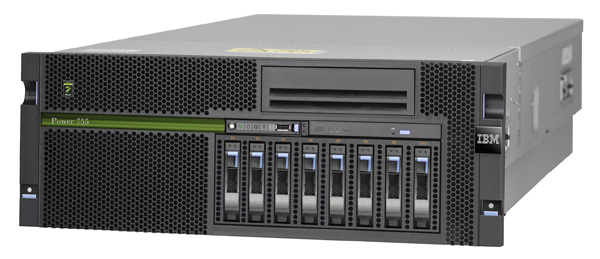

IBM P755 (8236-E8C)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 | 32C (4個8C 3.3GHz或3.6GHz) |
| CPU類型 | POWER7 |
| CPU插槽數 | 4 |
| CPU激活 | 需要對應VPD |
| 硬盤容量 | 最大可達2.4T（不算擴展柜） |
| 最大硬盤數量 | 最大8個（不算擴展柜） |
| 內存參數 | DDR3 的內存。 |
| 支持內存容量范圍 | 128GB-256GB |
| 內存插槽數量 | 內存插槽在CPU板上，單個CPU板有8個插槽，最多32個插槽 |
| 內存是否需要激活 | 增加內存不需要激活 |
| 電源描述 | 200v 到 240v 交流。 |
| 電源數量 | 2 |
| 介質托架 | 1 個薄型的 DVD-RAM。 |
| 適配器插槽 | 2 個 PCI-X 2.0；3 個 PCI Express 8x。 |
| 端口 | 4 個以太網10/100/1000 Mbps 端口或2個 10 千兆以太網端口，3 個 USB 端口，2 個 HMC 端口，2個串口。 |
| I/O適配器 | 1 個用于 SAS DASD/固態硬盤和 DVD-RAM 控制器。 |
| I/O擴展 | |
| 發布日期 | 2010/02/19 |
| 下架日期 | 2013/08/23 |
| 服務截止日期 | |
| 操作系統 | AIX，LinuX® f或者 POWER®。 |
| 產品尺寸 | 6.9"高 x 17.3"寬 x 28.7"深（175 毫米 x 440 毫米 x 730 毫米）。 |
| 產品重量 | 54.4 千克（120.0 磅) |
| FC號 | PN號 | 描述 |
| CPU | ||
| 8332 |
74Y1840 74Y2453 |
8-core 3.3GHz POWER7 Processor Card |
| EPA1 | 8-core 3.61GHz POWER7 Processor Card | |
| 內存 | ||
| 4526 | 77P8784 | 8GB (2x4GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 4527 | 77P8632 | 16GB (2x8GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 硬盤 | ||
| 1790 | 600GB 10K RPM SAS SFF Disk Drive (AIX/Linux) | |
| 1793 | 177GB SFF-2 SSD w/ eMLC (AIX/Linux) | |
| 1882 |
42R5661 42R8390 42R8392 46V6830 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426 44V4427 44V4428 44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833 44V6831 44V6833 44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843 44V6845 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1890/1909 |
58B0 44V6817 44V6821 44V8674 |
69GB SFF SAS Solid State Drive |
| 1917 | 146GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux) | |
| 1925 | 300GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux) | |
| 1964 | 600GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux) | |
| 1995 |
58B2 43W7749 |
177GB SSD Module with eMLC (AIX/Linux) |
| 3586 |
58B0 44V6819 44V8673 |
69GB 3.5" SAS Solid State Drive |
| 3647 |
10N7203 10N7204 10N7232 42R4234 |
146 GB 15K RPM SAS Disk Drive |
| 3648 |
10N7207 10N7208 10N7234 42R5648 |
300 GB 15K RPM SAS Disk Drive |
| 3649 |
44V4432 44V4433 44V4438 44V4440 |
450 GB 15K RPM SAS Disk Drive |
| RAID卡 | ||
| 2054 |
43K6366 43K6367 74Y6409 |
PCIe RAID & SSD SAS Adapter 3Gb |
| 2055 |
43K6366 43K6367 74Y6409 |
PCIe RAID & SSD SAS Adapter 3Gb w/ Blind Swap Cassette |
| 5903 |
574E 44V4198 44V7436 44V7597 74Y6124 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
| 5923 | Non-paired PCIe SAS RAID Indicator | |
| 網卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5717 |
10N7405 10N8556 46Y3512 |
4-Port 10/100/1000 Base-TX PCI Express Adapter |
| 5732 |
45D4771 46K6696 46K7899 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5767 |
10N6845 10N7405 46K6601 |
2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter |
| 5768 |
05H6768 10N6846 11P3847 12R9314 15R7536 46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 5769 |
05N6768 10N9505 11P3847 12R9314 46K7897 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5772 |
576E 05N6768 10N9034 11P3847 12R9314 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 適配卡 | ||
| 2728 |
57D1 46K6692 46K7494 |
4 port USB PCIe Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 4808 |
45D5803 45D6680 45D7948 |
PCIe Crypto Coprocessor Gen3 BSC 4765-001 |
| 5785 |
57D2 42R5143 46K6734 46K6735 6298965 |
4 Port Async EIA-232 PCIe Adapter |
| 顯卡 | ||
| 5748 | 10N7756 | POWER GXT145 PCI Express Graphics Accelerator |
| 光纖卡 | ||
| 5708 |
2B3B 05N6768 11P3847 12R9314 46K8088 |
10Gb FCoE PCIe Dual Port Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5735 |
577D 05N6768 10N9824 11P3847 12R9314 46C7006 |
8 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5774 |
05N6768 10N7255 11P3847 12R9314 15R7536 |
4 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 電源 | ||
| 7740 | 46K5673 | Power Supply, 1725 Watt AC, Hot-swap, Base or Redunda |
| 光驅 | ||
| 5762 |
44V4219 44V4220 |
SATA Slimline DVD-RAM Drive |
| 導軌 | ||
| 6586 |
10N7683 80P3263 |
Modem Tray for 19-Inch Rack |
| 線纜 | ||
| 1828 |
15R8139 45D2235 |
1.5 Meter 12X to 4X Channel Conversion Cable |
| 1841 |
15R8140 45D2236 |
3 Meter 12X to 4X Channel Conversion Cable |
| 1854 | 10 Meter 12X to 4X Enhanced Channel Conversion Cable | |
| 1861 |
44V3421 45D4785 |
0.6 Meter 12X DDR Cable |
| 1878 |
42R6067 42R6069 44V7190 |
Op Panel Cable for Rack-mount Drawer w/2.5" DASD |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232/V.24 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller/ Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 15M |
| 3668 | 42R5751 | SAS Cable, DASD Backplane to Rear Bulkhead |
| 3679 |
42R6751 44V4041 |
SAS Cable (AI)-1M |
| 3681 |
44V4151 44V8231 |
3M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3682 |
44V4152 44V8230 |
6M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller/ single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller/ single path 6M |
| 3686 |
42R6792 44V4161 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 1.5M |
| 3687 |
42R6793 44V4162 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 3M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller/Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 15 M |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 | Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 6458 | Power Cable- Drawer to IBM PDU 14-foot 250V/10A | |
| 6460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 | Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 | |
| 6472 | Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 | |
| 6473 | Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 | |
| 6474 | Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 | |
| 6475 | Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 | |
| 6476 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 | |
| 6477 | Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 | |
| 6478 | Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 | |
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 | Power Cord (9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 | |
| 6493 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 | |
| 6494 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 | |
| 6496 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 | |
| 6651 | Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 | |
| 6659 | Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 | |
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6665 | Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A | |
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6671 | Power Cord (9-foot) Drawer to IBM PDU 250V/10A | |
| 6672 | Power Cord (5-foot) Drawer to IBM PDU 250V/10A | |
| 6680 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated | |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 其它 | ||
| 1140 | Custom Service Specify, Rochester Minn, USA | |
| 2146 | 44H6111 | Primary OS - AIX |
| 2147 | Primary OS - Linux | |
| 3632 | Widescreen LCD Monitor | |
| 4276 |
04N7533 09N3435 25R9043 |
VGA to DVI Connection Converter |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5524 | RFID TAGS FOR SERVERS, BLADES, BLADECENTERS, RACKS, AND HMCS | |
| 5886 | EXP 12S Expansion Drawer | |
| 5887 | EXP24S SFF Gen2-bay Drawer | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 5983 | USB Keybd-US English Euro | |
| 6068 | Opt Front Door for 1.8m Rack | |
| 6069 | Opt Front Door for 2.0m Rack | |
| 6248 |
12R8349 44V0103 |
1.8m Rack Acoustic Doors |
| 6249 | 2.0m Rack Acoustic Doors | |
| 6263 | 1.8m Rack Trim Kit | |
| 6272 | 2.0m Rack Trim Kit | |
| 6492 | 4.3m (14-Ft) 1PH/48-60A Pwr Cord | |
| 6577 | Power Cable - Drawer to IBM PDU, 200-240V/10A | |
| 6580 | 41V0489 | Optional Rack Security Kit |
| 7118 | Environmental Monitoring Probe | |
| 8143 | Linux Software Preinstall | |
| 8144 | Linux Software Preinstall (SDIs) | |
| 8340 | 74Y2244 | Enhanced DASD/Media Backplane for 2.5" DASD/SATA DVD/ Tape with External SAS Port |
| 9300 | Language Group Specify - US English | |
| 9359 | specify mode-1 1(1)5901/5278 for EXP24S #5887 | |
| 9360 | Specify mode-1 1(2)5901/5278 for EXP24S #5887 | |
| 9361 | Specify mode-2 1(2)5901/5278 for EXP24S #5887 | |
| 9367 | -Specify mode-1 1(2)5903/5805 for EXP24S #5887 | |
| 9368 | Specify mode-2 1(4)5903/5805 for EXP24S #5887 | |
| 9384 | Specify mode-1 & CEC SAS port for EXP24 #5887 | |
| 9440 | New AIX License Core Counter | |
| 9442 | New Red Hat License Core Counter | |
| 9443 | New SUSE License Core Counter | |
| 9444 | Other AIX License Core Counter | |
| 9445 | Other Linux License Core Counter | |
| 9446 | 3rd Party Linux Core Counter | |
| 9447 | VIOS Core Counter | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator |
