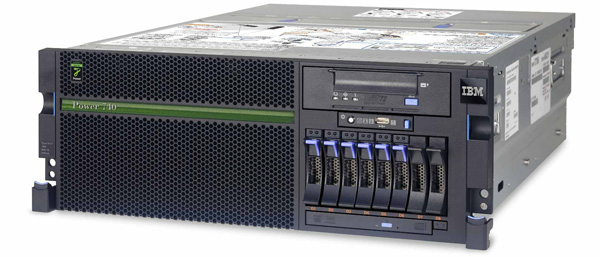

IBM P740 (8205-E6B)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 | 4 核 或 8 核 3.3 GHz 或可選擇 6 核 或 12 核 3.7 GHz 或 8 核 或 16 核 3.55 GHz POWER7 處理器。 |
| CPU類型 | POWER7 |
| CPU插槽數 | 2 |
| CPU激活 | 需要對應VPD |
| 硬盤信息 | 最大硬盤背板數量為 1 |
| 最大硬盤數量 | 8 |
| 內存參數 | DDR3 的內存。 |
| 內存容量范圍 | 8GB-256GB |
| 內存插槽數量 | 內存插槽在內存板上，單個內存板有8個插槽，最多支持4個內存板 |
| 內存是否需要激活 | 增加內存不需要激活 |
| 電源描述 | 200v 到 240v 交流。 |
| 單機電源數量 | 2 |
| 介質托架 | 用于 DVD-RAM 的薄型托架，用于磁帶驅動器或可移動磁盤的半高托架。 |
| 適配器插槽 | 4 個 PCI Express 8x和可選的 4 個PCI Express 薄型插槽。 |
| 端口 | 4 個以太網 10/100/1000 Mbps 端口（或）2 個 10 千兆以太網端口，3 個 USB 端口，2 HMC 端口，2 個串口，2 個 SPCN 端口。 |
| I/O適配器 | 1 SAS DASD/SSD 和 DVD-RAM 控制器，可選 175 MB 高速保護緩存。 |
| I/O擴展 | 最多 4 個 PCIe 12x I/O 抽屜，最多 8 個 PCI-x DDR 12x I/O 抽屜。 |
| 發布日期 | 2010/9/17 |
| 下架日期 | 2012/9/25 |
| 服務截止日期 | |
| 操作系統 | AIX, IBM I, LinuX f或者 POWER®。 |
| 產品尺寸 | 桌面型：21.3 |
| 產品重量 | 桌面型：48.2 千克（106 磅），機架擴展籠：37.3 千克（82 磅）。 |
| FC號 | PN號 | 描述 |
| CPU | ||
| 8353 |
535E 74Y6152 |
4-core 3.3GHz POWER7 Processor Module |
| 8354 |
539D 74Y6153 |
6-core 3.72GHz POWER7 Processor Module |
| 8355 |
539F 74Y6154 |
8-core 3.55GHz POWER7 Processor Module |
| 8347 |
539E 74Y6155 |
4-core 3.7GHz POWER7 Processor Module |
| 硬盤 | ||
| 1790 |
600GB 10K RPM SAS SFF Disk Drive (AIX Linux) |
|
| 1793 |
177GB SFF-2 SSD w eMLC (AIX Linux) |
|
| 1882 |
42R5661 42R8390 42R8392 46V6830 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426 44V4427 44V4428 44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1884 |
198B 44V4429 44V4430 |
69.7 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833 44V6831 44V6833 44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843 44V6845 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1888 |
198C 44V6844 00E6166 |
139 GB 15K small form factor SAS disk drive, IBM® i |
|
1890 1909 |
58B0 44V6817 44V6821 44V8674 |
69GB SFF SAS Solid State Drive |
| 1911 |
198D 74Y4896 |
283GB 10K RPM SFF SAS Disk Drive (IBM i) |
| 1917 |
146GB 15k RPM SAS SFF-2 Disk Drive (AIX Linux) |
|
| 1925 |
300GB 10k RPM SAS SFF-2 Disk Drive (AIX Linux) |
|
| 1964 |
600GB 10k RPM SAS SFF-2 Disk Drive (AIX Linux) |
|
| 1995 |
58B2 43W7749 |
177GB SSD Module with eMLC (AIX Linux) |
| 3586 |
58B0 44V6819 44V8673 |
69GB 3.5" SAS Solid State Drive |
| 3647 |
10N7203 10N7204 10N7232 42R4234 |
146 GB 15K RPM SAS Disk Drive |
| 3648 |
10N7207 10N7208 10N7234 42R5648 |
300 GB 15K RPM SAS Disk Drive |
| 3649 |
44V4432 44V4433 44V4438 44V4440 |
450 GB 15K RPM SAS Disk Drive |
| 4367 |
Bundle: 5 x #2055 and 20 x #1995 (AIX Linux) |
|
|
58B3 74Y5293 74Y5294 |
177 GB small form factor solid-state SAS drive for 9117-MMC, 9117-MMD, 9179-MHC, or 9179-MHD. | |
|
58B8 74Y9524 |
387 GB small form factor solid-state SAS drive | |
|
58B9 74Y9526 |
387 GB small form factor solid-state SAS drive | |
|
19A3 74Y4897 |
571 GB 10K small form factor SAS disk drive (IBM® i) | |
| 74Y4900 | 600 GB 10K small form factor SAS disk drive | |
|
19A4 74Y9271 |
857 GB 10K small form factor SAS disk drive (IBM i) | |
| 74Y9272 | 900 GB 10K small form factor SAS disk drive | |
| 內存 | ||
| 4525 |
04N2568 04N2967 19P2481 73H2601 81F8902 93H8055 97H7330 97H7610 97H7796 |
4GB (2x2GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 4526 | 77P8784 | 8GB (2x4GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 4529 | 77P8919 | 16GB (2x8GB) Memory DIMMs, 1066 MHz, 2GB DDR3 DRAM |
| 電源 | ||
| 5603 |
2BCB 74Y5985 |
System AC Power Supply, 1725 W |
| 系統板 | ||
| 5610 |
2BDD 46K5417 74Y3019 |
PCIe Riser Card (Gen1) |
| 46K7514 | Memory riser | |
|
2BE6 74Y2288 |
PCIe expansion assembly (Gen2) | |
|
52C3 74Y1706 |
System VPD card | |
| 磁帶機 | ||
| 5619 |
80 160GB DAT160 SAS Tape Drive |
|
| 5746 |
24R1922 35L2086 45E1126 45E1127 45E1129 95P4436 95P4450 96P1203 |
Half High 800GB 1.6TB LTO4 SAS Tape Drive |
| 5661 |
46C1932 46C1933 |
DAT320 160 320 GB Tape Drive |
| 5673 |
46C1933 46K7434 |
DAT320 160 GB USB Tape Drive |
| 5638 | 46C2007 |
1.5TB 3.0TB LTO-5 SAS Tape Drive |
| 磁帶 | ||
| 5689 | 23R5635 | DAT160 Data Cartridge |
| 5747 | IBM LTO Ultrium 4 800 GB Data Cartridge | |
| 網卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5740 | 03N5444 |
4-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5768 |
05H6768 10N6846 11P3847 12R9314 15R7536 46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 5772 |
576E 05N6768 10N9034 11P3847 12R9314 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5769 |
05N6768 10N9505 11P3847 12R9314 46K7897 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5767 |
10N6845 10N7405 46K6601 |
2-Port 10 100 1000 Base-TX Ethernet PCI Express Adapter |
| 5717 |
10N7405 10N8556 46Y3512 |
4-Port 10 100 1000 Base-TX PCI Express Adapter |
| 5732 |
45D4771 46K6696 46K7899 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5271 |
PCIe Low Profile 4-Port 10 100 1000 Base-TX Ethernet Adapter |
|
| 5272 | PCIe LP 10GbE CX4 1-port Adapter | |
| 5274 | PCIe LP 2-Port 1GbE SX Adapter | |
| 5275 | PCIe LP 10GbE SR 1-port Adapter | |
| 5284 | PCIe2 LP 2-port 10GbE SR Adapter | |
| 5286 | PCIe2 LP 2-Port 10GbE SFP+ Copper Adapter | |
| 5288 | 74Y2094 | (#5288) -PCIe2 2-Port 10GbE SFP+Copper Adapter |
| 5287 | 74Y2095 | PCIe2 2-port 10 GbE fiber card |
| 光纖卡 | ||
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5774 |
05N6768 10N7255 11P3847 12R9314 15R7536 |
4 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5735 |
577D 05N6768 10N9824 11P3847 12R9314 46C7006 |
8 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5708 |
2B3B 05N6768 11P3847 12R9314 46K8088 |
10Gb FCoE PCIe Dual Port Adapter |
| 5270 | PCIe LP 10Gb FCoE 2-port Adapter | |
| 5276 | PCIe LP 4Gb 2-Port Fibre Channel Adapter | |
| RAID卡 | ||
| 5912 |
572A 44V4413 4V4414 44V5195 44V8579 |
PCI-X DDR Dual - x4 SAS Adapter |
| 2054 |
43K6366 43K6367 74Y6409 |
PCIe RAID & SSD SAS Adapter 3Gb |
| 2053 |
43K6366 43K6367 74Y6409 |
PCIe LP RAID & SSD SAS Adapter 3Gb |
| 2055 |
43K6366 43K6367 74Y6409 |
PCIe RAID & SSD SAS Adapter 3Gb w Blind Swap Cassette |
| 5913 |
11P1346 11P3896 |
PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb |
| 5908 |
42R3965 42T3969 44V4577 44V4579 44V5193 44V8622 46K4734 46K6114 74Y5665 |
PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC) |
| 5805 | PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter | |
| 5923 | Non-paired PCIe SAS RAID Indicator | |
| 5924 |
Non-paired 6Gb s PCIe SAS RAID Indicator |
|
| SCSI卡 | ||
| 5901 |
57B3 44V4852 44V8580 45K4732 |
PCIe Dual-x4 SAS Adapter |
| 5736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 顯卡 | ||
| 5748 | 10N7756 | POWER GXT145 PCI Express Graphics Accelerator |
| 5269 | 74Y2025 | PCIe LP POWER GXT145 Graphics Accelerator |
| 適配卡 | ||
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 4807 |
45D5803 45D6680 45D7948 |
PCIe Crypto Coprocessor No BSC 4765-001 |
| 4808 |
45D5803 45D6680 45D7948 |
PCIe Crypto Coprocessor Gen3 BSC 4765-001 |
| 1826 |
266F 74Y2003 |
Dual-port 10 Gb HEA Daughter Card (Copper) |
| 5283 | PCIe2 LP 2-Port 4X IB QDR Adapter 40Gb | |
| 5278 | PCIe LP 2-x4-port SAS Adapter 3Gb | |
| 2728 |
57D1 46K6692 46K7494 |
4 port USB PCIe Adapter |
| 5785 |
57D2 42R5143 46K6734 46K6735 6298965 |
4 Port Async EIA-232 PCIe Adapter |
| 5277 | PCIe LP 4-Port Async EIA-232 Adapter | |
| 5631 |
2BE0 44V8368 44V8369 |
RAID storage controller (split disk drive function) |
|
2BCF 44V8361 74Y6020 74Y3343 |
Cache battery card | |
|
2BE1 46K7723 |
RAID enablement card | |
|
2BD9 44V8353 74Y2071 |
RAID and cache storage controller | |
| 5615 |
2BDA 00E0646 2C1E 00E1088 |
GX book assembly(CCIN:2BDA) with 00E1088(CCIN:2C1E) GX adapter |
| 穩壓模塊 | ||
|
51CB 74Y5451 |
Processor VRM | |
|
51CC 74Y5453 |
80A memory VRM (C6) | |
|
51CD 74Y5455 |
20A memory VRM (C5) | |
| 硬盤背板 | ||
| 5618 |
2BD5 46K7496 00E0968 |
Disk drive backplane (supports six disk drives, one SATA DVD drive, and one SAS or USB tape drive) |
| 5630 |
2BD6 00E1078 46K7552 |
Disk drive backplane (supports eight disk drives, one SATA DVD drive, and one SAS or USB tape drive) |
| 光驅 | ||
| 5762 |
44V4219 44V4220 |
SATA Slimline DVD-RAM Drive |
| 線纜 | ||
| 6001 |
00G1277 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2127 |
09L0881 09L3305 36R2578 41Y0599 |
Ultra 320 SCSI Cable 10 Meter |
| 2124 |
09L3299 36R2585 41Y0596 |
Ultra 320 SCSI Cable 1 Meter |
| 2125 |
09L3301 36R2576 41Y0597 |
Ultra 320 SCSI Cable 3 Meter |
| 2126 |
09L3303 36R2577 41Y0598 |
Ultra 320 SCSI Cable 5 Meter |
| 2128 |
09L3307 19P1904 36R2579 41Y0600 |
Ultra 320 SCSI Cable 20 Meter |
| 6006 |
09P1251 22R5239 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 1828 |
15R8139 45D2235 |
1.5 Meter 12X to 4X Channel Conversion Cable |
| 1841 |
15R8140 45D2236 |
3 Meter 12X to 4X Channel Conversion Cable |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 6007 |
21F9358 22R5221 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6029 |
21F9359 22R5222 |
Power Control Cable (SPCN 30 meter) |
| 6008 |
21F9469 22R5219 55F4532 74F0188 |
Power Control Cable (SPCN 6 meter) |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 1834 |
39J5642 42R6157 42R6160 |
8.0 Meter 12X Cable |
| 1827 |
39J5836 97P4299 |
3m RIO to RIO-2 Cable |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 1829 |
41V0226 42V2129 |
0.6 Meter 12X Cable |
| 1830 |
41V0227 42R6153 42V3130 |
1.5 Meter 12X cable |
| 2138 |
41Y0601 42D9817 |
0.55 Meter Ultra 320 SCSI Cable |
| 1025 |
42R5087 43L6774 75G3801 87G6236 |
Modem Cable - US Canada and General Use |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 15M |
| 3679 |
42R6751 44V4041 |
SAS Cable (AI)-1M |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 15 M |
| 3686 |
42R6792 44V4161 |
SAS Cable (YI) System to SAS Enclosure, Single Controller Dual Path 1.5M |
| 3687 |
42R6793 44V4162 |
SAS Cable (YI) System to SAS Enclosure, Single Controller Dual Path 3M |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller single path 6M |
| 1840 | 42V2132 | 3.0 Meter 12X Cable |
| 1861 |
44V3421 45D4785 |
0.6 Meter 12X DDR Cable |
| 1862 |
44V3423 45D4786 |
1.5 Meter 12X DDR Cable |
| 1865 |
44V3426 45D2571 45D5271 |
3.0 Meter 12X DDR Cable |
| 3681 |
44V4151 44V8231 |
3M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3682 |
44V4152 44V8230 |
6M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3688 | 44V5132 | SAS Cable (AT 0.6 Meter) |
| 1864 | 45D4788 | 8.0 Meter 12X DDR Cable |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 3656 | 95P4084 | SAS SFF Cable |
| 1111 | CAT5E Ethernet Cable, 3M BLUE | |
| 1112 | CAT5E Ethernet Cable, 10M BLUE | |
| 1115 | CAT5E Ethernet Cable, 3M GREEN | |
| 1116 | CAT5E Ethernet Cable, 10M GREEN | |
| 1118 | CAT5E Ethernet Cable, 3M YELLOW | |
| 1119 | CAT5E Ethernet Cable, 10M YELLOW | |
| 1141 | 1-meter Cable for EXP4500 Switch | |
| 1143 | 3-meter Cable for EXP4500 Switch | |
| 1148 | EX4500 10GB Optical Transceiver | |
| 3288 |
3m (9.8-ft.) IB E'Net 40G Copper Cable QSFP QSFP |
|
| 3289 |
5m QDR IB E'Net Copper Cable QSFP QSFP |
|
| 3290 |
10 meter Quad Data Rate InfiniBand Optical Cable, QSFP QSFP |
|
| 3293 |
30 meter Quad Data Rate InfiniBand Optical Cable, QSFP QSFP |
|
| 3930 | System Serial Port Converter Cable | |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V 10A |
|
| 6460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 |
Power Cord (9-foot To Wall OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6497 |
Power Cord (6-foot) To Wall OEM PDU (250V 10A) Plug Type #10 |
|
| 6498 |
Power Cord (6-foot) To Wall OEM PDU (250V 15A) Plug Type #34 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V 10A |
|
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V 10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V 10A |
|
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 6771 | Two 1M Intra-rack Fibre Channel Cables | |
| 6773 | Two 3M Intra-rack Fibre Channel Cables | |
| EN01 | 1m (3.3-ft), 10GbE'Net Cable SFP+ Act Twinax Copper | |
| EN02 | 3m (9.8-ft) 10GbE'Net Cable SFP+ Act Twinax Copper | |
| EN03 | 5m (16.4-ft) 10GbE'Net Cable SFP+ Act Twinax Copper | |
| 1854 | 10 Meter 12X to 4X Enhanced Channel Conversion Cable | |
| 3287 |
1 meter Quad Data Rate InfiniBand Copper Cable, QSFP QSFP |
|
| 46K4646 | Control panel cable (rack) | |
| 46K4645 | Control panel cable (stand-alone) | |
| 46K5029 | External SAS cable assembly | |
| 導軌 | ||
| 6586 |
10N7683 80P3263 |
Modem Tray for 19-Inch Rack |
| 7145 |
46K5096 46K5097 49Y5312 |
IBM OEM Rack-mount Drawer Rail Kit |
| 7131 | 74Y5140 | IBM Rack-mount Drawer Bezel and Hardware |
| 7841 | Ruggedize Rack Kit | |
|
00E5669 59Y4919 49Y5312 |
Slide rail assembly with 49Y5312 Attaching screw for slide rail assembly | |
| 風扇 | ||
|
6B1D 74Y5220 |
120 mm fan assembly | |
| 74Y5221 | 40 mm Fan assembly on PCIe riser | |
| 44V8326 | Heat sink | |
| 機殼 | ||
| 7318 |
2BFB 46K7505 74Y7445 |
System backplane. |
| 7840 | Side-by-Side for 1.8m Racks | |
| 電池 | ||
|
44V4359 74Y9628 |
Time-of-day battery |
|
