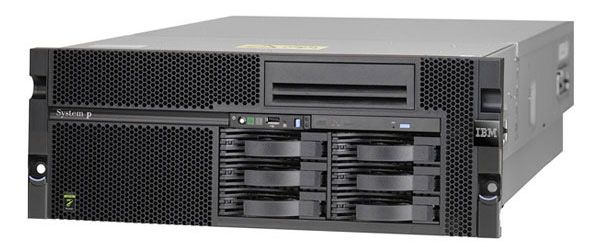

IBM P6 550 (8204-E8A)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 | 2 路，4 路，6 路或 8 路 3.5 GHz 的 64 位 4.2 GHz 或 5.0 GHz 的 POWER6 的處理器。 |
| CPU類型 | POWER6 |
| CPU插槽數 | 4 |
| CPU激活 | 需要對應VPD |
| 硬盤背板 | 最大硬盤背板數量為 2 |
| 最大硬盤數量 | 8 |
| 內存參數 | DDR2 的內存。 |
| 內存容量范圍 | 4GB-256GB |
| 內存插槽數量 | 最大32個，內存插槽在CPU板上，單個CPU板有8個槽位，最多可支持4個CPU板 |
| 內存是否需要激活 | 不需要激活 |
| 電源參數 | 100v 到 127v 或者 200v 到 240v 交流。 |
| 電源數量 | 2 |
| 介質托架 | 1 個薄型和 1 個半高的介質托架。 |
| 適配器插槽 | 2 個 PCI-X 適配器插槽（266 MHz（DDR）的），3 個 PCI Express 8x。 |
| 端口 | 2 個以太網 10/100/1000 Mbps 端口或 4 個以太網 10/100/1000 端口（選件），或 2 個萬兆以太網端口（選件），3 個 USB 端口，2 個 HMC 端口，2 個串口。 |
| I/O適配器 | 3G SAS控制器（內部，可選 RAID）。 |
| I/O擴展 | |
| 發布日期 | 2008/2/29 |
| 下架日期 | 2011/5/27 |
| 服務截止日期 | |
| 操作系統 | AIX V5.3 或者更高版本，IBM i 5.4 或者更高版本，SUSE LinuX Enterprise Server 10 f或 者 POWER™ (SLES10 SP1) 或者更高版本， Red Hat Enterprise LinuX 4.5 f或 者 POWER (RHEL4.5) 或者更高版本，RHEL5.1 或者更高版本 。 |
| 產品尺寸 | 桌面型：21.3"高 x 7.2-11.1"寬 x 30.6"深（540 毫米 x 183-283 毫米 x 778毫米），機架擴展籠：6.9"高（4U） x 17.3"寬 x 28.7"深（175毫米x 440毫米 x 730毫米）。 |
| 產品重量 | 桌面型：54.4 千克（120.0 磅），機架擴展籠：54.4 千克（120.0 磅） |
| FC號 | PN號 | 描述 |
| CPU | ||
| 4965 |
07P6793 46K6587 46K6765 46K7060 46K7590 |
2-core 3.5GHz POWER6 Processor Card |
| 4966 |
10N9377 10N9725 46K6595 46K6769 46K7066 46K7593 46K7594 |
2-core 4.2GHz POWER6 Processor Card |
| 4967 |
10N9380 46K7401 46K7817 |
2-core 5.0 GHz POWER6 Processor Card |
| 硬盤 | ||
| 1793 | 177GB SFF-2 SSD w/eMLC (AIX/Linux) | |
| 1882 |
42R5661 42R8390 42R8392 46V6830 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426 44V4427 44V4428 44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833 44V6831 44V6833 44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843 44V6845 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
|
1890 1909 |
58B0 44V6817 44V6821 44V8674 |
69GB SFF SAS Solid State Drive |
| 1917 | 146GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux) | |
| 1925 | 300GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux) | |
| 3279 |
03N5284 03N5285 03N5766 03N6349 03N6350 26K5182 26K5282 26K5532 26K5567 80P3402 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive Carrier |
| 3586 |
58B0 44V6819 44V8673 |
69GB 3.5" SAS Solid State Drive |
| 3646 |
10N7199 10N7200 10N7230 42R4233 |
73 GB 15K RPM SAS Disk Drive |
| 3647 |
10N7203 10N7204 10N7232 42R4234 |
146 GB 15K RPM SAS Disk Drive |
| 3648 |
10N7207 10N7208 10N7234 42R5648 |
300 GB 15K RPM SAS Disk Drive |
| 3649 |
44V4432 44V4433 44V4438 44V4440 |
450 GB 15K RPM SAS Disk Drive |
| 4327 |
26K5176 36K5537 39J1469 39J3696 39J3699 42C0216 42C0256 43L9028 53P3240 53P3360 97P2930 97P2991 97P3031 |
70.56GB 15k rpm Disk Unit |
| 3278 |
00P2684 00P2685 00P5260 03N5279 03N5280 03N6344 03N6345 26K5180 26K5280 26K5531 55P4103 80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 內存 | ||
| 4520 | 77P6497 | 1GB (2x512MB) RDIMMs, 667MHz, 512MB DRAM |
| 4521 | 77P6498 | 2GB (2x1GB) RDIMMs, 667MHz, 512MB DRAM |
| 4522 | 77P6499 | 4GB (2x2GB) RDIMMs, 667MHz, 512MB DRAM |
| 4523 | 77P6500 | 8GB (2x4GB) RDIMMs, 667MHz, 512MB Stacked DRAM |
| 4532 | 77P8030 | 4GB (2x2GB) RDIMMs, 667MHz, 1Gb DRAM |
| 電源 | ||
| 7707 |
44V3559 44V4951 44V7292 |
Power Supply, 1700 Watt AC, Hot-swap, Base and Redundant |
| 7708 | Power Supply, 1700 Watt DC, Hot-swap, Base and Redundant | |
| 51C4 | 42R6607 | 1700 W dc power supply (8204-E8A) |
| 系統板 | ||
| 46K6726 | System backplane, 3.5 and 4.2 GHz processor | |
| 46K7761 | System backplane, 3.5, 4.2, and 5.0 GHz processor | |
| 磁帶機 | ||
| 5907 |
18P7912 21F8763 23R2528 23R2530 59H3465 59H4456 59H4457 59H4458 |
36/72GB 4mm DAT72 SAS Tape Drive |
| 5619 | 80/160GB DAT160 SAS Tape Drive | |
| 5746 |
24R1922 35L2086 45E1126 45E1127 45E1129 95P4436 95P4450 96P1203 |
Half High 800GB/1.6TB LTO4 SAS Tape Drive |
| 5661 |
46C1932 46C1933 |
DAT320 160/320 GB Tape Drive |
| 磁帶 | ||
| 5689 | 23R5635 | DAT160 Data Cartridge |
| 5747 | IBM LTO Ultrium 4 800 GB Data Cartridge | |
| 網卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5707 |
00P4290 00P6132 03N6973 05N6768 10N8587 11P3847 12R9314 15R7536 53P5450 80P4024 80P6451 80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 | 4-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5768 |
05H6768 10N6846 11P3847 12R9314 15R7536 46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 5772 |
576E 05N6768 10N9034 11P3847 12R9314 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5769 |
05N6768 10N9505 11P3847 12R9314 46K7897 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5767 |
10N6845 10N7405 46K6601 |
2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter |
| 5717 |
10N7405 10N8556 46Y3512 |
4-Port 10/100/1000 Base-TX PCI Express Adapter |
| 5732 |
45D4771 46K6696 46K7899 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 光纖卡 | ||
| 5758 |
280D 03N5012 03N5014 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5761 |
03N5012 03N5014 03N5016 46K6838 46K6840 |
PCI-X Fibre Channel Tape Ctlr |
| 5760 |
03N5014 3N5016 46K6838 46K6840 |
PCI-X Fibre Chan Disk Ctlr |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 |
03N6058 30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5773 |
05N6768 10N7249 44P3847 12R9314 15R7536 |
4 Gigabit PCI Express Single Port Fibre Channel Adapter |
| 5774 |
05N6768 10N7255 11P3847 12R9314 15R7536 |
4 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5735 |
577D 05N6768 10N9824 11P3847 12R9314 46C7006 |
8 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5708 |
2B3B 05N6768 11P3847 12R9314 46K8088 |
10Gb FCoE PCIe Dual Port Adapter |
| RAID卡 | ||
| 5912 |
572A 44V4413 4V4414 44V5195 44V8579 |
PCI-X DDR Dual - x4 SAS Adapter |
| 5922 |
11P1347 11P3897 |
Non-paired SAS RAID indicator |
| 5583 |
39J1702 40N9889 42R4053 42R4460 42R4560 42R5130 42R5133 42R8305 44V3478 44V3481 44V4733 64P1383 97P6130 |
5777 Ctlr w/Aux Write Cache, Cache battery pack 39J5554.The 5583 includes an IOPless, 5777 PCI-X Quad-Channel Ultra320 SCSI RAID Adapter and a CCIN 574F auxiliary-write cache IOA. 5583 provide RAID 5 or RAID 6 capability. |
| 5776 |
571B 39J2012 39J3534 39J5024 42R4855 42R8739 44V5587 97P4152 97P4847 |
PCI-X DASD Controller-90MB No IOP, Cache battery pack 39J5555. |
| 5777 |
40N9889 42R4460 42R5130 42R8305 44V3478 44V4013 44V4733 97P6130 |
PCI-X Disk Ctlr-1.5GB No IOP |
| 5902 |
572B 44V4203 44V5194 97P4847 |
PCI-X DDR Dual-x4 3Gb SAS RAID Adapter, Cache battery pack 39J5555. |
| 5778 |
42R3867 42R6579 44V3480 39J0273 39J5909 42R3867 42R3965 42R3969 42R4226 42R4227 42R4280 42R5261 42R6011 42R6578 42R6579 44V3306 44V3480 44V4608 44V5817 74Y5665 |
PCI-X EXP24 Ctl-1.5GB No IOP |
| 5782 |
42R3867 42R6579 44V3480 39J0273 39J5909 42R3867 42R3965 42R3969 42R4226 42R4227 42R4280 42R5261 42R6011 42R6578 42R6579 44V3306 44V3480 44V4608 44V5817 74Y5665 |
PCI-X EXP24 Ctl-1.5GB No IOP |
| 5904 |
42R3965 42R3969 44V4577 44V4579 44V5193 44V5193 44V8622 46K4734 46K6114 74Y5665 |
PCI-X DDR 1.5GB Cache SAS RAID Adapter |
| 5908 |
42R3965 42T3969 44V4577 44V4579 44V5193 44V8622 46K4734 46K6114 74Y5665 |
PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC) |
| 5679 |
42R4635 44V3139 44V3140 44V3298 44V4145 44V4192 44V4734 44V5554 44V6093 46K6109 74Y5667 |
SAS RAID Enablement |
| 5900 |
42R7988 42R7989 44V3296 44V4266 44V4404 |
PCI-X DDR Dual - x4 3Gb SAS Adapter |
| 5903 |
574E 44V4198 44V7436 44V7597 74Y6124 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
| 5805 | PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter | |
| 5921 | Non-paired PCIx SAS RAID Indicator | |
| 5923 | Non-paired PCIe SAS RAID Indicator | |
| SCSI卡 | ||
| 5901 |
57B3 44V4852 44V8580 45K4732 |
PCIe Dual-x4 SAS Adapter |
| 5736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5806 | PCI-X DDR Dual Channel Ultra320 SCSI Adapter | |
| 顯卡 | ||
| 2848 |
00P2526 00P2530 00P5756 00P5758 09P3209 09P5074 09P5269 09P5758 80P4527 |
PCI 2D Entry Graphics Adptr |
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 5748 | 10N7756 | POWER GXT145 PCI Express Graphics Accelerator |
| 適配卡 | ||
| 6312 |
00P3119 10N7380 87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 6805 |
21P5267 39J2298 53P1677 |
PCI 2-Line WAN IOA No IOP |
| 6833 |
21P5289 39J2282 39J2283 44V5116 53P0708 |
PCI 2-Line WAN w/Modem NoIOP |
| 2844 |
52G4337 21P6018 39J1719 39J3242 39J5013 43L9059 97P2694 |
PCI IOP |
| 6808 |
21P8186 39J2290 44V5110 97P5638 |
PCI 4-Modem WAN IOA No IOP |
| 2893 |
26P1139 42R5678 42R8192 26P1139 42R5678 42R8192 44V5323 |
PCIe 2-Line WAN w/Modem |
| 2847 |
39J2513 39J2894 39J4035 42R6471 |
PCI IOP for SAN Load Source |
| 4807 |
45D5803 45D6680 45D7948 |
PCIe Crypto Coprocessor No BSC 4765-001 |
| 4808 |
45D5803 45D6680 45D7948 |
PCIe Crypto Coprocessor Gen3 BSC 4765-001 |
| 2728 |
57D1 46K6692 46K7494 |
4 port USB PCIe Adapter |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus |
| 5785 |
57D2 42R5143 46K6734 46K6735 6298965 |
4 Port Async EIA-232 PCIe Adapter |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 穩壓模塊 | ||
| 44V5183 | Memory Voltage regulator 95 A (VRM1A, VRM1B) | |
| 2A2C |
42R6498 42R8609 |
Voltage regulator 30 A (VRM2) |
| 光驅 | ||
| 4430 |
04N2569 04N5276 04N5966 04N5968 17P8966 18P7250 18P8166 19P0484 19P0489 53P2646 |
DVD-ROM |
| 4630 |
04N2569 04N5276 04N5966 04N5968 18P7250 18P8166 19P0484 19P0489 53P2646 |
DVD-ROM |
| 4633 |
18P8166 39J2145 39J2146 39J4797 39J5777 39J5778 97P3713 97P3714 97P6887 97P6888 |
DVD-RAM |
| 5757 |
18P8166 39J5771 39J5772 42R7969 42R7970 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 5756 |
39J5773 39J5774 42R5292 42R5293 |
IDE Slimline DVD-ROM Drive |
| 5762 |
44V4219 44V4220 |
SATA Slimline DVD-RAM Drive |
| 5743 |
44V4223 44V4224 |
SATA Slimline DVD-ROM Drive |
| 3706 | DVD-ROM | |
| 線纜 | ||
| 6001 |
00G1277 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 | Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 3146 |
00P3237 09P2631 21P5454 39J2562 44V5140 |
RIO-2(Remote I/O-2Cbl 1.2M |
| 3147 |
00P3238 09P2632 31P6131 39J2554 43L8981 53P2676 |
RIO-2(Remote I/O-2Cbl 3.5M |
| 3148 |
00P3239 09P2633 21P5456 39J2561 43L8982 |
RIO-2 (Remote I/O-2) Cable, 10M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 3156 |
00P5238 03N5867 |
RIO-2 (Remote I/O-2 Cable 1.75M) |
| 3168 |
00P5239 03N5866 |
RIO-2 (Remote I/O-2 Cbl 2.5M |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 1462 |
04N7014 39J5822 44H9137 97H7491 |
15m RIO Cable |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2877 |
08L1215 42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 2127 |
09L0881 09L3305 36R2578 41Y0599 |
Ultra 320 SCSI Cable 10 Meter |
| 2124 |
09L3299 36R2585 41Y0596 |
Ultra 320 SCSI Cable 1 Meter |
| 2125 |
09L3301 36R2576 41Y0597 |
Ultra 320 SCSI Cable 3 Meter |
| 2126 |
09L3303 36R2577 41Y0598 |
Ultra 320 SCSI Cable 5 Meter |
| 2128 |
09L3307 19P1904 36R2579 41Y0600 |
Ultra 320 SCSI Cable 20 Meter |
| 6006 |
09P1251 22R5239 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 1828 |
15R8139 45D2235 |
1.5 Meter 12X to 4X Channel Conversion Cable |
| 1841 |
15R8140 45D2236 |
3 Meter 12X to 4X Channel Conversion Cable |
| 1842 |
15R8141 45D2237 |
10 Meter 12X to 4X Channel Conversion Cable |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 6007 |
21F9358 22R5221 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 1466 |
21F9359 22R5222 |
30m SPCN Cable |
| 6029 |
21F9359 22R5222 |
Power Control Cable (SPCN 30 meter) |
| 6008 |
21F9469 22R5219 55F4532 74F0188 |
Power Control Cable (SPCN 6 meter) |
| 1461 |
21H7643 24L1791 39J5834 44H8873 97H7490 |
6m Copper HSL Cable |
| 1485 |
21P5457 39J2560 43L9026 |
Remote I/O Cable, 15M |
| 1475 |
21P5458 39J2551 53P5245 |
10m RIO to RIO-2 Cable |
| 1474 |
21P5477 39J2559 43L8978 |
6m RIO to RIO-2 Cable |
| 1460 |
23L3080 39J5833 44L0005 |
3m Copper RIO Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232/V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 /EIA-232 |
| 1487 |
39J2552 53P5243 |
3m HSL to HSL-2 Cable |
| 1834 |
39J5642 42R6157 42R6160 |
8.0 Meter 12X Cable |
| 1019 |
39J5813 75G3807 |
Modem Cable - Australia |
| 1020 |
39J5817 75G3808 |
Modem Cable - HK/NZ |
| 1827 |
39J5836 97P4299 |
3m RIO to RIO-2 Cable |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 2114 |
40H6603 52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 1829 |
41V0226 42V2129 |
0.6 Meter 12X Cable |
| 1830 |
41V0227 42R6153 42V3130 |
1.5 Meter 12X cable |
| 2138 |
41Y0601 42D9817 |
0.55 Meter Ultra 320 SCSI Cable |
| 1025 |
42R5087 43L6774 75G3801 87G6236 |
Modem Cable - US/Canada and General Use |
| 3668 | 42R5751 | SAS Cable, DASD Backplane to Rear Bulkhead |
| 3657 |
42R5815 46K5450 |
Right Angle SAS Tape Drive Cable |
| 1843 | 42R6064 | Op Panel Cable for Deskside System w/3.5" DASD |
| 1877 | 42R6066 | Op Panel Cable for Rack-mount Drawer w/3.5" DASD |
| 1878 |
42R6067 42R6069 44V7190 |
Op Panel Cable for Rack-mount Drawer w/2.5" DASD |
| 1856 |
42R6068 44V7191 |
Op Panel Cable for Deskside System w/2.5" DASD |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller/Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/Dual Path 15M |
| 3679 |
42R6751 44V4041 |
SAS Cable (AI)-1M |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller/Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 15 M |
| 3686 |
42R6792 44V4161 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 1.5M |
| 3687 |
42R6793 44V4162 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 3M |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller/single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller/single path 6M |
| 1840 | 42V2132 | 3.0 Meter 12X Cable |
| 1861 |
44V3421 45D4785 |
0.6 Meter 12X DDR Cable |
| 1862 |
44V3423 45D4786 |
1.5 Meter 12X DDR Cable |
| 1865 |
44V3426 45D2571 45D5271 |
3.0 Meter 12X DDR Cable |
| 3681 |
44V4151 44V8231 |
3M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3682 |
44V4152 44V8230 |
6M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3688 | 44V5132 | SAS Cable (AT 0.6 Meter) |
| 3669 | 44V5252 | SAS Cable, DASD Backplane (Split) to Rear Bulkhead |
| 1864 | 45D4788 | 8.0 Meter 12X DDR Cable |
| 2424 | 52G4291 | 0.6M 16-bit SCSI-2 System to System Cable |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 /EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 3656 | 95P4084 | SAS SFF Cable |
| 1111 | CAT5E Ethernet Cable, 3M BLUE | |
| 1112 | CAT5E Ethernet Cable, 10M BLUE | |
| 1113 | CAT5E Ethernet Cable, 25M BLUE | |
| 1115 | CAT5E Ethernet Cable, 3M GREEN | |
| 1116 | CAT5E Ethernet Cable, 10M GREEN | |
| 1117 | CAT5E Ethernet Cable, 25M GREEN | |
| 1118 | CAT5E Ethernet Cable, 3M YELLOW | |
| 1119 | CAT5E Ethernet Cable, 10M YELLOW | |
| 1121 | CAT5E Ethernet Cable, 25M YELLOW | |
| 3655 | SAS HH Cable | |
| 6458 | Power Cable- Drawer to IBM PDU 14-foot 250V/10A | |
| 6460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 | Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 | |
| 6472 | Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 | |
| 6473 | Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 | |
| 6474 | Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 | |
| 6475 | Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 | |
| 6476 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 | |
| 6477 | Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 | |
| 6478 | Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 | |
| 6479 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 | |
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 | Power Cord (9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 | |
| 6493 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 | |
| 6494 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 | |
| 6495 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 | |
| 6496 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 | |
| 6497 | Power Cord (6-foot) To Wall/OEM PDU (250V 10A) Plug Type #10 | |
| 6651 | Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 | |
| 6659 | Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 | |
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6665 | Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A | |
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 | Power Cord (9-foot) Drawer to IBM PDU 250V/10A | |
| 6672 | Power Cord (5-foot) Drawer to IBM PDU 250V/10A | |
| 6680 | Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated | |
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 1854 | 10 Meter 12X to 4X Enhanced Channel Conversion Cable | |
| 導軌 | ||
| 6586 |
10N7683 80P3263 |
Modem Tray for 19-Inch Rack |
| 7360 |
39J4530 42R7686 44V4930 44V5078 |
IBM Rack-mount Drawer Bezel and Hardware |
| 7146 |
39R6550 42R8278 42R8279 44V3349 44V3352 |
IBM/OEM Rack-Mount Drawer Rail Kit |
| 7359 | 42R7686 | OEM Rack-mount Drawer Bezel and Hardware |
| 7841 | Ruggedize Rack Kit | |
| 機殼 | ||
| 7840 | Side-by-Side for 1.8m Racks | |
| 電池 | ||
|
39J5554 97P4846 |
IBM Li-ion Cache Battery |
