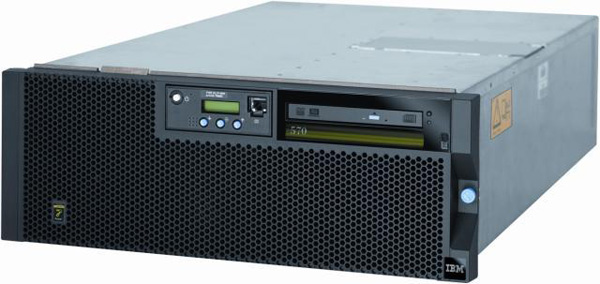

IBM P5 570 (9117-570)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 | 2 路，4 路，8 路，12 路，或 16 路的 1.5 GHz 或 1.65 GHz 或 1.9 GHz 的 POWER5 處理器內核 |
| CPU類型 | POWER5 |
| CPU插槽數 | 單個柜子可支持2個CPU板，最多支持4個柜子連接，最多支持8個CPU板 |
| CPU激活 | CPU需對應VPD卡，不對應可導致VPD卡鎖死，只能認出一路CPU |
| 硬盤背板 | 單個柜子硬盤背板數量為 1 |
| 最大硬盤數量 | 6 |
| 內存參數 | 內存插槽在CPU板上，單個CPU板有8個內存槽位，最多支持32個槽位 |
| 內存容量范圍 | 2GB-64GB |
| 內存插槽數量 | 單個CPU板8個，最多32個 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 100v 到 127v，或者 200v 到 240v 交流。 |
| 電源數量 | 單個柜子2個，最多8個 |
| 介質托架 | 2 個熱插超薄型。 |
| 適配器插槽 | 6 個熱插拔的 PCI-X 適配器插槽。 |
| 端口 | 每個構建塊集成的 2 端口 10/100/1000 以太網，2 個千兆光纖通道，萬兆以太網和 1 個 4x InfiniBand 適配器，2 個 USB 端口，2 個 HMC 端口和 2 個串口。 |
| I/O適配器 | 每個構建塊雙通道 Ultra320 SCSI 控制器（內部可選 RAID）。 |
| I/O擴展 | |
| 發布日期 | 2004/8/31 |
| 下架日期 | 2008/8/29 |
| 服務截止日期 | |
| 操作系統 | AIX 5L V5.2 或者更高版本，SUSE LINUX Enterprise Server 9 f或者 POWER (SLES 9) 或者更 高版本，Red Hat Enterprise LinuX AS 4 f或者 POWER (RHEL AS 4) 或者更高版本。 |
| 產品尺寸 | 6.85"高 (4U) x 17.2"寬 x 26.5"長 (174.1 毫米 x 437 毫米 x 673 毫米)。 |
| 產品重量 | 140.0 磅（63.6 千克）。 |
| FC號 | PN號 | 描述 |
| CPU | ||
|
7832 26D9 26EB |
03N4478 03N5695 03N5698 03N5803 03N5804 80P5000 80P5171 80P5246 80P5247 80P5249 80P5250 80P6823 80P6826 80P7081 80P7082 |
2-Way 1.9 GHz POWER5 CUoD Processor Card, 0-Way Active, 8 DDR1 Memory DIMM Slots |
|
7833 26DA 29AB |
03N4514 03N4518 03N4519 03N5819 03N5820 80P5371 80P5374 80P5378 80P6829 80P6832 |
2-Way 1.9GHz POWER5 CUoD Processor Card, 0-Way Active, 8 DDR2 Memory DIMM Slots |
|
7834 26EF |
03N5689 03N5801 80P4998 80P5161 80P5162 80P5240 80P5241 80P7079 |
2-Way 1.5GHz POWER5 Processor Card, 0-Way Entitled, 8 DDR1 Memory DIMM Slots |
|
7830 26F2 |
03N5692 03N5802 03N7100 80P4995 80P5166 80P5167 80P5243 80P5244 80P6811 80P6814 80P7080 |
Processor,0 2 Way 1.65GHz with DDR1 memory |
|
8338 53C9 |
10N7106 10N7111 10N8013 39J4646 39J4647 |
2-Way 2.2GHz POWER5+ Processor Card, 0-way active, 8 DDR2 Memory Slots |
| 7782 |
53C8 10N7709 10N7721 10N8011 10N8589 39J4338 39J4649 42R5230 42R5232 |
2-Way 1.9GHz POWER5+ Processor Card, 0-way active, 8 DDR2 Memory Slots |
| 許可協議 | ||
| 7665 | One way Processor Activation for Processor FC 7782 | |
| 7666 | 30 Days Prepaid Reserve Capacity for one 1.9GHz Processor on FC 7782 | |
| 硬盤 | ||
| 3273 |
00P2676 00P3068 00P3831 08K0293 26K5188 26K5288 |
36.4 GB 80pin Ultra320 10K SCSI Disk Drive Assembly |
| 3274 |
00P2672 00P3072 00P3811 00P3833 03N5260 03N6325 08K0283 26K5191 26K5291 26K5533 |
73.4GB 10K RPM U320 LVD 80-pin SCSI Disk Drive Carrier ST373307LC |
| 3275 |
00P2664 00P2665 00P3834 00P3835 03N5264 03N5265 03N6330 08K0273 26K5194 26K5294 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive Carrier ST3146807LC |
| 3277 |
00P2692 00P2693 03N5275 03N6339 03N6340 07N6771 09P3631 26K5178 26K5278 26K5530 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 3279 |
03N5284 03N5285 03N5766 03N6349 03N6350 26K5182 26K5282 26K5532 26K5567 80P3402 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive Carrier |
| 3578 |
03N5270 03N5764 03N6335 26K5196 26K5296 26K5535 26K5565 71P7552 80P3157 80P3400 93N5270 |
300G 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3278 |
00P2684 00P2685 00P5260 03N5279 03N5280 03N6344 03N6345 26K5180 26K5280 26K5531 55P4103 80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3585 |
10N7195 10N7211 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| 內存 | ||
| 4494 |
12R7631 12R9264 |
16 GB (4x4GB) DIMMs, 208-pin, 200MHz, Stacked DDR1SDRAM |
| 7049 |
12R7634 12R9262 |
8 16GB (4x4GB) DIMMs, CUoD, 8GB Active, 200 MHz DDR1 |
| 4499 |
314A 12R8467 |
16GB (4X4GB) DIMMs, 276 pin, 400MHz DDR2 SDRAM |
| 4498 | 12R8468 | 32GB (4X8GB) DIMMs, 276 pin, 400MHz DDR2 SDRAM |
| 7892 |
30F0 12R8540 16R1521 |
2GB (4x512MB) DIMMs, 276-pin, 533 MHz DDR2 SDRAM |
| 4490 |
12R8616 53P3228 |
4 GB (4x1GB) DIMMs, 208-pin, 266MHz, Stacked DDR1 SDRAM |
| 4497 |
312F 12R8994 |
16GB (4X4GB) DIMMs, 276 PIN, 533 MHz, DDR2 SDRAM |
| 4452 |
09P2706 12R9240 53P1626 53P3226 |
2GB (4x512MB) DIMMs, 208-pin, 266MHz DDR1 SDRAM |
| 7890 |
12R9243 12R9253 16R0713 |
4 8GB (4x2GB) DIMMs, CUoD, 4GB Active, 266MHz DDR1 |
| 4492 |
12R9269 16R1221 |
32 GB (4x8GB) DIMMs, 208-pin, 200MHz, Stacked DDR1 SDRAM |
| 4491 |
12R9278 44P3960 |
16 GB (4x4GB) DIMMs, 208-pin, 266MHz, Stacked DDR1 SDRAM |
| 4496 |
314E 12R9574 |
8 16GB (4X4GB) DIMMs, 276 PIN, 533 MHz DDR2 SDRAM |
| 7893 |
30F2 16R0233 12R8544 |
4GB (4x1GB) DIMMs, 276-pin, 533MHz DDR2 SDRAM |
| 7894 |
30F3 16R1530 |
8 GB (4x2GB) DIMMs, 276-pin, 533MHz DDR2 SDRAM |
| 4495 |
316F 41V0128 |
4 8GB (4X2GB) DIMMS, 276 PIN 533 MHz, DDR2 SDRAM |
| 4454 |
53P3232 12R9259 |
8GB (4x2GB) DIMMs, 208-pin, 266MHz Stacked DDR1 SDRAM |
| 電源 | ||
| 7888 |
39J2779 97P5676 |
AC Power Supply, 240V, 1400 W |
| 系統板 | ||
| 7881 |
28EA 03N6355 03N6603 10N8505 17P8787 17P8788 17P8843 22R6221 23R2035 32N1308 32N1383 80P3901 80P5319 80P5560 80P6027 |
Service Processor |
| 7865 | Processor Enclosure And Backplane | |
|
7866 28DA |
42R5104 39J3748 |
I O Backplane, 6 PCI-X Slots |
|
7867 27AE |
10N7272 03N4920 |
System Midplane |
| 7870 | Power Distribution And Backplane. | |
| 網卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 4962 |
00G2380 00P3056 03N6070 09P3196 09P5023 44P0321 |
10 100 Mbps Ethernet PCI Adapter II Type A-E |
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5707 |
00P4290 00P6132 03N6973 05N6768 10N8587 11P3847 12R9314 15R7536 53P5450 80P4024 80P6451 80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 |
4-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5718 |
03N6969 05N6768 11P3847 12R9314 15R7536 16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 5719 |
03N6971 12R6249 12R9315 80P4066 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 光纖卡 | ||
| 5758 |
280D 03N5012 03N5014 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 |
03N6058 30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B 03N6441 03N7069 05N6768 10N8622 11P3847 12R9314 15R7536 80P4543 80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| RAID卡 | ||
| 5728 |
39J1307 39J3538 39J5652 44V4410 |
Dual Channel SCSI RAID Enablement Card, Cache battery pack 42R8606. |
| 5737 |
571B 39J2012 39J3534 39J5024 42R4855 42R8739 44V5587 97P4152 97P4847 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. |
| 5703 |
39J5105 44V3319 53P3880 80P2696 97P2702 97P3960 97P6516 97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| SCSI卡 | ||
| 6204 |
03N3266 11K0671 |
PCI Universal Differential Ultra SCSI Adapter |
| 5736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5712 |
44V3315 53P0978 97P2686 97P2687 97P3359 97P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 顯卡 | ||
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 適配卡 | ||
| 4959 |
00P1476 03N3554 03N5554 04H7648 09P4146 55F4896 |
IBM Token-Ring PCI Adapter |
| 2947 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3620 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 1800 |
10N9921 39J0792 97P3751 97P6219 |
RIO-2 Remote I O Loop Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 7861 |
21P8332 97P4918 |
PCI Blind Swap Cassette Kit, Single Wide Short Adapters, Type II |
|
7878 25F8 |
39J0780 97P4214 |
System Port Riser Card |
| 1810 |
39J2069 39J3781 42R5833 |
GX Dual-port 4x HCA |
| 2962 |
00P5920 33F8985 40F9904 41L5233 41L4235 41L5795 52G3379 73H2508 93H3662 93H5261 93H5270 93H6068 93H6086 00P5920 41L5233 41L5235 41L5795 |
2-Port Multiprotocol PCI Adapter |
| 7997 | System Service Processor | |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232 RS-422, PCI bus |
| 2944 |
43G0926 43G0938 93H6544 93H6545 93H8917 |
128-Port Asynchronous Controller, PCI bus |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 03N6018 | VPD card. | |
| 穩壓模塊 | ||
| 7768 |
39J0473 39J2557 42R7629 97P5678 |
processor power regulator |
| 硬盤背板 | ||
| 7868 |
28DB 03N4801 80P4812 |
Ultra320 SCSI 6-pack Backplane |
| 光驅 | ||
| 2640 |
00P4774 00P4775 03N5907 03N5908 39J1365 39J3522 39J3529 42R5290 42R5291 51P1834 97P5623 97P5624 |
4.7GB 8X 24X IDE Slimline DVD-ROM Drive |
| 5751 |
18P8166 39J1364 39J3531 39J3804 39J3805 39J3808 39J3809 39J5769 39J5770 97P3692 97P3693 97P6883 97P6884 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 線纜 | ||
| 6001 |
00G1277 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 3146 |
00P3237 09P2631 21P5454 39J2562 44V5140 |
RIO-2(Remote I O-2Cbl 1.2M |
| 3147 |
00P3238 09P2632 31P6131 39J2554 43L8981 53P2676 |
RIO-2(Remote I O-2Cbl 3.5M |
| 3148 |
00P3239 09P2633 21P5456 39J2561 43L8982 |
RIO-2 (Remote I O-2) Cable, 10M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 3156 |
00P5238 03N5867 |
RIO-2 (Remote I O-2 Cable 1.75M) |
| 3168 |
00P5239 03N5866 |
RIO-2 (Remote I O-2 Cbl 2.5M |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 4353 | 03N3493 | H-100 Bus 8-position Cable |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2877 |
08L1215 42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 6006 |
09P1251 22R5239 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 6007 |
21F9358 22R5221 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6029 |
21F9359 22R5222 |
Power Control Cable (SPCN 30 meter) |
| 6008 |
21F9469 22R5219 55F4532 74F0188 |
Power Control Cable (SPCN 6 meter) |
| 1836 |
21P8318 26R0847 26R0848 42R6245 44V5083 |
8 meter 4x Cable |
| 1835 |
26R0813 42R6244 44V5082 97P6113 |
3 meter 4x Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 1857 |
39J0419 39J0621 39J0621 39J1740 39J1740 42R6178 42R6178 97P3870 97P3870 |
SP Flex Cable, Two-Drawer System |
| 1858 |
39J0420 39J1741 42R6179 97P3872 |
SP Flex Cable, Three-Drawer System |
| 1859 |
39J0421 39J1742 42R6180 97P3874 |
SP Flex Cable, Four-Drawer System |
| 1839 |
39J4319 42R6243 44V5081 |
1.5 meter 4x Cable |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 2114 |
40H6603 52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 15M |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 15 M |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller single path 6M |
| 8132 |
43F0936 43F0937 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 |
43G0935 51G8610 |
RJ-45 to DB-25 Converter Cable |
| 8131 |
43G0937 51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 2424 | 52G4291 | 0.6M 16-bit SCSI-2 System to System Cable |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 4693 | 53P2231 | Rack Beacon Junct Box Cable |
| 4691 | 53P2237 | Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 | Rack Status Beacon Cable Junction Box Daisy Chain |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V 10A |
|
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 |
Power Cord (9-foot To Wall OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V 10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V 10A |
|
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 導軌 | ||
| 7164 |
IBM OEM Rack-mount Drawer Rail Kit - Adjustable Depth |
|
| 7165 | OEM Rack-mount Drawer Rail Kit | |
| 風扇 | ||
|
53P5030 53P5070 39J0859 |
Fan set | |
| 電池 | ||
| 39J5555 | Cache battery pack for RAID card 571B, 1913, or 5737. | |
| 42R8606 | Cache battery pack 42R8606 for FC 5728. | |
| 其他 | ||
| 3628 |
04N7160 04N7168 04N7170 04N7172 04N7177 04N7529 04N7532 04N7589 61H0226 |
IBM P260 P275 Color Monitor, Business Black, and Cable |
| 3635 |
04N7526 04N7527 04N7532 06P3812 13F9959 22P4525 22P4526 22P4530 22P4532 22P4534 22P4535 22P4536 31P9260 |
T210 Flat-Panel Monitor |
| 3637 |
04N7526 04N7527 04N7532 13F9959 31P7507 31P7509 31P7511 31P7513 31P7515 |
IBM T541H L150p 15" TFT Color Monitor |
| 3627 |
04N7526 04N7527 04N7532 22P6672 61H3600 61H3610 61H3611 61H3613 61H3620 |
IBM P76 P77 Color Monitor, Business Black, Captured Cable |
| 8136 |
09P4095 09P4096 40H2588 40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 6598 |
12R7457 64P1426 |
Disk Slot Fillers (Quantity 4) |
| 3639 |
13F9959 31P9575 31P9577 31P9584 31P9587 31P9590 73P0261 |
L180P TFT 17" Color Display |
| 7862 |
21P8331 97P5663 |
Blind Swap Cassette (Long) |
| 7863 |
21P8333 44V5205 97P6483 |
Blind Swap Cassette (Double) |
| 3638 |
22P4543 73P2310 73P2311 73P2313 73P2316 |
C220P 21" Color Monitor |
| 3636 |
31P9263 31P9264 31P9265 31P9266 |
L200P Flat Panel Monitor |
| 3645 |
39Y9919 40k5342 |
IBM T117 Flat Panel Monitor |
| 3641 |
40K7317 40K5341 73P4360 |
T115 TFT 15" Color Display |
| 265 | AIX Partition Specify | |
| 1846 | Operator Panel | |
| 3640 | L171P TFT 17" Black Display | |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5001 | Customer Solution Center | |
| 5983 | USB Keybd-US English Euro | |
| 2591 |
03N4962 33P3339 52P8634 |
Ext 1.44GB Diskette Drive |
| 7305 | SDI Software Pre-Install Indicator | |
| 7942 | Advanced POWER Virtualization | |
| 9004 | Southern Hemisphere Designator for Monitors | |
| 9300 | Language Group Specify - US English | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 5005 | software preinstall | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 7879 | System Drawer Enclosure | |
| 7875 | Processor Power Regulator | |
| 9570 |
1039570 1381584 |
Reserved Rack Space Indicator - 4U |
| 7300 |
System Drawer Enclosure w Bezel |
|
|
7869 28DC |
03N4808 10N7767 80P4556 |
Media Enclosure And Backplane |
| 28D4 |
10N9964 39J3272 97P4940 |
Control panel |
