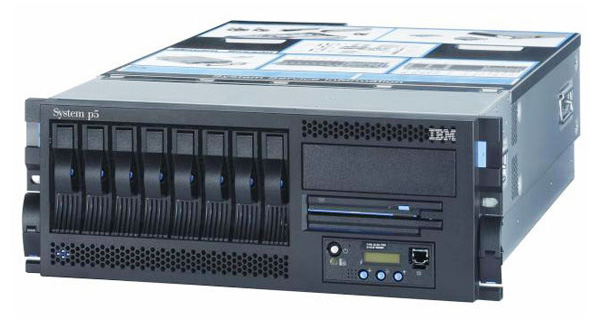

IBM P5 52A (9131-52A)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 |
1 路或 2 路 64 位 1.9 或 2.1 GHz 的 POWER5+ 處理器， 或 1 路、2 路或 4 路 64 位 1.5 或 1.65 GHz POWER5+ 處理器, CPU 集成在主板上，如果需要升級，CPU 需要隨著主板一起更換。 |
| CPU類型 | POWER5+ |
| CPU插槽數 | 1 |
| CPU激活 | 需要VPD |
| 硬盤信息 | 最大硬盤背板數量為 2 |
| 最大硬盤數量 | 8 |
| 內存參數 | 插槽在主板上，528MHz DDR2 的內存 |
| 支持內存容量范圍 | 1GB-32GB |
| 內存插槽數量 | 8 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 100v 到 127v，或者 200v 到 240v 交流 |
| 電源數量 | 2 |
| 介質托架 | 2 個細線電纜和 1 個標準的托架。 |
| 適配器插槽 | 6 個 PCI-X 適配器插槽（2 個 66 兆赫，3 個 133 兆赫，1 個 266 兆赫（DDR））。 |
| 端口 | 2 個以太網 10/100/1000 Mbps 端口，2 個 USB 端口，2 個 HMC 端口，2 個串口，鍵盤和鼠標端口。 |
| I/O適配器 | 雙通道 Ultra320 SCSI 控制器（內部，可選 RAID） |
| I/O擴展 | 7311-D20 |
| 發布日期 | 2004/8/31 |
| 下架日期 | 2008/12/12 |
| 服務截止日期 | |
| 操作系統 | AIX 5L Versions 5.2/5.3，SUSE LINUX Enterprise Server 9 f或 者 POWER (SLES 9) 或者更高版本，Red Hat Enterprise LinuX AS 3 f或 者 POWER Update 4 (RHEL AS 3) 或者更高版本。 |
| 產品尺寸 | 21.1"高 x 8.0"寬 x 23.0"深 (533 毫米 x 201 毫米 x 584 毫米)。 |
| 產品重量 | 重 35.5 千克 （78 磅） |
| FC號 | PN號 | 描述 |
| CPU | ||
|
8327 53C3 |
39J4050 39J4245 39J4531 42R4531 42R5853 42R6423 42R7379 44V2741 44V2804 |
1-way 1.9GHz POWER5+ Processor Card, 36MB L3 Cache |
|
8323 53C1 |
39J4067 39J4262 42R5857 42R7399 44V2761 |
2-way 1.65GHz POWER5+ Processor Card, 36MB L3 Cache |
| 8321 |
39J4072 39J4267 42R5860 44V2767 |
1-way 1.65GHZ POWER5+ Processor Card, No L3 Cache |
| 8333 |
39J4078 39J4273 42R5855 44V2755 |
4-way 1.5GHz POWER5+ Processor Card, 2x36 MB L3 Cache |
|
8314 53B7 |
42R5862 42R7418 44V2780 44V2781 |
4-core 1.65GHz POWER5+ Processor Card, 2 x 36MB L3 Cache |
| 8316 |
53B9 42R5863 42R7424 42R7425 44V2786 44V2787 |
2-core 2.1GHz POWER5+ Processor Card, 36MB L3 Cache |
|
8315 53B8 |
42R5864 42R7430 44V2792 44V2793 |
1-core 2.1GHz POWER5+ Processor Card, 36MB L3 Cache |
| 硬盤 | ||
| 1969 |
03N5267 03N6332 26K5162 26K5259 26K5574 52P8627 80P3408 80P6321 |
146.8 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1970 |
03N5277 03N6341 03N6342 24P3749 26K5164 26K5254 26K5570 52P8628 80P6324 80P6422 |
36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1971 |
03N5281 03N5282 03N6346 03N6347 24P3750 26K5165 26K5255 26K5571 52P8629 80P6325 80P6424 |
73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3273 |
00P2676 00P3068 00P3831 08K0293 26K5188 26K5288 |
36.4 GB 80pin Ultra320 10K SCSI Disk Drive Assembly |
| 3275 |
00P2664 00P2665 00P3834 00P3835 03N5264 03N5265 03N6330 08K0273 26K5194 26K5294 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive Carrier ST3146807LC |
| 3277 |
00P2692 00P2693 03N5275 03N6339 03N6340 07N6771 09P3631 26K5178 26K5278 26K5530 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 1968 |
03N5261 03N5262 03N6327 17R6169 26K5161 26K5250 26K5573 52P8626 80P3406 80P6320 |
73.4 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1972 |
03N5288 03N6351 03N6352 26K5166 26K5256 26K5572 80P3412 80P6426 |
146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1973 |
03N5272 03N6337 03N6357 26K5163 26K5284 26K5575 80P3410 80P6322 |
300 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3278 |
00P2684 00P2685 00P5260 03N5279 03N5280 03N6344 03N6345 26K5180 26K5280 26K5531 55P4103 80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3585 |
10N7195 10N7211 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| 內存 | ||
| 1932 |
12R8239 15R7170 |
4GB (2x2GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1934 |
12R8247 15R7172 |
8GB (2x4GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1930 |
12R8251 15R7166 |
1GB (2x512MB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1931 |
12R8255 15R7168 |
2GB (2x1GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 電源 | ||
| 5159 |
39J0544 39J4951 44V5095 97P2330 |
AC Power Supply, 850 W |
| 系統板 | ||
| 28F5 |
03N5875 80P6429 |
Ultra320 SCSI disk drive 4-pack backplane for external SCSI port. (This feature enables external SCSI devices to connect to internal SCSI controller channels.) |
|
32N1272 32N1275 |
SERVICE PROCESSOR CARD | |
| 磁帶機 | ||
| 6134 |
09L5322 09L5323 18P6484 19P0692 19P0708 35L1044 35L1409 59H2677 19P0708 52P8637 |
60 150 GB 16-bit 8mm Internal Tape Drive |
| 1992 |
19P4876 19P4877 19P4878 19P4879 19P4880 19P4897 19P4898 24R1988 24R1989 24R2134 24R2135 24R2137 24R2138 39J5601 52P8652 59P6746 95P1870 95P1871 96P1771 96P1772 97P3045 97P3046 |
IBM 80 160 GB Internal Tape Drive with VXA Technology |
| 6120 |
19P4876 19P4877 19P4878 19P4879 19P4880 19P4897 19P4898 24R1988 24R1989 24R2134 24R2135 24R2136 24R2137 24R2138 39J5601 95P1870 95P1871 96P1771 96P1772 97P3045 97P3046 |
80 160 GB Internal Tape Drive with VXA Technology |
| 1991 |
24R1986 24R1987 52P8638 95P1987 95P1989 |
36 72GB 4mm Internal Tape Drive |
| 1892 |
95P1975 95P1977 |
VXA-320 160 320GB Internal Tape Drive |
| 1997 |
96P1776 96P1777 |
200 400GB Half High Ultrium 2 Tape Drive |
| 磁帶 | ||
| 6271 | LTO Ultrium 200GB Data Cartridge | |
| 網卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 4962 |
00G2380 00P3056 03N6070 09P3196 09P5023 44P0321 |
10 100 Mbps Ethernet PCI Adapter II Type A-E |
| 1979 |
00G2380 03N6070 03N6525 52P8642 80P6445 |
10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 1985 |
00G2380 03N6070 52P8640 80P6508 |
10 100 Mbps Ethernet PCI Adapter II |
| 1983 |
00G2380 03N6070 52P8643 80P6450 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 1954 |
00N5444 03N5446 |
4-Port 10 100 1000 BaseT Ethernet PCI-X Adapter |
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5707 |
00P4290 00P6132 03N6973 05N6768 10N8587 11P3847 12R9314 15R7536 53P5450 80P4024 80P6451 80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5718 |
03N6969 05N6768 11P3847 12R9314 15R7536 16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 1981 |
03N6970 05N6768 11P3847 12R9314 15R7536 52P8614 80P6452 |
10 Gigabit Ethernet -SR PCI-X Adapter |
| 5719 |
03N6971 12R6249 12R9315 80P4066 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 1982 |
03N6972 12R6249 12R9315 52P8615 80P6453 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 1984 |
03N6974 05H6768 11P3847 12R9314 15R7536 52P8644 80P6451 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 1978 |
03N6981 03N6982 05N6768 11P3847 12R9314 15R7536 52P8641 83P6444 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 光纖卡 | ||
| 1905 |
03N5005 03N5010 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1910 |
03N5020 03N5025 05N6768 11P3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1977 |
03N6439 03N7067 05N6768 10N8623 11P3847 12R9314 15R7536 52P8633 80P6101 80P6455 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 5716 |
280B 03N6441 03N7069 05N6768 10N8622 11P3847 12R9314 15R7536 80P4543 80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 1986 |
26K6490 30R5209 32R1926 49Y4236 52P8480 80P4092 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 1987 |
30R5509 52P8456 80P4094 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| RAID卡 | ||
| 5709 |
39J0148 39J0149 44V3312 44V3314 97P2823 97P3158 97P6308 |
RAID Enabler Card, Cache battery pack 42R5070. |
| 5727 |
39J1308 39J3539 39J5653 42R8607 44V4411 |
Dual Channel SCSI RAID Enablement Card |
| 1907 |
39J1309 39J3540 39J4604 39J5653 39J5654 |
Dual Channel SCSI RAID Enablement Daughter Card, Cache battery pack 42R5070. |
| 1913 |
571B 39J2418 39J5026 42R4857 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. Note: The 1913 adapter is not supported by i5 OS. |
| 5703 |
39J5105 44V3319 53P3880 80P2696 97P2702 97P3960 97P6516 97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| 1975 |
39J5107 52P8630 80P6515 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| 1976 |
52P8631 80P6517 |
Dual Channel SCSI RAID Enablement Card |
| SCSI卡 | ||
| 6204 |
03N3266 11K0671 |
PCI Universal Differential Ultra SCSI Adapter |
| 1912 |
39J2421 39J4998 42R4862 42R4362 52P8558 |
PCI-X DDR Dual Channel Ultra320 LVD SCSI Adapter |
| 5712 |
44V3315 53P0978 97P2686 97P2687 97P3359 97P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 1974 |
52P8632 80P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 顯卡 | ||
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 1980 |
03N5853 03N5855 52P8645 80P6408 80P6411 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 適配卡 | ||
| 4959 |
00P1476 03N3554 03N5554 04H7648 09P4146 55F4896 |
IBM Token-Ring PCI Adapter |
| 6312 |
00P3119 10N7380 87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 8244 |
00P4648 10N7731 10N7732 80P2598 |
Audio PCI Adapter for Workstations |
| 2947 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3620 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 1820 |
26K7434 26K7452 |
PCI-X Dual-port 4x IB HCA |
| 2888 |
39J1099 39J2923 |
RIO-2 Adapter |
| 2962 |
00P5920 33F8985 40F9904 41L5233 41L4235 41L5795 52G3379 73H2508 93H3662 93H5261 93H5270 93H6068 93H6086 00P5920 41L5233 41L5235 41L5795 |
2-Port Multiprotocol PCI Adapter |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232 RS-422, PCI bus |
| 2944 |
43G0926 43G0938 93H6544 93H6545 93H8917 |
128-Port Asynchronous Controller, PCI bus |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 80P3249 | VPD card. | |
| 穩壓模塊 | ||
| 7876 | 44P3193 | 1.2V Processor Power Regulator |
| 硬盤背板 | ||
| 6574 |
28D2 03N5997 03N5998 32N1023 80P4610 80P4611 80P4770 32N1203 |
Ultra320 SCSI 4-Pack |
| 光驅 | ||
| 2640 |
00P4774 00P4775 03N5907 03N5908 39J1365 39J3522 39J3529 42R5290 42R5291 51P1834 97P5623 97P5624 |
4.7GB 8X 24X IDE Slimline DVD-ROM Drive |
| 1994 |
03N4712 52P8635 80P6300 |
IDE Slimline DVD-ROM Drive |
| 1993 |
03N4713 18P8166 39J3532 42R7967 42R7968 52P8450 52P8636 80P6340 80P6341 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 5751 |
18P8166 39J1364 39J3531 39J3804 39J3805 39J3808 39J3809 39J5769 39J5770 97P3692 97P3693 97P6883 97P6884 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 線纜 | ||
| 6001 |
00G1277 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 3146 |
00P3237 09P2631 21P5454 39J2562 44V5140 |
RIO-2(Remote I O-2Cbl 1.2M |
| 3147 |
00P3238 09P2632 31P6131 39J2554 43L8981 53P2676 |
RIO-2(Remote I O-2Cbl 3.5M |
| 3148 |
00P3239 09P2633 21P5456 39J2561 43L8982 |
RIO-2 (Remote I O-2) Cable, 10M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 3156 |
00P5238 03N5867 |
RIO-2 (Remote I O-2 Cable 1.75M) |
| 3168 |
00P5239 03N5866 |
RIO-2 (Remote I O-2 Cbl 2.5M |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 4353 | 03N3493 | H-100 Bus 8-position Cable |
| 2874 | 05F2045 | IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 7.5M Extension Cable |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2877 |
08L1215 42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 6006 |
09P1251 22R5239 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 6007 |
21F9358 22R5221 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6029 |
21F9359 22R5222 |
Power Control Cable (SPCN 30 meter) |
| 6008 |
21F9469 22R5219 55F4532 74F0188 |
Power Control Cable (SPCN 6 meter) |
| 1836 |
21P8318 26R0847 26R0848 42R6245 44V5083 |
8 meter 4x Cable |
| 1835 |
26R0813 42R6244 44V5082 97P6113 |
3 meter 4x Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 2873 |
34f0875 34f0876 87h3773 87H3790 87H3791 |
IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 3M 4-Drop Cable |
| 2871 |
34f0875 34f0876 87h3776 87H3793 87H3795 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 3M 4-Port Cable |
| 4267 |
39J0444 42R4052 53P4485 64P1258 |
SCSI Cable PCI Adapter to Hot-Swap Disks |
| 4278 |
39J2634 39J4140 42R4119 53P4486 97P2548 97P5103 97P5354 |
SCSI Cables (Power and Logic PCI Riser to SCSI LVD Media Device; Mounting Tray |
| 1839 |
39J4319 42R6243 44V5081 |
1.5 meter 4x Cable |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 2114 |
40H6603 52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 15M |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 15 M |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller single path 6M |
| 8132 |
43F0936 43F0937 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 |
43G0935 51G8610 |
RJ-45 to DB-25 Converter Cable |
| 8131 |
43G0937 51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 2424 | 52G4291 | 0.6M 16-bit SCSI-2 System to System Cable |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 4693 | 53P2231 | Rack Beacon Junct Box Cable |
| 4691 | 53P2237 | Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 | Rack Status Beacon Cable Junction Box Daisy Chain |
| 2872 |
54F0740 87H3791 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 15M Extension Cable |
| 4275 | 64P1271 | External SCSI Port Enablement Cable |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2710 |
87H3514 87H3515 87H3586 |
ARTIC960Hx RxD 4-Port E1 RJ-45 Cable |
| 2709 |
87H3517 87H3518 87H3587 |
ARTIC960Hx RxD 4-Port T1 RJ-45 Cable |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V 10A |
|
| 6460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 |
Power Cord (9-foot To Wall OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V 10A |
|
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V 10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V 10A |
|
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 導軌 | ||
| 7873 |
39J2042 39J4799 |
OEM Rack-mount Drawer Bezel and Hardware |
| 7190 |
39J5328 97P6149 |
IBM Rack-mount Drawer Bezel and Hardware |
| 7160 | IBM Rack-mount Drawer Rail Kit | |
| 7161 | OEM Rack-mount Drawer Rail Kit | |
| 電池 | ||
|
04N2496 22R2717 42R5070 44L0313 |
Battery for raid card. | |
| 其他 | ||
| 3628 |
04N7160 04N7168 04N7170 04N7172 04N7177 04N7529 04N7532 04N7589 61H0226 |
IBM P260 P275 Color Monitor, Business Black, and Cable |
| 3637 |
04N7526 04N7527 04N7532 13F9959 31P7507 31P7509 31P7511 31P7513 31P7515 |
IBM T541H L150p 15" TFT Color Monitor |
| 3752 | 09P3035 | Service Package |
| 8136 |
09P4095 09P4096 40H2588 40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 6598 |
12R7457 64P1426 |
Disk Slot Fillers (Quantity 4) |
| 3639 |
13F9959 31P9575 31P9577 31P9584 31P9587 31P9590 73P0261 |
L180P TFT 17" Color Display |
| 3638 |
22P4543 73P2310 73P2311 73P2313 73P2316 |
C220P 21" Color Monitor |
| 3636 |
31P9263 31P9264 31P9265 31P9266 |
L200P Flat Panel Monitor |
| 3645 |
39Y9919 40k5342 |
IBM T117 Flat Panel Monitor |
| 3641 |
40K7317 40K5341 73P4360 |
T115 TFT 15" Color Display |
| 265 | AIX Partition Specify | |
| 3640 | L171P TFT 17" Black Display | |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5001 | Customer Solution Center | |
| 5983 | USB Keybd-US English Euro | |
| 2591 |
03N4962 33P3339 52P8634 |
Ext 1.44GB Diskette Drive |
| 6585 | DASD Locking Kit | |
| 6587 | Acoustic Option -- Rear Muffler | |
| 7184 | IBM Deskside Cover Set | |
| 7185 | IBM Acoustic Deskside Cover Set | |
| 7193 | OEM Acoustic Deskside Cover Set | |
| 7305 | SDI Software Pre-Install Indicator | |
| 7916 | OEM Deskside Cover Set | |
| 7940 | Adv Power Virtualization | |
| 8227 | Tie-down Strap Security Device | |
| 9004 | Southern Hemisphere Designator for Monitors | |
| 9300 | Language Group Specify - US English | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 9564 | Express Product Offering 91311K1 | |
| 9565 | Express Product Offering 91311K2 | |
| 9566 | Express Product Offering 91311K3 | |
| 9567 | Express Product Offering 91311K4 | |
| 9568 | Express Product Offering 91311K5 | |
| 9569 | Express Product Offering 91311K6 | |
| 9571 | Express Product Offering 91311K7 | |
| 9572 | Express Product Offering 91311K8 | |
| 5005 | software preinstall | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 5886 | EXP 12S Expansion Drawer | |
|
7877 28D1 |
03N5895 03N5897 03N6004 03N6005 39J2521 39J2523 80P3510 80P4013 80P4137 80P4138 80P4179 97P3815 |
Media Backplane |
| 97P2642 | 2.5V Processor Power Regulator | |
| 24P6892 | 1.8V Processor Power Regulator | |
| 28E5 |
39J3273 97P4935 |
LCD display. |
