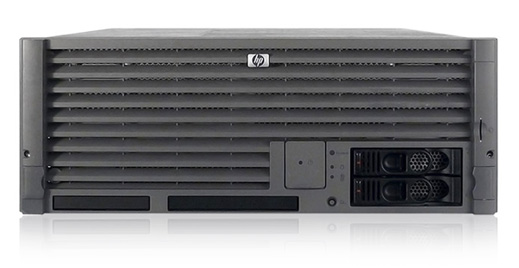

HP RP4440
| 整機信息 | |
| 機架類型 | 機架式 |
| 機架空間 | 4U |
| CPU信息 | 1-4 個時鐘速度 800MHz 和1.0GHz的雙核處理器。 |
| CPU類型 | PA-8900 |
| CPU插槽數 | 4 |
| 硬盤信息 | 提供36GB、73GB、146GB 和300GB 驅動器；3 個熱插拔Ultra320 SCSI；最大內部存儲600GB |
| 最大硬盤數量 | 2 |
| 內存類型 | RAM 類型 PC2100 ECC registered DDR266A/B |
| 支持內存容量范圍 | 最小內存1GB，最大內存128GB。 |
| 內存插槽數量 | 32 |
| 電源描述 | 最大輸入電流：8A @ 240VAC；線頻：50-60Hz；最大AC 輸入功率：1368 瓦（保守值），1065 瓦（標準值）；最大輸出功率：每個電源1200 瓦。 |
| 單機電源數量 | 2 |
| 介質托架 | 1 個用于DVD-ROM 或DVD+RW 光驅的開放托架 |
| 適配器插槽 | 6 個PCI-X 插槽（2 x 133 MHz，4 x 66 MHz）；4.2 GB/s 總I/O 帶寬網絡 |
| 端口 | 雙端口10/100/1000Base-TX 以太網；用于本地人機界面的VGA 和2 個USB 端口；1 個通用的RS-232 串行端口；用于Integrated Lights Out（iLO）管理的2 個RS-232 串行端口和10/100Base-T 局域網。 |
| IO適配器 | 雙通道Ultra320 SCSI，配置為2 個內部或1 內部/1 外部；智能陣列6402 RAID 適配器可替代為標配SCSI 適配器。 |
| 操作系統 | HP-UX 11i v1；HP-UX 11i v2。 |
| 產品尺寸 | 機架外形 高度：6.8 英寸（173 毫米）/4U EIA；寬度：19.0 英寸（482 毫米）；深度：27.2 英寸（690 毫米）。單機 高度：20.9 英寸（530 毫米）；寬度：10.2 英寸（260 毫米）；深度：27.4 英寸（695 毫米）。 |
| 產品重量 | 最大配置：100 磅（45 千克） |
| 配件信息 | |
| PN號 | 描述 |
| CPU | |
| A7125A | HP PA-RISC processor upgrade kit - Includes one 800MHz PA-RISC 8800 dual core processor and attached heat sink with fan |
| A7125AXA7125-69102 | 800MHZ PA 8800 Central Processing Unit (CPU)800MHZ PA 8800 Central Processing Unit (CPU) |
| A7126-69002 | HP PA-RISC processor - 900MHz PA-RISC 8800 dual core with 3MB cache - Includes attached heat sink with fan |
| A7126A | HP PA-RISC processor upgrade kit - Includes one 900MHz PA-RISC 8800 dual core processor and attached heat sink with fan |
| A7135-69103 | Processor - 1.0GHz, PA-8800 Central processing unit |
| A7135A | HP PA-RISC processor upgrade kit - Includes one 1.0GHz PA-RISC 8800 dual core processor and attached heat sink with fan |
| A7135AXA7135-69102 | Processor - 1.0GHz, PA-8800 Central processing unitProcessor - 1.0GHz, PA-8800 Central processing unit |
| 系統板 | |
| A6869-67501 | VGA video/USB core I/O PCI board - Has one video connector and two USB connectors |
| A6961-67005 | Midplane riser board - Has slots for the processor board, memory board, and I/O base board |
| A6961-67007 | Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-67009 | QuickFind diagnostic board - Includes the plastic cover and label |
| A6961-67015 | Power distrubution board - Has connectors for two hot-swap power supplies - Attached to the rear power supply cage underneath the hot-swap power supply fan unit |
| A6961-67105 | Midplane riser board - Has slots for the processor board, memory board, and I/O base board |
| A6961-67106 | Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board |
| A6961-67115 | Power distrubution board - Has connectors for two hot-swap power supplies |
| A6961-67206 | Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board |
| A6961-67207 | Replaced: A6961-67207 Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-69501 | I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs |
| A6961-69511A6961-67411 | I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs |
| A6961-69804A6961-67804 | Memory board - 16-slot memory carrier |
| A9738A | Memory board (16-slot) - Supports up to four quads of memory - Plugs into the midplane board |
| A9739-69007 | Memory board PCA (32-slot) - For firmware versions greater than 1.13 |
| A9739-69008A9739-67008 | Memory board PCA (32-slot) - For firmware versions greater than 1.13 |
| A9739A | Memory board (32-slot) - Supports up to eight quads of memory, 4U form factor chassis |
| 內存 | |
| A6835-69001 | 2.0GB, 266MHz, PC2100, registered ECC, DDR SDRAM, DIMM memory module |
| A6835A | 8.0GB DDR-SDRAM memory upgrade kit - Includes four 2.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A6967A | 1.0GB DDR-SDRAM memory upgrade kit - Includes four 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A6967AX | 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module |
| A6968A | 2.0GB DDR-SDRAM memory upgrade kit - Includes four 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A6968AX | 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module |
| A6969AXA6969-69001 | 1.0GB, 266MHz, PC2100, ECC DDR-SDRAM DIMM memory module |
| A6970A | 8.0GB DDR-SDRAM memory upgrade kit - Includes four 2.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A6970AX | 2.0GB, 266MHz, PC2100, registered ECC, DDR SDRAM, DIMM memory module - |
| A7128A | 1.0GB DDR-SDRAM memory upgrade kit - Includes four 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A7129A | HP 2.0GB DDR-SDRAM memory upgrade kit - Includes four 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A7130A | 4.0GB DDR-SDRAM memory upgrade kit - Includes four 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A7131A | HP 8GB DDR Quad for Svr rp4440-8 Memory - Includes four 2.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| AB560A | HP 16GB Quad DIMM for Svr rp44xx Memory |
| AD041AAB475-69001 | 4.0GB DDR-SDRAM - Has an 8-slot restriction |
| 硬盤 | |
| A7080-69002 | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9776A | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9776AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9777A | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9777AR | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9778A | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9778AR | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9896A | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9896AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9897-69001 | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high - |
| A9897A | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9897AR | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9898A | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9898AR | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB420-69001AB420-67001 | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB421-69001AB421-67001 | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB422-69001AB422-67001 | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| 硬盤背板 | |
| A6961-67024 | SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board |
| A6961-67205 | SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board |
| SCSI卡 | |
| A6828A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6828AR | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6829AA6829-60101 | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| A6829AR | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| A7143A | Four channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 60 devices - Has four 68-pin very high density external connectors, and four 68-pin high density internal connectors - For HP-UX operating system |
| 網卡 | |
| A5230A | 100Base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100Base-TX PCI LAN adapter with one RJ-45 port |
| A5506B | 100Base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100Base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838A | PCI 5.0v dual port 10Base-T/100Base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100Base-T LAN and Dual port Ultra2 LV |
| A6825-67101A6825-67001A6825-60001A6825-69101 | 1000Base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot |
| A6825A | 1000Base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot - For HP-UX operating system |
| A6847A | 1000Base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system |
| 適配卡 | |
| A5513A | PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter |
| A6748A | HP 8-port MUX PCI Multiplexer interface board - Speeds up to 230,400 bps per port, 33MHz bus speed - Occupies one PCI slot - For HP-UX operating system |
| A6749A | HP 64-port MUX PCI Multiplexer interface board |
| A7782-63001 | USB to two-port PS/2 adapter - For converting one or two legacy or contemporary PS/2 devices to USB - For USB only systems running HP-UX 10.20 or later - One type `A` Male USB connector to two 6-pin mini-DIN connectors, 38.1cm (15in) long cable - (A7782A) |
| A7782A | USB to 2-port PS/2 adapter - For converting one or two PS/2 devices to USB - For USB only systems running HP-UX 10.20 or later - One type 'A' male USB connector to two 6-pin mini-DIN connectors, 38.1cm (15in) long cable |
| J3525A | Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card |
| 顯卡 | |
| A6150B | PCI 2D graphics kit - Includes one 2D PCI graphics card and one PCI 2-port USB card |
| A6869A | HP Graphics USB Card (rx5670) - VGA video/USB core I/O PCI board - Has one video connector and two USB connectors |
| 光纖卡 | |
| A6386A | HyperFabric2 PCI 4X fiber adapter interface and switch - For HP-UX operating system |
| A6795A | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| A6795AR | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| A6826A | 2Gbps Fiber Channel host bus adapter - For 64-bit Linux and HP-UX - Dual channel, short wave, 64-bit, 133MHz PCI-X - Has LC connectors |
| A9784-69003 | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
| A9784A | 1000Base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors |
| A9784AX | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
| 電源 | |
| A6961-67225 | Power supply - 700W,48V |
| A6976A | HP Hot Swap Redundant Power Supply - 4U chassis |
| 穩壓模塊 | |
| 0950-4417 | Voltage Regulator Module (VRM) 12.0VDC |
| 0950-4418 | Voltage Regulator Module (VRM) 5.0VDC |
| 0950-4419 | Voltage Regulator Module (VRM) 3.3VDC |
| 電池 | |
| 1420-0386 | 3.0V battery - 250mAh, lithium coin cell battery - Type CR2330 or equivalent - Not rechargeable - Used on the cell board |
| 光驅 | |
| A7007A | HP rx4640/rp4440-8 DVD/CD-RW Drive - Slimline, DVD drive CD write capable on 4U chassis |
| A7163-67002 | Slimline DVD-ROM drive - DVD-R, CD-R |
| A7163A | Slimline DVD-ROM (read-only) Drive - For 4U chassis |
| AB349-67102 | Slimline DVD-ROM/CD-RW combination drive |
| 風扇 | |
| A6961-04028 | Power supply hot-swap fan assembly - Includes two fans mounted in a metal frame - Smaller of the two fan sizes found in the chassis |
| A6961-04055 | I/O section hot-swap fan assembly - Includes two fans mounted in a metal frame - Larger of the two fan sizes found in the chassis |
| 導軌 | |
| A6977-67001 | Right rack mount bracket |
| A6977-67002 | Left rack mount bracket |
| A6977A | Rack mount kit - Includes side-mount slides and cable management arm |
| A6979A | Pedestal kit - Includes parts required to change from the rack mount configuration to deskside pedestal |
| 線纜 | |
| 293469-001 | HP TFT2025 flat panel monitor return repair kit |
| 305717-001 | VGA video cable - 1.8m long |
| 405627-001212528-001 | Monitor video cable - DVI-D signal connector, molex plug |
| A6961-63014 | Power distribution board to midplane board cable - Has 10-pin connectors at each end |
| A6961-63015 | Power distribution board to midplane board ribbon cable |
| A6961-63016 | QuickFind diagnostic board to midplane board cable |
| A6961-63017 | Internal SCSI cable |
| A6961-63018 | SCSI backplane board to midplane board cable |
| A6961-63020 | SCSI controler jumper cable (simplex only) |
| 機殼 | |
| A7124-67003 | Front bezel - For rack mount configuration |
| 其它 | |
| 302268-003 | HP P930 19-inch monitor (North America and Japan) |
| 302270-003 | HP P1130 21-inch CRT monitor (Silver) (North America and Japan) |
| 302349-001 | Replacement HP P1130 21-inch color monitor - Has two 15-pin VGA connectors (For use in Europe and China) |
| 303102-003 | L2025 20-inch LCD flat panel display (Americas) |
| 303486-003 | HP L1825 18-inch flat panel display (North America and Japan) |
| 305538-021 | P930 series 19in performance monitor (Carbon Black bucket with silver bezel) - For the northern hemisphere - Flat screen, 18in viewable area, 0.24mm pitch, 1600 x 1200 @ 85Hz max resolution - Has attached 1.8m (5.9ft) cable with 15-pin `D` connector |
| 305539-001 | Return kit |
| 308684-B24 | HP L1825 18-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia Pacific)HP L1825 18-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia Pacific) |
| 308684-B24-1 | Replaced: P9021-63504 HP L1825 18-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia Pacific) |
| 309101-B24 | HP L2025 20-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia) |
| 337988-001 | L2035 monitor, TCO-03, 20-inch active-matrix, TFT, native resolution of 1,600 x 1,200 pixels at 60 Hz |
| 396709-002 | Replacement LP2065 flat panel monitor |
| 396709-002Exchange1 | Replacement LP2065 flat panel monitor |
| 434416-001 | LCD service monitor |
| 434416-001Exchange1 | LCD service monitor |
| 516690-001 | LP2275w 22-inch replacement monitor |
| 5697-4895 | Carrier handle assembly (Black) |
| 8121-0877 | Power cord - 3-conductor, 2.5m (8.2ft) long |
| A3024-80004 | Disposable Electrostatic Discharge (ESD) Kit |
| A5783A | Token ring (IEEE 802.5 networks) 4/16/32Mbs network interface board |
| A6961-40034 | DIMM slot filler - Covers unused DIMM slots to aid in cooling - One DIMM filler covers two adjacent DIMM slots |
| A6961-67008 | Front display/status panel - Has the power button and three status LEDs |
| A6961-67021 | PCI retention clip |
| A6961-67113 | DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane board cable |
| A6961-67213 | DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane |
| A6979-04001 | Pedestal kit - Includes parts required to change from the rack mount configuration to deskside pedestal |
| A7861C | USB keyboard and mouse kit - Includes USB Windows 104/105-key keyboard (Carbon black) and USB two-button scrolling mouse (Carbon black) |
| C1099-69001C1099-62000 | Alphanumeric terminal console for HP3000/9000 systems |
| C1099-69001-1 | Alphanumeric terminal console for HP3000/9000 systemsAlphanumeric terminal console for HP3000/9000 systems |
| C1099A | Alphanumeric terminal console |
