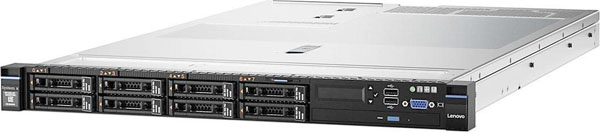

外形/高度 |
機架式/1U |
|
處理器(最大) |
最高一個英特爾至強E3-1200 v3系列處理器（四核）、酷睿i3系列處理器（四核）或奔騰系列處理器（雙核） |
|
緩存(最大) |
最高每個處理器8MB |
|
內存(最大) |
通過四個插槽最大提供32GB（UDIMM） |
|
擴展插槽 |
1個PCIe 3.0 x8插槽，1個PCIe 3.0 x8（電氣x4）插槽 |
|
磁盤托架 |
最大四個3.5英寸或八個2.5英寸HDD |
|
最大內部存儲量 |
最高24TB |
|
網絡接口 |
標配兩個千兆以太網端口；可通過FoD升級的兩個額外千兆以太網端口 |
|
電源(標配/最大) |
一個固定的300W或最高兩個460W熱插拔冗余電源 |
|
熱插拔組件 |
最大四個3.5英寸或八個2.5英寸HDD，460W熱插拔冗余電源 |
|
RAID支持 |
集成IBM ServeRAID C100 RAID 0、1（可通過IBM按需啟用功能（FoD）升級到RAID 5），可選硬件RAID 0、1、10或者RAID 5、50或者RAID 6、60 |
|
系統管理 |
IPMI 2.0與Serial over LAN，實現集成管理模塊（IMM2）標準，可以選擇通過FoD升級到遠程呈現；IBM Systems Director，ServerGuide |
|
支持的操作系統 |
Microsoft Windows Server 2012 R2/Microsoft Windows Server 2012/Microsoft Windows Server 2008 R2，Red Hat Linux，Novell SUSE Linux，VMware |
CPU
Feature code Description Standard models where used
A5H4 Intel Celeron Processor G1840 2.8GHz 2MB 1333MHz 2C (53W)
A5UP Intel Celeron Processor G1840T 2.5GHz 2MB 1333MHz 2C (35W) -
A5H3 Intel Celeron Processor G1850 2.9GHz 2MB 1333MHz 2C (53W) -
A5DY Intel Core i3 Processor 4150 3.5GHz 3MB 1600MHz 2C (54W) -
A5E4 Intel Core i3 Processor 4150T 3.0GHz 3MB 1600MHz 2C (35W) -
A5DW Intel Core i3 Processor 4350 3.6GHz 4MB 1600MHz 2C (54W) -
A5E3 Intel Core i3 Processor 4350T 3.1GHz 4MB 1600MHz 2C (35W) -
A5DV Intel Core i3 Processor 4360 3.7GHz 4MB 1600MHz 2C (54W) -
A5E1 Intel Pentium Processor G3240 3.1GHz 3MB 1333MHz 2C (53W) -
A5E5 Intel Pentium Processor G3240T 2.7GHz 3MB 1333MHz 2C (35W) -
A5E0 Intel Pentium Processor G3440 3.3GHz 3MB 1600MHz 2C (53W) A3x
A5UN Intel Pentium Processor G3440T 2.8GHz 3MB 1600MHz 2C (35W) -
A5DZ Intel Pentium Processor G3450 3.4GHz 3MB 1600MHz 2C (53W) -
A5DQ Intel Xeon Processor E3-1231 v3 3.4GHz 8MB cache 1600MHz 4C (80W) C3x, C5x
A5DS Intel Xeon Processor E3-1240L v3 2.0GHz 8MB cache 1600MHz 4C (25W) -
A5DP Intel Xeon Processor E3-1241 v3 3.5GHz 8MB cache 1600MHz 4C (80W) F3x, F5x
A5DN Intel Xeon Processor E3-1271 v3 3.6GHz 8MB cache 1600MHz 4C (80W) G3x
A5DR Intel Xeon Processor E3-1275L v3 2.7GHz 8MB cache 1600MHz 4C (45W) -
A5DM Intel Xeon Processor E3-1281 v3 3.7GHz 8MB cache 1600MHz 4C (82W) -
A5DT Intel Xeon Processor E3-1286 v3 3.7GHz 8MB cache 1600MHz 4C (84W) -
A5DU Intel Xeon Processor E3-1286L v3 3.2GHz 8MB cache 1600MHz 4C (65W) -
A4QU Intel Core i3 Processor 4130 3.4GHz 3MB 1600MHz 2C (54W) -
A4QW Intel Core i3 Processor 4130T 2.9GHz 3MB 1600MH 2C (35W) -
A4QT Intel Core i3 Processor 4330 3.5GHz 4MB 1600MHz 2C (54W) -
A4QV Intel Core i3 Processor 4330T 3.0GHz 4MB 1600MHz 2C (35W) -
A4QS Intel Core i3 Processor 4340 3.6GHz 4MB 1600MHz 2C (54W) -
A4QP Intel Pentium Processor G3220 3.0 GHz 3MB 1333MHz 2C (54W) -
A4QR Intel Pentium Processor G3220T 2.6GHz 3MB 1333MHz 2C (35W) -
A4K7 Intel Pentium Processor G3420 3.2GHz 3MB 1600MHz 2C (54W) A2x
A4QQ Intel Pentium Processor G3420T 2.7GHz 3MB 1600MHz 2C (35W) -
A4QN Intel Pentium Processor G3430 3.3 GHz 3MB 1600MHz 2C (54W) -
A3UB Intel Xeon Processor E3-1220 v3 3.1GHz 8MB cache 1600MHz 4C (80W) B2x
A4K6 Intel Xeon Processor E3-1220L v3 1.1GHz 4MB cache 1600MHz 2C (13W) -
A3UA Intel Xeon Processor E3-1230 v3 3.3 GHz 8MB cache 1600MHz 4C (80W) C2x, C4x
A4GL Intel Xeon Processor E3-1230L v3 1.8GHz 8MB cache 1600MHz 4C (25W) -
A3U9 Intel Xeon Processor E3-1240 v3 3.4GHz 8MB cache 1600MHz 4C (80W) F2x
A4GK Intel Xeon Processor E3-1265L v3 2.5GHz 8MB cache 1600MHz 4C (45W) -
A3U8 Intel Xeon Processor E3-1270 v3 3.5GHz 8MB cache 1600MHz 4C (80W) G2x
A3U7 Intel Xeon Processor E3-1280 v3 3.6GHz 8MB cache 1600MHz 4C (82W) -
A3UC Intel Xeon Processor E3-1285 v3 3.6GHz 8MB cache 1600MHz 4C (84W) -
A3UD Intel Xeon Processor E3-1285L v3 3.1GHz 8MB cache 1600MHz 4C (65W) -
內存
Part number Feature code Description Maximum supported Standard models where used
00D5012 A3QB 4GB (1x4GB, 2Rx8, 1.35V) PC3L-12800 CL11 ECC DDR3 1600MHz LP UDIMM 4 A2x, A3x, B2x, C2x,
C3x, C5x
00D5016 A3QC 8GB (1x8GB, 2Rx8, 1.35V) PC3L-12800 CL11 ECC DDR3 1600MHz LP UDIMM 4 C4x, F2x, F3x, F5x,
G2x, G3x
硬盤背板
Part number Feature code Description Maximum supported
46W6577 A4GV 2.5" Simple Swap HDD Hardware RAID upgrade kit 1
46W6576 A4GW 3.5" Simple Swap HDD Hardware RAID upgrade kit 1
00KC525 AS71 System x3250 M5 Hot Swap HDD RAID 5 Upgrade Kit 1
00AL348 A4VN x3250 M5 HS 2.5" HDD 4 to 8 Upgrade Kit 1
RAID 陣列卡升級
Part number Feature code Description Maximum supported Standard models where used
None# A17T ServeRAID C100 1 A2x, B2x
81Y4406 A17U ServeRAID C100 Series RAID 5 Upgrade-FoD 1 -
81Y4492 A1XL ServeRAID H1110 SAS/SATA Controller 1 (slot 1) C2x, C4x, F2x
81Y4448 A1MZ ServeRAID M1115 SAS/SATA Controller 1 (slot 2) G2x
46C8988 A3MW N2115 SAS/SATA HBA 1 (slot 2) -
ServeRAID M1100 upgrades
81Y4542 A1X1 ServeRAID M1100 Series Zero Cache/RAID 5 Upgrade 1 -
ServeRAID M5110 upgrades
81Y4481 A347 ServeRAID M5110 SAS/SATA Controller 1 (slot 2) -
81Y4544 A1X2 ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade 1 -
81Y4484 A1J3 ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade 1 -
81Y4487 A1J4 ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade 1 -
81Y4559 A1WY ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade 1 -
81Y4508 A22E ServeRAID M5100 Series Battery Kit 1 -
81Y4546 A1X3 ServeRAID M5100 Series RAID 6 Upgrade 1† -
90Y4273 A2MC ServeRAID M5100 Series Performance Accelerator 1 -
90Y4318 A2MD ServeRAID M5100 Series SSD Caching Enabler 1 -
SAS卡和陣列卡 SAS HBAs and RAID adapters
Part number Feature Description Maximum supported
SAS HBAs
46C9010 A3MV N2125 SAS/SATA HBA 1 (slot 2)
00AE912 A5M0 N2225 SAS/SATA HBA 1 (slot 2)
External RAID controllers
81Y4478 A1WX ServeRAID M5120 SAS/SATA Controller 1 (slot 2)
00AE938 A5ND ServeRAID M5225 SAS/SATA Controller 1 (slot 2)
ServeRAID M5120 upgrades
81Y4484 A1J3 ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade 1
81Y4487 A1J4 ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade 1
81Y4559 A1WY ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade 1
81Y4508 A22E ServeRAID M5100 Series Battery Kit 1
81Y4546 A1X3 ServeRAID M5100 Series RAID 6 Upgrade 1
90Y4273 A2MC ServeRAID M5100 Series SSD Performance Accelerator 1
90Y4318 A2MD ServeRAID M5100 Series SSD Caching Enabler 1
硬盤
Part number Feature Description Maximum supported
2.5-inch hot-swap HDDs - 6 Gb SAS 10K
90Y8877 A2XC 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD 8
90Y8872 A2XD 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD 8
81Y9650 A282 900GB 10K 6Gbps SAS 2.5" SFF HS HDD 8
00NA441 ASCD 1.8TB 10K 6Gbps SAS 2.5" G2HS 512e HDD 8
2.5-inch hot-swap HDDs - 6 Gb SAS 15K
81Y9670 A283 300GB 15K 6Gbps SAS 2.5" G2HS HDD 8
00AJ300 A4VB 600GB 15K 6Gbps SAS 2.5" G2HS HDD 8
2.5-inch hot-swap HDDs - 6 Gb NL SAS
81Y9690 A1P3 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD 8
2.5-inch hot-swap HDDs - 6 Gb NL SATA
81Y9726 A1NZ 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 8
81Y9730 A1AV 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 8
2.5-inch hot-swap SED HDDs - 6 Gb SAS 10K
90Y8908 A3EF 600GB 10K 6Gbps SAS 2.5" SFF G2HS SED 8
2.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Mainstream (3-5 DWPD)
00AJ355 A56Z 120GB SATA 2.5" MLC HS Enterprise Value SSD 8
00AJ360 A570 240GB SATA 2.5" MLC HS Enterprise Value SSD 8
00AJ365 A571 480GB SATA 2.5" MLC HS Enterprise Value SSD 8
00AJ370 A572 800GB SATA 2.5" MLC HS Enterprise Value SSD 8
2.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Entry (<3 DWPD)
00FN268 A5U4 S3500 1.6TB SATA 2.5" MLC HS Enterprise Value SSD 8
00YC365 AT8M 120GB Enterprise Entry SATA HS 2.5" SSD 8
00YC370 AT8N 240GB Enterprise Entry SATA HS 2.5" SSD 8
00YC375 AT8P 480GB Enterprise Entry SATA HS 2.5" SSD 8
00YC380 AT8Q 960GB Enterprise Entry SATA HS 2.5" SSD 8
3.5-inch hot-swap HDDs - 6 Gb NL SAS
00ML213 AS78 6TB 7.2K 6Gbps NL SAS 3.5" G2HS 512e HDD 4
3.5-inch hot-swap HDDs - 6 Gb NL SATA
81Y9786 A22Y 500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 4
81Y9790 A22P 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 4
81Y9794 A22T 2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 4
00FN173 A5VM 6TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 4
3.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Performance (10+ DWPD)
00YC340 AT9G Intel S3710 400GB Enterprise Performance SATA HS 3.5" SSD 4
00YC345 AT9H Intel S3710 800GB Enterprise Performance SATA HS 3.5" SSD 4
3.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Entry (<3 DWPD)
00YC420 AT8Y 960GB Enterprise Entry SATA HS 3.5" SSD 4
3.5-inch simple-swap HDDs - 6 Gb NL SATA
81Y9802 A22U 500GB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 4
81Y9806 A22X 1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 4
81Y9810 A22W 2TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 4
00FN118 A5VE 2TB 7.2K 6Gbps NL SATA 3.5" G2SS 512e HDD 4
00FN148 A5VJ 4TB 7.2K 6Gbps NL SATA 3.5" G2SS 512e HDD 4
光驅
Part number Feature code Description Maximum supported Standard models where used
46M0901 4161 UltraSlim Enhanced SATA DVD-ROM 1 -
46M0902 4163 UltraSlim Enhanced SATA Multi-Burner 1 -
00MV945 ATTZ 12.7mm Ultra-Slim Enhanced SATA Multi-Burner 1 -
00MV944 ATU0 12.7mm Ultra-Slim Enhanced SATA DVD-ROM 1 -
網卡
Part number Feature Description Maximum supported
10 Gb Ethernet
44T1370 A5GZ Broadcom NetXtreme 2x10GbE BaseT Adapter 1 (slot 2)
00JY820 A5UT Emulex VFA5 2x10 GbE SFP+ PCIe Adapter 1 (slot 2)
00JY830 A5UU Emulex VFA5 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 1 (slot 2)
None AS3M Emulex VFA5 2x10 GbE SFP+ Integrated Adapter 1 (slot 2)
49Y7960 A2EC Intel X520-DA2 Dual Port 10GbE SFP+ Adapter 1 (slot 2)
49Y7970 A2ED Intel X540-T2 Dual Port 10GBaseT Adapter 1 (slot 2)
01DA900 AU2Y Intel X710-DA2 2x10GbE SFP+ Adapter 1 (slot 2)
00D9690 A3PM Mellanox ConnectX-3 10GbE Adapter 1 (slot 2)
90Y4600 A3MR QLogic 8200 Dual Port 10GbE SFP+ Virtual Fabric Adapter (VFA) 1 (slot 2)
Integrated NIC Features on Demand (FoD) upgrades
00AM013 A4K5 Broadcom Ethernet Adapter 5719 - 4 port upgrade 1
Gigabit Ethernet
90Y9370 A2V4 Broadcom NetXtreme I Dual Port GbE Adapter 1 (slot 2)
00AG500 A56K Intel I350-F1 1xGbE Fiber Adapter 1 (slot 2)
00AG510 A56L Intel I350-T2 2xGbE BaseT Adapter 1 (slot 2)
00AG520 A56M Intel I350-T4 4xGbE BaseT Adapter 1 (slot 2)
49Y4230 5767 Intel Ethernet Dual Port Server Adapter I340-T2 1 (slot 2)
49Y4240 5768 Intel Ethernet Quad Port Server Adapter I340-T4 1 (slot 2)
Part number Feature code Description
10 GbE SFP+ LR transceivers (for SFP+ adapters)
00FE331 B0RJ Lenovo 10GBASE-LR SFP+ Transceiver
90Y9412 A1PM Lenovo 10Gb/s LR SFP+ XCVR
10 GbE SFP+ SR transceivers (for SFP+ adapters)
46C3447 5053 Lenovo 10GBASE-SR SFP+ Transceiver
49Y4216 0069 Brocade 10Gb SFP+ SR Optical Transceiver
49Y4218 0064 QLogic 10Gb SFP+ SR Optical Transceiver
10 GbE SFP+ DAC cables (for SFP+ adapters)
00D6288 A3RG Lenovo 0.5m Passive SFP+ DAC Cable
90Y9427 A1PH Lenovo 1m Passive SFP+ DAC Cable
00AY764 A51N Lenovo 1.5m Passive SFP+ DAC Cable
00AY765 A51P Lenovo 2m Passive SFP+ DAC Cable
90Y9430 A1PJ Lenovo 3m Passive SFP+ DAC Cable
90Y9433 A1PK Lenovo 5m Passive SFP+ DAC Cable
00D6151 A3RH Lenovo 7m Passive SFP+ DAC Cable
光纖卡 Fibre Channel HBAs
Part number Feature Description Maximum supported
Fibre Channel - 16 Gb
81Y1662 A2W6 Emulex 16Gb FC Dual-port HBA 1 (slot 2)
81Y1655 A2W5 Emulex 16Gb FC Single-port HBA 1 (slot 2)
Fibre Channel - 8 Gb
42D0494 3581 Emulex 8Gb FC Dual-port HBA 1 (slot 2)
42D0485 3580 Emulex 8Gb FC Single-port HBA 1 (slot 2)
42D0510 3579 QLogic 8Gb FC Dual-port HBA 1 (slot 2)
42D0501 3578 QLogic 8Gb FC Single-port HBA 1 (slot 2)
電源
Part number Feature code Description Maximum supported Standard models where used
None None 300W Fixed Power Supply Unit 1 A2x, B2x, C2x,C4x
94Y6236 A2E8 460W Redundant Power Supply Unit with 80+ certified 2 F2x, G2x
