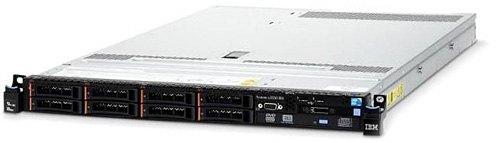

IBM X3550M3 (7944)
| 整機信息 | |
| 名稱 | IBM System x3550 M3 |
| 型號 | 7944 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | 最多 2 個 3.46GHz 六核（3.60GHz 四核）英特爾至強 5600 系列處理器，采用 QuickPath Interconnect 技術 |
| CPU類型 | 六核（3.60GHz 四核）英特爾至強 5600 系列 |
| CPU插槽數 | 2 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 1U |
| 硬盤信息 | 高達 8.0TB（熱插拔 SAS/SATA） |
| 最大硬盤數量 | 多達 8 個 2.5 英寸熱插拔 SAS/SATA 硬盤驅動器或固態驅動器 |
| 內存提示 | ECC |
| 支持內存容量范圍 | 利用 18 個 DIMM 插槽 288GB DDR-3 RDIMM，或利用 12 個 DIMM 插槽 48GB DDR-3 UDIMM |
| 內存插槽數量 | 18 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 460W、675W、675W 高效電源或 675W DC（因型號而異） |
| 單機電源數量 | 2 |
| 介質托架 | |
| 適配器插槽 | 2 個 x8 PCIe 第二代插槽和 1 個 x4 PCIe 第二代插槽 |
| 端口 | 2 個集成端口，外加 2 個可選千兆以太網端口 |
| 發布日期 | |
| 下架日期 | 2011/9/30 |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server 2008 R2 與 2008、Red Hat Enterprise Linux、SUSE Linux Enterprise Server 以及 VMware ESXi、Oracle Solaris 10（因型號而異）。 |
| 產品尺寸 | |
| 產品重量 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 3638 | 44E5178 | Intel Xeon Processor E5506 4C (2.13GHz 4MB L3 Cache 800MHz 80w) |
| 3640 | 44E5180 | Intel Xeon Processor E5530 4C (2.4GHz 8MB L3 Cache 1066MHz 80w) |
| 3641 | 44E5181 | Intel Xeon Processor X5550 4C (2.66GHz 8MB L3 Cache 1333MHz 95w) |
| 3642 | 44E5182 | Intel Xeon Processor X5560 4C (2.8GHz 8MB L3 Cache 1333MHz 95w) |
| 3643 | 44E5183 | Intel Xeon Processor X5570 4C (2.93GHz 8MB L3 Cache 1333MHz 95w) |
| 4581 | 69Y0664 | Intel Xeon Processor E5503 2C 2.0GHz 4MB Cache 800MHz 80w |
| 4582 | 69Y0665 | Intel Xeon Processor E5507 4C 2.26GHz 4MB Cache 800MHz 80w |
| 4583 | 69Y0666 | Intel Xeon Processor L5609 4C 1.86GHz 12MB Cache 1066MHz 40w |
| 4584 | 69Y0667 | Intel Xeon Processor L5630 4C 2.13GHz 12MB Cache 1066MHz 40w |
| 4585 | 69Y0668 | Intel Xeon Processor L5640 6C 2.26GHz 12MB Cache 1333MHz 60w |
| 4586 | 69Y0669 | Intel Xeon Processor E5620 4C 2.40GHz 12MB Cache 1066MHz 80w |
| 4587 | 69Y0670 | Intel Xeon Processor E5630 4C 2.53GHz 12MB Cache 1066MHz 80w |
| 4588 | 69Y0671 | Intel Xeon Processor E5640 4C 2.66GHz 12MB Cache 1066MHz 80w |
| 4589 | 69Y0672 | Intel Xeon Processor X5650 6C 2.66GHz 12MB Cache 1333MHz 95w |
| 4590 | 69Y0673 | Intel Xeon Processor X5660 6C 2.80GHz 12MB Cache 1333MHz 95w |
| 4591 | 69Y0674 | Intel Xeon Processor X5670 6C 2.93GHz 12MB Cache 1333MHz 95w |
| 4592 | 69Y0675 | Intel Xeon Processor X5667 4C 3.06GHz 12MB Cache 1333MHz 95w |
| 4593 | 69Y0676 | Intel Xeon Processor X5677 4C 3.46GHz 12MB Cache 1333MHz 130w |
| 4594 | 69Y0677 | Intel Xeon Processor X5680 6C 3.33GHz 12MB Cache 1333MHz 130w |
| 4595 |
59Y3258 59Y4001 |
Addl Intel Xeon Proc. E5503 2C 2.00GHz 4MB Cache 800MHz 80w |
| 4596 |
59Y3259 59Y4002 |
Addl Intel Xeon Proc. E5507 4C 2.26GHz 4MB Cache 800MHz 80w |
| 4597 |
59Y3263 59Y4003 |
Addl Intel Xeon Proc. L5609 4C 1.86GHz 12MB Cache 1066MHz 40w |
| 4598 |
59Y3264 59Y4004 |
Addl Intel Xeon Proc. L5630 4C 2.13GHz 12MB Cache 1066MHz 40w |
| 4599 |
59Y3265 59Y4005 |
Addl Intel Xeon Proc. L5640 6C 2.26GHz 12MB Cache 1333MHz 60w |
| 4600 |
59Y3266 59Y4006 |
Addl Intel Xeon Proc. E5620 4C 2.40GHz 12MB Cache 1066MHz 80w |
| 4601 |
59Y3267 59Y4007 |
Addl Intel Xeon Proc. E5630 4C 2.53GHz 12MB Cache 1066MHz 80w |
| 4602 |
69Y1517 59Y4008 |
Addl Intel Xeon Proc. E5640 4C 2.66GHz 12MB Cache 1066MHz 80w |
| 4603 |
69Y1518 59Y4009 |
Addl Intel Xeon Proc. X5650 6C 2.66GHz 12MB Cache 1333MHz 95w |
| 4604 |
69Y1519 59Y4010 |
Addl Intel Xeon Proc. X5660 6C 2.80GHz 12MB Cache 1333MHz 95w |
| 4605 |
69Y1520 59Y4011 |
Addl Intel Xeon Proc. X5670 6C 2.93GHz 12MB Cache 1333MHz 95w |
| 4606 |
69Y1521 59Y4012 |
Addl Intel Xeon Proc. X5667 4C 3.06GHz 12MB Cache 1333MHz 95w |
| 4607 |
69Y1522 59Y4013 |
Addl Intel Xeon Proc. X5677 4C 3.46GHz 12MB Cache 1333MHz 130w |
| 4608 |
69Y1523 59Y4014 |
Addl Intel Xeon Proc. X5680 6C 3.33GHz 12MB Cache 1333MHz 130w |
| 6990 | 46M1035 | Intel Xeon Processor E5504 4C (2.0GHz 4MB L3 Cache 800MHz 80w) |
| 6991 | 46M1036 | Intel Xeon Processor E5520 4C (2.26GHz 8MB L3 Cache 1066MHz 80w) |
| 6993 | 46M1038 | Intel Xeon Processor E5540 4C (2.53GHz 8MB L3 Cache 1066MHz 80w) |
| 7696 |
69Y4427 59Y3958 |
Addl Intel Xeon Proc. X5560 4C 2.80GHz 8MB Cache 1333MHz 95w |
| 7697 |
69Y4424 59Y3960 |
Addl Intel Xeon Proc. E5504 4C 2.00GHz 4MB Cache 800MHz 80w |
| 7698 |
69Y4425 59Y3963 |
Addl Intel Xeon Proc. E5540 4C 2.53GHz 8MB Cache 1066MHz 80w |
| 7699 |
69Y4426 59Y3957 |
Addl Intel Xeon Proc. X5550 4C 2.66GHz 8MB Cache 1333MHz 95w |
| 7731 |
59Y3260 59Y3954 |
Addl Intel Xeon Proc. E5506 4C 2.13GHz 4MB Cache 800MHz 80w |
| 7732 |
59Y3261 59Y3956 |
Addl Intel Xeon Proc. E5530 4C 2.40GHz 8MB Cache 1066MHz 80w |
| 7733 |
59Y3268 59Y3959 |
Addl Intel Xeon Proc. X5570 4C 2.93GHz 8MB Cache 1333MHz 95w |
| 7745 |
59Y3262 59Y3961 |
Addl Intel Xeon Proc. E5520 4C 2.26GHz 8MB Cache 1066MHz 80w |
| A0Z6 | 81Y6505 | Intel Xeon Processor E5645 6C 2.40GHz 12MB Cache 1333MHz 80W |
| A0Z7 | 81Y6506 | Intel Xeon Processor E5603 4C 1.60GHz 4MB Cache 1066MHz 80W |
| A0Z8 | 81Y6507 | Intel Xeon Processor E5606 4C 2.13GHz 8MB Cache 1066MHz 80W |
| A0Z9 | 81Y6508 | Intel Xeon Processor E5607 4C 2.26GHz 8MB Cache 1066MHz 80W |
| A0ZA | 81Y6509 | Intel Xeon Processor X5647 4C 2.93GHz 12MB Cache 1066MHz 130W |
| A0ZB | 81Y6510 | Intel Xeon Processor E5649 6C 2.53GHz 12MB Cache 1333MHz 80W |
| A0ZC | 81Y6511 | Intel Xeon Processor X5672 4C 3.20GHz 12MB Cache 1333MHz 95w |
| A0ZD | 81Y6512 | Intel Xeon Processor X5675 6C 3.06GHz 12MB Cache 1333MHz 95W |
| A0ZE | 81Y6513 | Intel Xeon Processor X5687 4C 3.60GHz 12MB Cache 1333MHz 130 |
| A0ZF | 81Y6514 | Intel Xeon Processor X5690 6C 3.46GHz 12MB Cache 1333MHz 130 |
| A0ZM |
81Y6525 81Y6547 |
Addl Intel Xeon Proc. E5645 6C 2.40GHz 12MB Cache 1333MHz 80W |
| A0ZN |
81Y6526 81Y6548 |
Addl Intel Xeon Proc. E5603 4C 1.60GHz 4MB Cache 1066MHz 80W |
| A0ZP |
81Y6527 81Y6549 |
Addl Intel Xeon Proc. E5606 4C 2.13GHz 8MB Cache 1066MHz 80W |
| A0ZQ |
81Y6528 81Y6550 |
Addl Intel Xeon Proc. E5607 4C 2.26GHz 8MB Cache 1066MHz 80W |
| A0ZR |
81Y6529 81Y6551 |
Addl Intel Xeon Proc. X5647 4C 2.93GHz 12MB Cache 1066MHz 130W |
| A0ZS |
81Y6530 81Y6552 |
Addl Intel Xeon Proc. E5649 6C 2.53GHz 12MB Cache 1333MHz 80W |
| A0ZT |
81Y6531 81Y6553 |
Addl Intel Xeon Proc. X5672 4C 3.20GHz 12MB Cache 1333MHz 95W |
| A0ZU |
81Y6532 81Y6554 |
Addl Intel Xeon Proc. X5675 6C 3.06GHz 12MB Cache 1333MHz 95W |
| A0ZV |
81Y6533 81Y6555 |
Addl Intel Xeon Proc. X5687 4C 3.60GHz 12MB Cache 1333MHz 130W |
| A0ZW |
81Y6534 81Y6556 |
Addl Intel Xeon Proc. X5690 6C 3.46GHz 12MB Cache 1333MHz 130W |
| 內存 | ||
| 1707 |
46C7477 46C7483 |
16GB (1x16GB, 4Rx4, 1.5V) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 1712 |
44T1587 44T1592 |
2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 1713 |
44T1597 44T1599 |
4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 1907 |
46C0585 46C7445 46C7449 46C7453 |
8GB (1x8GB) Dual Rank PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 1914 |
44T1565 44T1569 |
2GB (1x2GB, 2Rx8, 1.5V) PC3-10600 ECC DDR3 1333Mhz LP UDIMM |
| 3893 |
49Y1374 49Y1392 |
2GB (1x2GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 3894 |
49Y1376 49Y1394 |
4GB (1x4GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8648 |
49Y1386 49Y1404 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 8921 |
49Y1380 49Y1398 |
8GB (1x8GB, 2Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 8923 |
49Y1379 49Y1397 |
8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8934 |
46C0594 49Y1433 |
2GB (1x2GB, 2Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8935 |
46C0595 49Y1434 |
2GB (1x2GB, 1Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8936 |
46C0596 49Y1435 |
4GB (1x4GB, 2Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8937 |
46C0597 49Y1436 |
8GB (1x8GB, 2Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8939 |
49Y1382 49Y1400 |
16GB (1x16GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 8940 |
49Y1387 49Y1405 |
2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8941 |
49Y1388 49Y1406 |
4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8942 |
49Y1389 49Y1407 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| A0QS |
49Y1385 49Y1403 |
2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 ECC DDR3 1333MHz LP UDIMM |
| A1QT |
49Y1562 49Y1563 |
16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 硬盤 | ||
| 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD SFF | |
| 3745 |
43W7715 43W7714 |
IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD |
| 5197 | 43W7731 | 50 GB Simple Swap SATA SSD |
| 5405 |
42D0749 42D0747 |
IBM 160GB 7200 SATA 2.5" SFF Slim-HS HDD |
| 5407 |
42D0752 42D075342D0754 |
IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD |
| 5409 |
42D0709 42D0707 |
IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD SFF |
| 5412 |
44W2296 44W2294 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5413 |
44W2266 44W2264 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5433 |
49Y2005 49Y2003 |
IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5522 |
42D0674 42D0672 |
IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5536 |
42D0679 42D0677 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5537 |
42D0634 42D0632 42D0633 |
IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5599 |
42D0639 42D0637 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| A1AV |
81Y9730 81Y9732 |
IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD SFF |
| A1NX |
81Y9724 81Y9722 |
IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A1NZ |
81Y9728 81Y9726 |
IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A282 |
81Y9652 81Y9650 |
IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD |
| A283 |
81Y9672 81Y9670 |
IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD |
| A2FN |
43W7719 43W7718 |
IBM 200GB SATA 2.5" MLC HS SSd SFF |
| A2U3 |
90Y8645 90Y8643 |
IBM 256GB SATA 2.5" MLC HS Entry SSD SFF |
| A2U4 |
90Y8650 90Y8648 |
IBM 128GB SATA 2.5" MLC HS Entry SSD SFF |
| RAID卡 | ||
| 93 |
46M0850 46M0829 |
ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 94 |
46M0853 46M0830 |
ServeRAID M5025 SAS/SATA Controller - PCI-E x8 |
| 95 |
46M0862 46M0831 |
ServeRAID M1015 SAS/SATA Controller |
| 3559 |
43W4340 44E8825 43W4339 |
ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3571 |
43W4298 43W4296 |
ServeRAID-MR10i SAS/SATA Controller - PCI-E x8 |
| 3577 |
44E8692 44E8689 |
ServeRAID-BR10i SAS/SATA Controller |
| 3877 |
46M0922 46M0916 46M0918 |
ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 3889 |
46M0971 46M0969 |
ServeRAID B5015 SSD Controller Half x8 PCI-E |
| 9742 |
49Y4738 49Y4731 |
ServeRAID-BR10il SAS/SATA Controller v2 - PCI-E x4 |
| A2NF |
90Y4306 90Y4304 |
ServeRAID M5016 SAS/SATA Controller |
| 網卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 1648 | 49Y4200 | Emulex 10Gb Dual-port Ethernet Adapter for IBM System x |
| 2944 |
39Y6129 39Y6126 |
PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 |
39Y6138 39Y6139 39Y6136 |
PRO/1000 PT Quad Port Server Adapter |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 3585 |
44X0137 46M1076 |
Dual port 1Gb Ethernet Daughter Card n/a n/a Dedicated |
| 3596 | 46M2198 | Mellanox ConnectX Dual-Port 4X QDR IB x8 |
| 5446 | 81Y1530 | Mellanox ConnectX-2 VPI Single-port QSFP QDR IB/10GbE PCI-E 2.0 HCA |
| 5447 | 81Y1534 | Mellanox ConnectX-2 VPI Dual-port QSFP QDR IB/10GbE PCI-E 2.0 HCA |
| 5448 | 81Y1538 | Mellanox ConnectX-2 EN Dual-port SFP+ 10GbE PCI-E 2.0 Adapter |
| 5451 |
42C1792 42C1793 42C1790 |
NetXtreme II 10 GigE Express Fiber SR Adapter |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5763 | 59Y1887 | QLogic QLE7340 single-port 4X QDR IB x8 |
| 5766 |
49Y4223 49Y4220 |
NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 |
49Y4233 49Y4230 |
Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 |
49Y4243 49Y4240 |
Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| A18Y |
49Y7913 49Y7910 |
Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x |
| A18Z |
49Y7953 49Y7950 |
Emulex 10GbE Virtual Fabric Adapter II for IBM System x |
| A1M4 |
81Y9991 81Y9990 |
Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x |
| A2EC |
49Y7963 49Y7960 |
Intel x520 Dual Port 10GbE SFP+ Adapter for IBM System x |
| A2F6 | 95Y3450 | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA |
| A2F7 | 95Y3454 | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA |
| A2F8 | 95Y3458 | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter |
| A2V3 |
90Y9353 90Y9352 |
Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x |
| A2V4 |
90Y9371 90Y9370 |
Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x |
| 適配卡 | ||
| 81Y4527 | 1.28TB High IOPS MLC Duo Adapter For IBM | |
| 81Y4531 | 640GB High IOPS MLC Adapter For IBM | |
| 81Y4535 | 320GB High IOPS Slc Adapter For IBM | |
| 81Y4539 | 640GB High IOPS Slc Duo Adapter For IBM | |
| 69 |
49Y4217 49Y4216 42C1819 |
Brocade 10Gb SFP+ SR Optical Transceiver |
| 96 |
46M0888 46M0877 |
IBM 160GB High IOPS SS Class SSD PCIe adapter. |
| 1649 |
46M0900 46M0898 |
IBM 320GB High IOPS MS Class SSD PCIe Adapter. |
| 1899 | 43V5891 | NVIDIA Quadro FX 580 Graphics Card |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 |
39Y6148 39Y6149 39Y6146 |
QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 |
42C1772 42C1773 42C1770 |
QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 |
44E8702 44E8700 |
IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 5982 |
68Y7355 46M0907 |
IBM 6Gb SAS HBA |
| 5985 |
68Y7383 81Y4519 |
640GB High IOPS MLC Duo Adapter for IBM |
| A1NQ | 81Y9998 | 2U Bracket for Mellanox ConnectX-2 Dual Port 10GbE Adapter |
| A1XL |
81Y4493 81Y4492 |
ServeRAID H1110 SAS/SATA Controller for IBM System x |
| A2MY |
95Y3767 95Y3750 |
Mellanox ConnectX-2 Dual-port QSFP QDR IB |
| 光纖卡 | ||
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 電源 | ||
| 21301RX | IBM UPS3000 LV | |
| 21302RX | IBM UPS3000 HV | |
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24195KX | IBM UPS5000 HV | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 40K9620 | IBM UPS3000 Ebm | |
| 53953AX | IBM 3000VA LCD 3U Rack UPS (100V/120V) | |
| 53953JX | IBM 3000VA LCD 3U Rack UPS (200V/208V) | |
| 53956AX | IBM 6000VA LCD 4U Rack UPS (200V/208V) | |
| 53956KX | IBM 6000VA LCD 4U Rack UPS (230V) | |
| 53959KX | IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) | |
| 2100 |
44X0147 46M1075 |
IBM 675W Redundant AC Power Supply |
| 4780 |
59Y4054 69Y1510 |
IBM 675W Redundant -48V DC Power Supply |
| A0ZG |
81Y6535 81Y6557 |
IBM 675W High Efficiency Redundant AC Power Supply |
| A0ZH |
81Y6536 81Y6558 |
IBM 460W Redundant Power Supply Unit |
| 電池 | ||
| 5744 |
46M0857 46M0917 |
ServeRAID M5000 Series Battery Assembly |
| 5864 |
44E8840 44E8826 |
ServeRAID-MR10i Li-Ion Battery |
| 光驅 | ||
| 4161 |
44W3251 46M0901 |
IBM UltraSlim Enhanced SATA DVD-ROM |
| 4163 |
44W3253 46M0902 |
IBM UltraSlim Enhanced SATA Multi-Burner |
| 磁帶機 | ||
| 3572-Sxx | IBM System Storage TS2900 Tape Autoloader | |
| 3573-xxx | IBM System Storage TS3100/TS3200 Tape Library (all models) | |
| 3576-xxx | IBM System Storage TS3310 Modular Tape Library (all models) | |
| 3580-S3x | IBM System Storage TS2230 Tape Drive Express Model | |
| 3580-S4x | IBM System Storage TS2240 Tape Drive Model S4E | |
| 3584-xxx | IBM System Storage TS3500 Tape Library (all models) | |
| 3628L3X | IBM Half High LTO Gen 3 External SAS Tape Drive | |
| 3628L4X | IBM Half High LTO Gen 4 External SAS Tape Drive | |
| 3628L5X | IBM Half High LTO Gen 5 External SAS Tape Drive | |
| 87651UX | 1U Tape Drive Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 5392 |
43W8487 43W8480 |
IBM DDS Gen 5 SATA Tape Drive10 3.5" systems |
| 5393 |
43W8490 43W8478 |
IBM Half High LTO Gen 3 SAS Tape Drive |
| 5395 |
43W8492 39M5636 |
IBM DDS Gen 6 USB Tape Drive |
| 5397 |
44E8897 44E8895 |
IBM Half-high LTO Gen 4 SAS Tape Drive |
| 5711 |
49Y9880 46C5399 |
IBM DDS Generation 5 USB Tape Drive |
| 線纜 | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 40K9614 | IBM DPI 30a Cord (NEMA L6-30P) | |
| 40K9615 | IBM DPI 60a Cord (IEC 309 2P+G) | |
| 40K9772 | C19 4.3 meter Line Cord - NEMA L6-20P | |
| 3701 | 40K9805 | 5m LC-LC Fiber Cable (networking) |
| 3702 | 40K9806 | 25m LC-LC Fiber Cable (networking) |
| 3704 |
13N1943 39M5697 |
5m LC-LC Fiber Cable |
| 3705 |
13N1944 39M5698 |
25m LC-LC Fiber Cable |
| 3791 | 40K8932 | 0.6m Yellow Cat5e Cable |
| 3792 | 40K8935 | 1.5m Yellow Cat5e Cable |
| 3793 | 40K8960 | 3m Yellow Cat5e Cable |
| 3794 | 40K8939 | 10m Yellow Cat5e Cable |
| 3795 | 40K8941 | 25m Yellow Cat5e Cable |
| 3796 | 40K8963 | 0.6m Green Cat5e Cable |
| 3797 | 40K5627 | 1.5m Green Cat5e Cable |
| 3798 | 40K5791 | 3m Green Cat5e Cable |
| 3799 | 40K5792 | 10m Green Cat5e Cable |
| 3800 | 40K8868 | 25m Green Cat5e Cable |
| 3801 | 40K8949 | 0.6m Blue Cat5e Cable |
| 3802 | 40K5564 | 1.5m Blue Cat5e Cable |
| 3803 | 40K8936 | 3m Blue Cat5e Cable |
| 3804 | 40K8926 | 10m Blue Cat5e Cable |
| 3805 | 40K8929 | 25m Blue Cat5e Cable |
| 5862 |
44E8837 68Y7396 |
Remote Battery Cable |
| 6316 | 39Y5532 | Rack power cable - 2.0m, 125-250V, C13 to IEC 320-C14 (WW) |
| A1RF | 46M2590 | 10A/250V C13 to NEMA 6-15P 2.8m line cord |
| 其它 | ||
| 14102RX | IBM 25RU standard rack | |
| 14104RX | IBM 42U S2 standard rack | |
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| 17235RX | IBM Rack Keyboard Tray | |
| 17237RX | IBM 19" Fixed Shelf Option | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354GX | Global 4x16 Console Mngr (GCM4) | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 17401xx | IBM TotalStorage DS4000 EXP700 Expansion Unit (all models) | |
| 17407xx | IBM TotalStorage DS4000 EXP710 Storage Expansion Unit (all models) | |
| 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | |
| 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | |
| 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | |
| 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | |
| 174712X | IBM System Storage EXP2512 Express Storage Enclosure | |
| 174724X | IBM System Storage EXP2524 Express Storage Enclosure | |
| 1754A1X | IBM Local 1X8 Console Manager | |
| 1754A2X | IBM Local 2X16 Console Manager | |
| 1754D1X | IBM Global 2X2X16 Console Manager | |
| 1754D2X | IBM Global 4X2X32 Console Manager | |
| 18128xx | IBM System Storage EXP810 Storage Expansion Unit (all models) | |
| 18147Vx | IBM System Storage DS4200 Midrange Disk System (all models) | |
| 18147xx | IBM System Storage DS4700 Midrange Disk System (all models) | |
| 18149xx | IBM System Storage DS3950 Express | |
| 18158xx | IBM System Storage DS4800 Midrange Disk System (all models) | |
| 181851x | IBM System Storage DS5100 Midrange Disk System (all models) | |
| 181853x | IBM System Storage DS5300 Midrange Disk System (all models) | |
|
2107-92E 9AE |
IBM TotalStorage DS8000 Expansion Unit 2107 model 92E/9AE | |
| 2107-xxx | IBM TotalStorage DS8100 2107 (all models) | |
| 362516X | IBM RDX 160 GB External USB Drive | |
| 362532X | IBM RDX 320 GB External USB Drive | |
| 362550X | IBM RDX 500 GB External USB Drive | |
| 39M2816 | IBM Dpi C13 PDU+ | |
| 39M2818 | IBM Dpi C19 PDU+ | |
| 39M2819 | IBM DPI C19 3 phase PDU+ | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 46C5364 | IBM RDX160 Internal USB Bundle | |
| 46C5387 | IBM RDX320 Internal USB Bundle | |
| 46C5388 | IBM RDX500 Internal USB Bundle | |
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4110 | IBM LCD UPS Network Management Card | |
| 46M4116 | IBM 0U 24 C13 Switched and Monitored 30A PDU | |
| 46M4125 | IBM 0U 24 C13 30A 3 Phase PDU | |
| 46M4128 | IBM 0U 24 C13 30A PDU | |
| 46M4134 | IBM 0U 12 C19/12 C13 Switched and Monitored 50A 3 Phase PDU | |
| 46M4140 | IBM 0U 12 C19/12 C13 50A 3 Phase PDU | |
| 46M4167 | 1U Switch. and Monit. PDU 9 C19 / 3 C13 3ph 30A fixed 4.3m L21-30P. | |
| 59Y3952 | IBM System x3550 M3 R2 ODD Kit | |
| 59Y3992 | IBM System x3550 M3 R2 plus 4 HDD Kit w/8 HDD Bezel | |
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| 73P5847 | DPI 60A/208v 3-Phase High Density C19 PDU w/IEC309 3P+Gnd Connector | |
| 93061RX | NetBAY11 Standard Rack | |
| 93072PX | IBM S2 25U Static Base Cabinet | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 93084EX | IBM 42U Enterprise Expansion Rack | |
| 93084PX | IBM 42U Enterprise Rack | |
| 93604EX | IBM 42U 1200mm Deep Dynamic Expansion Rack | |
| 93604PX | IBM 42U 1200mm Deep Dynamic Rack | |
| 93614EX | IBM 42U 1200mm Deep Static Expansion Rack | |
| 93614PX | IBM 42U 1200mm Deep Static Rack | |
| 93624EX | IBM 47U 1200mm Deep Static Expansion Rack | |
| 93624PX | IBM 47U 1200mm Deep Static Rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 1776 |
46M4989 41Y8278 |
IBM USB Memory Key for VMware ESXi 47 |
| 1792 |
59Y3972 59Y3951 |
IBM System x3550 M3 plus 4 HDD Kit |
| 2018 | IBM 11U Office Enablement Kit | |
| 3033 | IBM USB Memory Key for VMware ESXi 4.1 | |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3757 |
39Y8072 43V6147 |
IBM Single Cable USB Conversion Option (UCO) |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 3876 |
46M0914 46M0912 |
IBM 6Gb Performance Optimized HBA |
| 4042 | 44X0080 | Power Supply Blank Filler |
| 4178 |
69Y4403 69Y5067 |
Universal Slides Kit |
| 5080 |
43V6923 46C7526 |
IBM Virtual Media Key |
| 5106 |
46M0932 46M0930 |
ServeRAID M5000 Series Advance Feature Key |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 5715 | 49Y4278 | Emulex VFA II FCoE/iSCSI License for IBM System x |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 |
40K9492 40K9201 |
IBM 3 Button Optical Mouse - Black - USB |
| 9749 |
46M0865 46M0832 |
ServeRAID M1000 Series Advance Feature |
| A10C |
81Y4428 81Y4426 |
ServeRAID M5000 Series Performance Accelerator Key |
| A1NP |
46M4990 41Y8296 |
IBM USB Memory Key for VMware ESXi 4.1 |
| A2G0 |
41Y8298 41Y8306 |
IBM Blank USB Memory Key for VMWare ESXi Downloads |
| A2VC |
94Y9770 41Y8300 |
IBM USB Memory Key for VMWare ESXi 5.0 |
