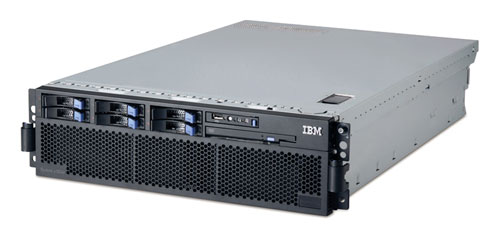

IBM X3850 (8864)
| 整機信息 | |
| 名稱 | IBM System x3850 |
| 型號 | 8864 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | Intel Xeon Processor MP up to 3.66 GHz (single-core) and 3.30 GHz (dual-core)/667 MHz front-side bus. |
| CPU類型 | Xeon MP |
| CPU插槽數 | 4 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 3U |
| 硬盤信息 | 最大硬盤容量: 440.4GB |
| 最大硬盤數量 | 6 |
| 內存提示 | DDR2 |
| 支持內存容量范圍 | 最大內存容量: 64GB |
| 內存插槽數量 | |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 電源功率: 1300W |
| 單機電源數量 | 2 |
| 介質托架 | DVD/CD-RW Combo |
| 適配器插槽 | 兩個PCI-X 2.0/266 MHz 和四個PCI-Express x8 |
| 端口 | Video、1 個 USB (front)、2 個 RJ-45、2 個串口、2 個 USB 2.0(后面)、鍵盤、鼠標、RS485 IXA |
| 發布日期 | |
| 下架日期 | |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server 2003(標準版和企業版、32 位和 64 位)、Red Hat Linux、SUSE Linux、Microsoft Windows 2000(服務器版和高級服務器版)、VMWare ESX Server |
| 產品尺寸 | 128.4×442×701mm |
| 產品重量 | 最大37.6Kg |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 1339 | 42D3577 | Addl Intel Xeon Processor 7110N (2.5GHz 4MB L3 Dual Core) |
| 1340 |
40K1260 42D3359 42D3501 |
Intel Xeon Processor 7120N (3.0GHz 4MB L3 Dual Core) |
| 1341 |
42D3361 42D3503 40K1261 |
Intel Xeon Processor 7130N (3.16GHz 8MB L3 Dual Core) |
| 1342 |
42D3363 42D3505 40K1262 |
Intel Xeon Processor 7140N (3.3GHz 16MB L3 Dual Core) |
| 1410 |
40K1259 42D3357 42D3576 |
Intel Xeon Processor 7110N (2.5GHz 4MB L3 Dual Core) |
| 1411 | 42D3502 | Addl Intel Xeon Processor 7120N (3.0GHz 4MB L3 Dual Core) |
| 1412 | 42D3504 | Addl Intel Xeon Processor 7130N (3.16GHz 8MB L3 Dual Core) |
| 1413 |
42D3506 40K1262 |
Addl Intel Xeon Processor 7140N (3.3GHz 16MB L3 Dual Core) |
| 2807 |
43V4551 43V4553 43W9473 |
Intel Xeon Processor 7150N (3.5GHz 16MB L3 Dual Core) |
| 3453 | 43V4552 | Addl Intel Xeon Processor 7150N (3.5GHz 16MB L3 Dual Core) |
| 系統板 | ||
| 40K0282 | System board. | |
| 41Y3152 | I/O board | |
| 41Y3188 | Power backplane | |
| 4338 |
39R9502 41Y5000 |
4-DIMM DDR2 Memory Card |
| 內存 | ||
| 30R5145 | 8GB (2x4GB kit) PC2-3200 CL3 ECC DDR2 Chipkill SDRAM RDIMM | |
| 39M5809 | 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb) | |
|
39M5812 73P2867 |
4GB (2x2GB Kit) PC2-3200 Dual Rank CL3 ECC DDR2 SDRAM RDIMM | |
| 535 |
30R5146 30R5147 41Y2857 |
4GB PC2-3200R CL3 ECC DDR2 SDRAM RDIMM |
| 552 |
39M5807 39M5808 |
1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM |
| 553 |
39M5810 39M5811 |
2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM |
| 硬盤 | ||
| 39R7364 | IBM 36 GB 10 000 rpm 2.5 inch SAS hard drive (optional) | |
| 39R7366 | IBM 73 GB 10 000 rpm 2.5 inch SAS hard drive (optional) | |
|
40K1052 39R7366 |
73GB 10K 2.5" Hot-Swap SAS HDD | |
| 5534 |
43X0824 43X0825 43X0826 |
146GB 10K 2.5" Hot-Swap SAS HDD |
| 5543 |
43X0841 43X0837 43X0839 |
73GB SAS 15K 2.5" SFF HS |
| RAID卡 | ||
| 1672 |
13N2227 25R8123 39R8729 39R8731 |
ServeRAID 8i SAS RAID Controller |
| 1684 |
39R8767 39R8765 |
IBM ServeRAID-8s SAS PCIe Controller |
| 1685 |
32P0033 39R8819 39R8815 |
IBM ServeRAID-6M Ultra320 SCSI Controller (128MB Cache) |
| 1686 |
02R0988 39R8820 39R8816 |
IBM ServeRAID-6M Ultra320 SCSI Controller (256MB Cache) |
| 1690 |
39R8851 39R8850 |
MegaRAID 8480 |
| SCSI卡 | ||
| 1680 |
39R8752 39R8743 |
Ultra320 SCSI Controller 2 |
| 網卡 | ||
| 1478 |
39Y6082 39Y6079 |
NetXtreme 1000 T + Ethernet Adapter- PCI-X |
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1486 |
39Y6101 39Y6098 |
NetXtreme 1000 Express G Ethernet Adapter |
| 1487 |
39Y6091 39Y6088 |
NetXtreme 1000 S + Ethernet Adapter |
| 1488 |
31P9601 39Y6108 39Y6105 |
PRO/1000 GT Server Adapter by Intel |
| 2944 |
39Y6129 39Y6126 |
PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 |
39Y6138 39Y6139 39Y6136 |
PRO/1000 PT Quad Port Server Adapter |
| 2978 |
42C1762 42C1763 42C1760 |
IBM 10 GbE PCIe SR Server Adapter |
| 適配卡 | ||
| 13N0833 | RSA-II adapter | |
| 25R8060 | IBM SAS HBA Controller2 | |
| 41Y3153 | Memory card | |
| 43W4325 | SCSI adapter, Havana 3U | |
| 1605 |
39Y9567 39Y9566 73P9341 |
Remote Supervisor Adapter II Slimline |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 光纖卡 | ||
| 13N1873 | IBM SMB 2-Gbps Fibre Channel HBA | |
| 39M5894 | DS4000 FC 4Gbps - PCI-X Single Port HBA | |
| 39M5895 | DS4000 FC 4Gbps - PCI-X Dual Port HBA | |
| 42D0405 | Emulex 4Gb FC Single-Port PCI-X HBA for IBM System x | |
| 42D0407 | Emulex 4Gb FC Dual-Port PCI-X HBA for IBM System x | |
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 電源 | ||
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24R2723 | Power supply 1300W. | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 電池 | ||
| 25R8118 | ServeRAID-8i battery pack | |
| 光驅 | ||
| 26K5427 | 24X HLDS Slim UltraBay Enhanced (optional) | |
| 39M3503 | 14X (optional) CD-RW drive | |
| 39M3529 | 127 mm Panasonic Slim UltraBay Enhanced (optional) PCC UJ-830 | |
| 39M3541 | 24/24/8/24X HLDS Slim UltraBay Enhanced (primary) (all models) | |
| 39M3559 | 24X Teac Slim UltraBay Enhanced (optional) | |
| 39M3563 | 24/24/8/24X PCC Slim UltraBay Enhanced (alternate) (all models) | |
| 39M3567 | 127 mm Panasonic Slim UltraBay Enhanced (optional) PCC UJ-840 | |
| 42C0955 | DVD drive | |
| 4144 | 32R2784 | CD-RW/DVD Combo V Ultrabay Enhanced - CD Bay |
| 磁帶機 | ||
| 33614LX | IBM LTO3 4U Tape Library2, 7 - Ultra160 | |
| 33622LX | LTO Gen 3 2U Autoloader - Ultra160 | |
| 40K2537 | 3361 Library LTO Generation | |
| 40K2579 | 3361 Library iSCSI Adapter | |
| 40K2596 | 3362 Autoloader LTO | |
| 40K2597 | 3362 Autoloader LTO | |
| 87651UX | 1U Tape Drive Enclosure | |
| 87664UX | IBM 4U Rackmount Tape Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 8768FHX | IBM Full High Tabletop Tape Enclosure | |
| 87691VX | 1U VXA-320 Tape Autoloader | |
| 5362 |
39M5624 25R0045 |
160/320GB VXA3 Tape VXA 3 Half High Internal Back-up 2 SCSI 89mm |
| 5364 |
39M5621 39M5658 |
IBM Half High LTO Gen 2 Tape Drive 2 SCSI 89mm |
| 5365 |
42C3932 39M5657 |
400/800GB LTO3 Tape |
| 磁帶 | ||
| 40K2577 | 3361 Library LTO Magazine | |
| 風扇 | ||
| 26K8805 | Heat sink | |
| 39M2693 | 80 mm Fan | |
| 39M2694 | 92 mm Fan | |
| 線纜 | ||
| 31R3130 | IBM 3M Console Switch Cable (PS/2) | |
| 其它 | ||
| 17235RX | IBM Rack Keyboard Tray | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17351LX | 1x4 port Console Switch | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17352LX | 2x8 port Console Switch | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354GX | Global 4x16 Console Mngr (GCM4) | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 18128xx | IBM System Storage EXP810 Storage Expansion Unit (all models) | |
| 18147xx | IBM System Storage DS4700 Midrange Disk System (all models) | |
| 18158xx | IBM System Storage DS4800 Midrange Disk System (all models) | |
| 26K8950 | Power supply structure | |
| 39M2896 | IBM Short KVM Conversion Option | |
| 39M2897 | IBM Long KVM Conversion Option (Long KCO) | |
| 39R6475 | 4Gb Short Wave SFP | |
| 39Y7256 | Microprocessor voltage regulator module (VRM) 10.2 (optional) | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8999 | 32A/230V 3P w/IEC309 3P+N+Gnd Conn | |
| 40K1692 | IBM External USB Floppy Drive | |
| 42C3910 | SCSI Interface & Cabling Kit | |
| 93061RX | NetBAY11 Standard Rack | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93084RX | NetBAY42 Enterprise Rack Cabinet | |
| 93084XX | NetBAY42 Enterprise Expansion Rack Cabinet (EX) | |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 |
40K9492 40K9201 |
IBM 3 Button Optical Mouse - Black - USB |
