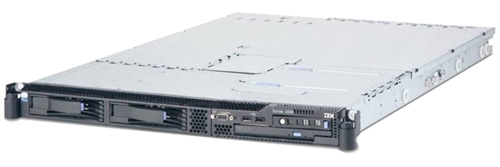

IBM X3550 (7978)
| 整機信息 | |
| 名稱 | IBM System x3550 |
| 型號 | 7978 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | Dual-Core Intel Xeon Processor 5160 up to 3.0GHz and up to 1333MHz frontside bus or Quad-Core Intel Xeon Processor E5320 up to 1.86GHz and up to 1066MHz frontside bus |
| CPU類型 | Intel 至強 5400 |
| CPU插槽數 | 2 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 1U |
| 硬盤信息 | 最大硬盤容量：600GB |
| 最大硬盤數量 | 4 |
| 內存提示 | DDR2 |
| 支持內存容量范圍 | 最大內存容量：32GB |
| 內存插槽數量 | 8 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 670W |
| 單機電源數量 | 2 |
| 介質托架 | DVD/CD-RW Combo |
| 適配器插槽 | 2 PCI-Express (x8) half-length, full-height or optional riser card for 1 PCI-X (64-bit 133MHz) |
| 端口 | 2 個 USB 2.0(前面)、2 Video、1 個系統管理接口(RJ-45)、2 RJ-45(ethernet)、4 USB 2.0 (back)、Serial |
| 發布日期 | |
| 下架日期 | 2009/09/30 |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server 2003、Windows 2000 Server/Advanced Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、Novell NetWare、VMware ESX Server |
| 產品尺寸 | 43×440×711mm |
| 產品重量 | 最大15.6Kg |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 1305 | 42C4213 | Dual-Core Intel Xeon Processor 5160 (3.0GHz 4MB L2 Cache) |
| 1306 | 42C4215 | Dual-Core Intel Xeon Processor 5150 (2.66GHz 4MB L2 Cache) |
| 1307 | 42C4217 | Dual-Core Intel Xeon Processor 5140 (2.33GHz 4MB L2 Cache) |
| 1308 | 42C4219 | Dual-Core Intel Xeon Processor 5130 (2.0GHz 4MB L2 Cache) |
| 1309 | 42C4221 | Dual-Core Intel Xeon Processor 5120 (1.86GHz 4MB L2 Cache) |
| 1310 | 42C4223 | Dual-Core Intel Xeon Processor 5110 (1.60GHz 4MB L2 Cache) |
| 1386 | 42C4214 | Addl Dual-Core Intel Xeon Processor 5160 (3.0GHz 4MB L2 Cache) |
| 1387 | 42C4216 | Addl Dual-Core Intel Xeon Processor 5150 (2.66GHz 4MB L2 Cache) |
| 1388 | 42C4218 | Addl Dual-Core Intel Xeon Processor 5140 (2.33GHz 4MB L2 Cache) |
| 1389 | 42C4220 | Addl Dual-Core Intel Xeon Processor 5130 (2.0GHz 4MB L2 Cache) |
| 1390 | 42C4222 | Addl Dual-Core Intel Xeon Processor 5120 (1.86GHz 4MB L2 Cache) |
| 1391 | 42C4224 | Addl Dual-Core Intel Xeon Processor 5110 (1.60GHz 4MB L2 Cache) |
| 1415 | 42D3770 | Addl Dual-Core Intel Xeon Processor 5148 (2.33GHz 4MB L2 Cache LV) |
| 1437 | 42D3798 | Addl Quad-Core Intel Xeon LV Processor L5310 (1.60GHz 1066MHz 50w) |
| 1438 | 42D3796 | Addl Quad-Core Intel Xeon Processor X5355 (2.66GHz 1333MHz 120w) |
| 1439 | 42D3792 | Addl Quad-Core Intel Xeon Processor E5345 (2.33GHz 1333MHz 80w) |
| 1440 | 42D3794 | Addl Quad-Core Intel Xeon Processor E5335 (2.0GHz 1333MHz 80w) |
| 1441 | 42D3790 | Addl Quad-Core Intel Xeon Processor E5320 (1.86GHz 1066MHz 80w) |
| 1442 | 42D3871 | Addl Quad-Core Intel Xeon Processor E5310 (1.60GHz 1066MHz 80w) |
| 2831 | 43W5906 | Quad-Core Intel Xeon LV Processor L5320 (1.86GHz 8MB L2 1066MHz 50w) |
| 2851 | 42D3769 | Dual-Core Intel Xeon Processor 5148 (2.33GHz 4MB L2 Cache LV) |
| 2884 | 42D3797 | Quad-Core Intel Xeon LV Processor L5310 (1.60GHz 8MB L2 1066MHz 50w) |
| 2885 | 42D3795 | Quad-Core Intel Xeon Processor X5355 (2.66GHz 8MB L2 1333MHz 120w) |
| 2886 | 42D3791 | Quad-Core Intel Xeon Processor E5345 (2.33GHz 8MB L2 1333MHz 80w) |
| 2887 | 42D3793 | Quad-Core Intel Xeon Processor E5335 (2.0GHz 8MB L2 1333MHz 80w) |
| 2888 | 42D3789 | Quad-Core Intel Xeon Processor E5320 (1.86GHz 8MB L2 1066MHz 80w) |
| 2889 | 42D3870 | Quad-Core Intel Xeon Processor E5310 (1.60GHz 8MB L2 1066MHz 80w) |
| 3069 | 44E5037 | Quad-Core Intel Xeon Processor X5365 (3.0GHz 8MB L2 1333MHz 120W) |
| 3369 |
44E5067 44E5074 |
Addl Quad-Core Intel Xeon Processor E5405 (2.0GHz 12MB L2 80W) |
| 3370 |
44E5068 44E5075 |
Addl Quad-Core Intel Xeon Processor E5410 (2.33GHz 12MB L2 80W) |
| 3371 |
44E5069 44E5076 |
Addl Quad-Core Intel Xeon Processor E5420 (2.5GHz 12MB L2 80W) |
| 3372 |
44E5070 44E5077 |
Addl Quad-Core Intel Xeon Processor E5430 (2.66GHz 12MB L2 80W) |
| 3373 |
44E5071 44E5078 |
Addl Quad-Core Intel Xeon Processor E5440 (2.83GHz 12MB L2 80W) |
| 3374 |
44E5072 44E5079 |
Addl Quad-Core Intel Xeon Processor E5450 (3.0GHz 12MB L2 80W) |
| 3375 |
44E5073 44E5080 |
Addl Quad-Core Intel Xeon Processor X5460 (3.16GHz 12MB L2 120W) |
| 3381 |
44E5119 44E5121 |
Addl Quad-Core Intel Xeon Processor x5450 (3.0GHz 12MB 1333MHz 120W) |
| 3391 |
44E5136 44E5138 |
Addl Dual-Core Intel Xeon Processor E5205 (1.86GHz 6MB L2 65W) |
| 3392 |
44E5135 44E5137 |
Addl Quad-Core Intel Xeon Processor L5420 (2.5GHz 12MB L2 50W) |
| 3468 | 43W5907 | Addl Quad-Core Intel Xeon LV Processor L5320 (1.86GHz 1066MHz 50w) |
| 3483 | 44E5038 | Addl Quad-Core Intel Xeon Processor X5365 (3.0GHz 1333MHz 120W) |
| 3607 | 44E5147 | Dual-Core Intel Xeon Processor E5205 (1.86GHz 6MB L2 65W) |
| 3608 | 44E5146 | Quad-Core Intel Xeon Processor L5420 (2.5GHz 12MB L2 50W) |
| 3626 |
44E5161 44E5162 |
Addl Dual-Core Intel Xeon Processor X5260 (3.33GHz 6MB 1333MHz 80W) |
| 3629 | 44E5159 | Dual-Core Intel Xeon Processor X5260 (3.33GHz 6MB L2 1333MHz 80W) |
| 3680 | 44E5058 | Quad-Core Intel Xeon Processor E5405 (2.0GHz 12MB L2 80W) |
| 3681 | 44E5059 | Quad-Core Intel Xeon Processor E5410 (2.33GHz 12MB L2 80W) |
| 3682 | 44E5060 | Quad-Core Intel Xeon Processor E5420 (2.5GHz 12MB L2 80W) |
| 3683 | 44E5061 | Quad-Core Intel Xeon Processor E5430 (2.66GHz 12MB L2 80W) |
| 3684 | 44E5062 | Quad-Core Intel Xeon Processor E5440 (2.83GHz 12MB L2 80W) |
| 3685 | 44E5063 | Quad-Core Intel Xeon Processor E5450 (3.0GHz 12MB L2 80W) |
| 3686 | 44E5064 | Quad-Core Intel Xeon Processor X5460 (3.16GHz 12MB L2 120W) |
| 3695 | 44E5116 | Quad-Core Intel Xeon Processor X5450 (3.0GHz 12MB 1333MHz 120W) |
| 4443 |
46M1030 46M1031 |
Addl Quad-Core Intel Xeon Processor X5470 (3.33GHz/1333MHz 120W) |
| 6984 | 46M1027 | Quad-Core Intel Xeon Processor X5470 (3.33GHz/1333MHz 120W) |
| 6995 | 46M1051 | Quad-Core Intel Xeon Processor LV L5430 (2.66GHz 1333MHz 50W) |
| 6996 | 46M1053 | Dual-Core Intel Xeon Processor X5270 (3.5GHz 1333MHz 6MB L2 80W) |
| 7754 |
46M1052 46M1068 |
Addl Quad-Core Intel Xeon Processor LV L5430 (2.66GHz 1333MHz 50W) |
| 7755 |
46M1054 46M1069 |
Addl Dual-Core Intel Xeon Processor X5270 (3.5GHz 1333MHz 6MB L2 80W) |
| 內存 | ||
|
38M5811 46C7419 |
4GB (2x2GB) Dual Rank PC2-5300 CL5 ECC FBD 667MHz Low Power Memory | |
| 39M5782 | 1GB (2x512MB) PC2-5300 CL5 ECC DDR2 Chipkill FB-DIMM 667MHz3 | |
| 46C7418 | 2GB (2x1GB) Single Rank PC2-5300 CL5 ECC FBD 667MHz Low Power Memory | |
|
46C7420 46C7421 |
8GB (2x4GB) Quad Rank PC2-5300 CL5 ECC FBD 667MHz Low Power Memory | |
| 542 |
39M5783 39M5784 44E3540 |
1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz4 |
| 544 |
39M5789 39M5790 46C7422 |
2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz4 |
| 546 |
39M5780 39M5781 44E3539 |
512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz3 |
| 556 |
39M5795 41Y2845 44E4402 46C7423 |
4GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz4 |
| 硬盤 | ||
|
40K1052 39R7366 |
73GB 10K 2.5" Hot-Swap SAS HDD | |
| 40K6890 | 500GB 7200 RPM HDD Cisco | |
| 41Y8208 | Express 160 GB Hot-Swap SATA II | |
| 41Y8218 | Express 500GB SimpleSwap SATA II | |
| 41Y8222 | Express 750GB SimpleSwap SATA II | |
| 41Y8226 | Express 500GB HotSwap SATA II | |
| 41Y8232 | Express 750GB Hot-Swap SATA II | |
| 43W7524 | 146GB 15K 3.5" Hot-Swap SAS HDD | |
| 43W7584 | Cisco 750GB 7200RPM HDD | |
| 43W7594 | Express 250GB Simple-Swap SATA II | |
| 43W7598 | Express 250GB Hot-Swap SATA II | |
| 5150 |
39M4523 39M4522 |
160GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5151 |
39M4527 39M4526 |
IBM 250GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5161 |
40K1075 40K1043 |
73GB 15K 3.5" Hot-Swap SAS |
| 5162 |
39R7350 40K1076 40K1044 |
146GB 15K 3.5" Hot-Swap SAS |
| 5196 |
39M4531 39M4530 39M4533 |
IBM 500GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5199 |
42D0654 42D0652 |
IBM 146GB 15K 6Gbps SAS |
| 5288 |
39M4515 39M4514 |
500GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5291 |
39M4505 39M4504 |
160GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5292 |
39M4509 39M4508 |
IBM 250GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5311 |
44W2234 44W2235 44W2236 |
IBM 300GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 5312 |
44W2241 44W2239 44W2240 |
IBM 450GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 5313 |
44W2246 44W2244 44W2245 |
IBM 600GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 5415 |
42D0784 42D0782 |
IBM 2TB 7200 Nl SATA 3.5" HS HDD |
| 5417 |
42D0769 42D0767 |
IBM 2TB 7.2K 6Gbps NL SAS 3.5" HS HDD |
| 5418 |
42D0779 42D0777 |
IBM 1TB 7.2K 6Gbps NL SAS 3.5" HS HDD |
| 5509 |
42D0612 42D0613 42D0614 |
IBM 300GB 10K 6Gbps SAS |
| 5530 |
43W7577 43W7576 |
750GB 3.5" Hot-Swap SATA II |
| 5531 |
43W7573 43W7572 |
750GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5532 |
43X0802 43X0805 43X0808 |
300GB 15K 3.5" Hot-Swap SAS |
| 5534 |
43X0824 43X0825 43X0826 |
146GB 10K 2.5" Hot-Swap SAS HDD |
| 5543 |
43X0841 43X0837 43X0839 |
73GB SAS 15K 2.5" SFF HS |
| 5560 |
43W7627 43W7626 |
IBM 1TB 7200 SATA 3.5 HS HDD |
| 5586 |
42D0521 42D0519 42D0520 |
IBM 450GB 15K SAS 3.5" HS HDD |
| RAID卡 | ||
| 25R8064 | IBM ServeRAID 8k SAS Controller | |
| 1671 |
25R8080 25R8065 |
IBM ServeRAID 8k-l SAS Controller |
| 3559 |
43W4340 44E8825 43W4339 |
ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3571 |
43W4298 43W4296 |
ServeRAID-MR10i SAS/SATA Controller - PCI-E x8 |
| 3584 |
44E8839 44E8695 44E8696 |
ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit |
| SCSI卡 | ||
| 43W4324 | IBM Ultra 320 SCSI PCIe Controller | |
| 網卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1487 |
39Y6091 39Y6088 |
NetXtreme 1000 S + Ethernet Adapter |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2944 |
39Y6129 39Y6126 |
PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 |
39Y6138 39Y6139 39Y6136 |
PRO/1000 PT Quad Port Server Adapter |
| 2978 |
42C1762 42C1763 42C1760 |
IBM 10 GbE PCIe SR Server Adapter |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 5451 |
42C1792 42C1793 42C1790 |
NetXtreme II 10 GigE Express Fiber SR Adapter |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5766 |
49Y4223 49Y4220 |
NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 |
49Y4233 49Y4230 |
Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 |
49Y4243 49Y4240 |
Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| 適配卡 | ||
| 25R8060 | IBM SAS HBA Controller2 | |
| 1481 |
30R5505 30R5501 |
IBM iSCSI Server SX Adapter Half PCI X |
| 1483 |
30R5205 30R5201 |
IBM iSCSI Server TX Adapter Half 64-bit |
| 1579 |
73P5105 73P5101 |
PRO/1000 GT Dual Port Server Adapter by Intel-PCI-X |
| 1580 |
73P5205 73P5201 |
PRO/1000 GT Quad Port Server Adapter by Intel-PCI-X |
| 1605 |
39Y9567 39Y9566 73P9341 |
Remote Supervisor Adapter II Slimline |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 |
39Y6148 39Y6149 39Y6146 |
QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 |
42C1772 42C1773 42C1770 |
QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 |
44E8702 44E8700 |
IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 4288 |
32R2798 32R2816 |
PCI-X Riser Card |
| 4317 | 39Y6744 | PCI-E Riser Card |
| 光纖卡 | ||
| 39M5894 | DS4000 FC 4Gbps - PCI-X Single Port HBA | |
| 39M5895 | DS4000 FC 4Gbps - PCI-X Dual Port HBA | |
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 電源 | ||
| 21301RX | IBM UPS3000 LV | |
| 21302RX | IBM UPS3000 HV | |
| 21304RX | IBM UPS 10000Xhv | |
| 2130R30 | IBM UPS3000XLU 100-127V (US LV cord) | |
| 2130R6X | IBM UPS1500thv | |
| 24195KX | IBM UPS5000 HV | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 42D3642 | x3550 DC Redundant Power Supply 670W | |
| 1964 |
32R2810 32R2815 |
x3550 Redundant Power Supply 670W2 |
| 電池 | ||
| 44E8822 | ServeRAID Remote Battery Mount | |
| 5700 |
43W4302 43W4299 |
ServeRAID-MR10i Battery |
| 5864 |
44E8840 44E8826 |
ServeRAID-MR10i Li-Ion Battery |
| 光驅 | ||
| 4141 | 32R2899 | CDROM Ultrabay Enhanced Drive |
| 4143 |
32R2901 43W8304 |
Multi-Burner Ultrabay Enhanced Drive |
| 4144 | 32R2784 | CD-RW/DVD Combo V Ultrabay Enhanced - CD Bay |
| 磁帶機 | ||
| 3573-xxx | IBM System Storage TS3100/TS3200 Tape Library (all models) | |
| 45591UX | NetBay 1U xSeries Tape Enclosure | |
| 45594UX | 4U Rackmount SCSI Tape Enclosure | |
| 87651UX | 1U Tape Drive Enclosure | |
| 5364 |
39M5621 39M5658 |
IBM Half High LTO Gen 2 Tape Drive 2 SCSI 89mm |
| 5392 |
43W8487 43W8480 |
IBM DDS Gen 5 SATA Tape Drive10 3.5" systems |
| 5393 |
43W8490 43W8478 |
IBM Half High LTO Gen 3 SAS Tape Drive |
| 5395 |
43W8492 39M5636 |
IBM DDS Gen 6 USB Tape Drive |
| 5397 |
44E8897 44E8895 |
IBM Half-high LTO Gen 4 SAS Tape Drive |
| 線纜 | ||
| 26K4243 | DPI 63A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord | |
| 26K4244 | DPI 60A Three Phase C13 Enterprise PDU w/ IEC309 3P+G (208V) line cord | |
| 26K4245 | DPI 32A Three Phase C13 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord | |
| 26K4257 | DPI 63A Single Phase C19 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord | |
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 其它 | ||
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| 17241xx | IBM TotalStorage DS4100 Midrange Disk | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 1735L04 | NetBAY Local Console Manager | |
| 1735R16 | NetBAY Remote Console Manager | |
| 17421xx | TotalStorage DS4400 Midrange Disk System (all | |
| 17429xx | IBM TotalStorage DS4500 Midrange Disk System (all models) | |
| 1750-511 | IBM TotalStorage DS6800 1750 model 511 | |
| 1754D1X | IBM Global 2X2X16 Console Manager | |
| 1754D2X | IBM Global 4X2X32 Console Manager | |
| 18147Vx | IBM System Storage DS4200 Midrange Disk System (all models) | |
| 18147xx | IBM System Storage DS4700 Midrange Disk System (all models) | |
| 18158xx | IBM System Storage DS4800 Midrange Disk System (all models) | |
| 2107-xxx | IBM TotalStorage DS8100 2107 (all models) | |
| 362516X | IBM RDX 160 GB External USB Drive | |
| 362532X | IBM RDX 320 GB External USB Drive | |
| 362550X | IBM RDX 500 GB External USB Drive | |
| 39M2816 | IBM Dpi C13 PDU+ | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8935 | DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 39Y8999 | 32A/230V 3P w/IEC309 3P+N+Gnd Conn | |
| 40K1692 | IBM External USB Floppy Drive | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 46C5364 | IBM RDX160 Internal USB Bundle | |
| 46C5387 | IBM RDX320 Internal USB Bundle | |
| 46C5388 | IBM RDX500 Internal USB Bundle | |
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 93084EX | IBM 42U Enterprise Expansion Rack | |
| 93084PX | IBM 42U Enterprise Rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 |
40K9492 40K9201 |
IBM 3 Button Optical Mouse - Black - USB |
