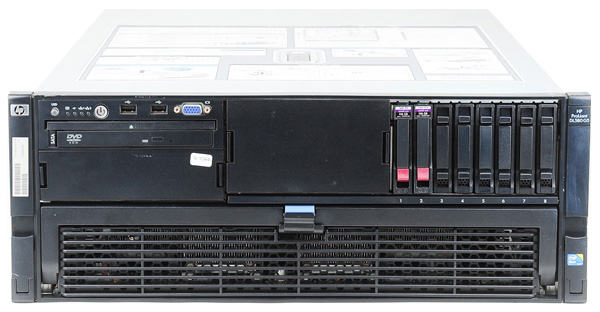

HP DL580 G5
| 整機信息 | |
| 名稱 | HP ProLiant DL580 G5 Server series |
| 型號 | |
| 品牌 | HP |
| 類型 | PC服務器 |
| CPU信息 | 1 到 4 個處理器 |
| CPU類型 | 英特爾 至強 |
| CPU插槽數 | 4 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 4U |
| 硬盤信息 | |
| 最大硬盤數量 | 16 |
| 內存提示 | 內存類型：PC2-5300 fully-buffered DIMMs (DDR2-667) |
| 支持內存容量范圍 | 最大內存 128 G |
| 內存插槽數量 | 32 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 800/1200瓦交流電源 |
| 單機電源數量 | 4 |
| 介質托架 | 薄型CD-RW/DVD-ROM組合光驅選件套件；薄型DVD-ROM光驅(8/24倍速)選件套件；薄型HP DVD+R/RW 8倍速光驅。 |
| 適配器插槽 | 標配4個PCI Express X8，4個PCI Express X4擴展插槽，最多可增加3個PCI-X插槽或3 個PCX-E X8插槽 |
| 端口 | 串口1；定位設備(鼠標) 1；視頻端口1個正面； 1個背面；鍵盤接口1；USB 2.0端口共6個：2個正面；2個背面；2個內置。 |
| 發布日期 | |
| 下架日期 | 2010/12/1 |
| 服務截止期 | |
| 操作系統 | Windows Server 2003；Red Hat Enterprise Linux；SuSE Linux Enterprise Server；Novell NetWare；Sun Solaris Intel Platform Edition；VMware Virtualization 軟件。 |
| 產品尺寸 | (高x長x寬) 17.6x48.3x67.3厘米(6.94x19x26.5英寸) |
| 產品重量 | 重量(未安裝硬盤驅動器，2個電源) 30.8千克(68 磅) |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 438090-B21 | HP DL580 G5 Intel® Xeon® E7340 (2.40GHz/4-core/8MB/80W) Processor Kit | |
| 438091-B21 | HP DL580 G5 Intel® Xeon® E7330 (2.40GHz/4-core/6MB/80W) Processor Kit | |
| 438092-B21 | HP DL580 G5 Intel® Xeon® E7320 (2.13GHz/4-core/4MB/80W) Processor Kit | |
| 438093-B21 | HP DL580 G5 Intel® Xeon® E7310 (1.60GHz/4-core/4MB/80W) Processor Kit | |
| 438100-B21 | HP DL580 G5 Intel® Xeon® L7345 (1.86GHz/4-core/8MB/50W) Processor Kit | |
| 438101-B21 | HP DL580 G5 Intel® Xeon® E7220 (2.93GHz/2-core/8MB/80W) Processor Kit | |
| 451999-B21 | HP DL580 G5 Intel® Xeon® X7350 (2.93GHz/4-core/8MB/130W) Processor Kit | |
| 487373-B21 | HP DL580 G5 Intel® Xeon® X7460 (2.67GHz/6-core/16MB/130W) Processor Kit | |
| 487373-L21 | Intel® Xeon® X7460 2.67GHz Hexa Core 16MB DL580 G5 Factory Integrated Processor Option Kit | |
| 487375-B21 | HP DL580 G5 Intel® Xeon® E7450 (2.40GHz/6-core/12MB/90W) Processor Kit | |
| 487375-L21 | Intel® Xeon® E7450 2.4GHz Hexa Core 12MB DL580 G5 Factory Integrated Processor Option Kit | |
| 487377-B21 | HP DL580 G5 Intel® Xeon® E7440 (2.40GHz/4-core/16MB/90W) Processor Kit | |
| 487377-L21 | Intel® Xeon® E7440 2.4GHz Quad Core 16MB DL580 G5 Factory Integrated Processor Option Kit | |
| 487378-B21 | HP DL580 G5 Intel® Xeon® E7430 (2.13GHz/4-core/12MB/90W) Processor Kit | |
| 487378-L21 | Intel® Xeon® E7430 2.13GHz Quad Core 12MB DL580 G5 Factory Integrated Processor Option Kit | |
| 487380-B21 | HP DL580 G5 Intel® Xeon® E7420 (2.13GHz/4-core/8MB/90W) Processor Kit | |
| 487380-L21 | Intel® Xeon® E7420 2.13GHz Quad Core 8MB DL580 G5 Factory Integrated Processor Option Kit | |
| 506157-B21 | HP DL580 G5 Intel® Xeon® L7445 (2.13GHz/6-core/12MB/50W) Processor Kit | |
| 506157-L21 | HIntel® Xeon® L7445 2.13GHz Six Core 12MB DL580 G5 Factory Integrated Processor Option Kit | |
| 系統板 | ||
| 449415-001 | Hp Processor and memory module tray assembly, SPS-BD CPU DL580G5 | |
| 449417-001 | HP DL580G5 SPI Board | |
| 452179-B21 | DL580 G5 Memory expansion boards option | |
| 內存 | ||
| 351580-B21 | 128MB BBWC for SA641/642 | |
| 397411-B21 | 2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit | |
| 397413-B21 | 4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit | |
| 397415-B21 | 8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit | |
| 405139-B21 | HP Smart Array P400 256MB Cache FIO | |
| 405148-B21 | 512 MB Battery-backed write cache upgrade | |
| 413015-B21 | 16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit | |
| 461826-B21 | 2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit | |
| 461828-B21 | 4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit | |
| 462967-B21 | HP 512MB P-Series Battery Backed Write Cache Upgrade | |
| 462968-B21 | HP 256MB P-series Cache Upgrade | |
| 466440-B21 | 8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit | |
| 495604-B21 | 64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit | |
| 534562-B21 | HP 1GB Flash Backed Cache | |
| 534916-B21 | HP 512MB Flash Backed Write Cache | |
| 硬盤 | ||
| 418399-001 | 146.0GB hot-swap dual-port Serial Attached SCSI (SAS) hard drive - 10,000 RPM, 2.5-inch Small Form Factor (Option 418367-B21) | |
| 458924-B21 | HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 460355-B21 | HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 507125-B21 | HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 year Warranty Hard Drive | |
| 507127-B21 | HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 years Warranty Hard Drive | |
| 507610-B21 | HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1 year Warranty Hard Drive | |
| 507750-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 512545-B21 | HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-B21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 530888-B21 | HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 572071-B21 | HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 572073-B21 | HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| RAID卡 | ||
| 347786-B21 | HP 8 Internal Port SAS 64/133 PCI-X RAID Host Bus Adapter | |
| SCSI卡 | ||
| AH627A | HP U320e SCSI Dual Channel Host Bus Adapter | |
| 網卡 | ||
| 435508-B21 | HP NC364T PCI Express Quad Port Gigabit Server Adapter | |
| 458492-B21 | HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | |
| 468332-B21 | HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | |
| 503746-B21 | HP NC112T PCI Express Gigabit Server Adapter | |
| 適配卡 | ||
| 394791-B21 | HP NC373T PCI Express Multifunction Gigabit Server Adapter | |
| 394793-B21 | HP NC373F PCI Express Multifunction Gigabit Server Adapter | |
| 412648-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 412911-B21 | HP SC11Xe Host Bus Adapter | |
| 416096-B21 | HP SC44Ge Host Bus Adapter | |
| 448397-B21 | HP IB 4X DDR PCI-e Dual Port HCA | |
| 452181-B21 | PCI Express x8 3-slot option card | |
| 452182-B21 | PCI-X 3-slot option card | |
| 468406-B21 | HP 24 Bay 3Gb SAS Expander Card | |
| 483513-B21 | HP IB 4X DDR PCI-e Dual Port 0 Memory HCA | |
| 488765-B21 | HP SC08Ge Host Bus Adapter | |
| 572531-B21 | HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 572532-B21 | HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller | |
| 578229-B21 | HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 578230-B21 | HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller | |
| AW520A | HP StorageWorks CN1000E Dual Port Converged Network Adapter | |
| 光纖卡 | ||
| A8002A | HP StorageWorks FC2142SR PCI Express 4Gb Host Bus Adapter | |
| A8003A | HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e Host Bus Adapter | |
| AE311A | HP StorageWorks FC1142 4Gb PCI-Express Host Bus Adapter | |
| AE312A | HP StorageWorks FC1242SR 4Gb PCIe dual-channel Host Bus Adapter | |
| AJ763A | HP StorageWorks 82E 8Gb Dual-port PCI Express Fiber Channel Host Bus Adapter | |
| AJ764A | HP StorageWorks 82Q 8Gb Dual Port PCIe Fiber Channel Host Bus Adapter | |
| AK344A | HP StorageWorks 81Q PCIe Fiber Channel Host Bus Adapter | |
| AP767A | HP StorageWorks 41B PCI Express 4Gb Host Bus Adapter - Single port, fiber channel | |
| AP768A | HP StorageWorks 42B PCI Express 4Gb Host Bus Adapter - Dual port, fiber channel | |
| AP769A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Single port, fiber channel | |
| AP770A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Dual port, fiber channel | |
| 電源 | ||
| 437572-B21 | High Efficiency HP 1200W 12V Hot Plug AC Power Supply | |
| 437573-B21 | HP 1200W Common Slot -48VDC Hot Plug Power Supply Kit | |
| 441830-001 | Power supply (1200W) - Hot plug, 1U, 12V DC output | |
| AF452A | HP R/T3000 UPS, Low voltage NA/JPN | |
| AF453A | HP R/T3000 UPS, High voltage, NA/JPN | |
| AF914A | HP 4.9kVA 24A Single Input Single Phase Monitored Power Distribution Unit | |
| AF916A | HP 17.3 kVA S348 Monitored PDU- single input, 3-phase, 60A | |
| 電池 | ||
| 383280-B21 | HP Smart Array Cache Battery Kit - For Smart Array P400 Controller only | |
| 光驅 | ||
| 264007-B21 | Slimline DVD-ROM Drive (8X/24X) Option Kit | |
| 383975-B21 | HP DVD+R/RW 8X Slim | |
| 481041-B21 | HP Slim SATA DVD-ROM Optical Drive | |
| 481043-B21 | HP Slim SATA DVDRW Optical Drive | |
| 磁帶機 | ||
| AH558A | HP StorageWorks 1/8 G2 Ultrium 920 SAS Tape Autoloader | |
| AH559A | HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library | |
| AH560A | HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library | |
| AJ823A | DAT 320 USB External Tape Drive | |
| AJ825A | HP StorageWorks DAT 320 USB Internal Tape Drive | |
| AJ828A | DAT 320 WW SAS External Tape Drive | |
| AJ830A | HP DAT 320 SAS Internal Tape Drive | |
| AK377A | HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | |
| AK378A | HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library | |
| AK379A | HP StorageWorks MSL2024 0-drive, 24 Slot Tape Library | |
| AK380A | HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library | |
| AK381A | HP MSL2024 Ultr 920 SAS Tape Library | |
| AK382A | HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library | |
| AP835A | HP StorageWorks DAT 320 USB Tape Drive in 1U USB Rack Kit | |
| AU300A | HP MSL8048 0-drive 48 Slot Tape Library | |
| DW085A | HP StorageWorks Ultrium 448 SAS Internal Tape Drive | |
| EH847A | HP StorageWorks Ultrium 920 SAS Internal Tape Drive | |
| EH860A | HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive | |
| EH899A | HP StorageWorks LTO-5 Ultrium 3280 Internal Tape Drive | |
| EH919A | HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive | |
| 風扇 | ||
| 407747-001 | Fan - Hot-plug fan assembly, 60mm x 38mm | |
| 導軌 | ||
| AF092A | HP 10642 G2 1200mm deep Shock Rack | |
| AF094A | HP 10647 G2 1200mm deep Shock Rack | |
| 線纜 | ||
| 142257-003 | HP IEC320-C14 to C13 (10A/10ft/3.0m) PDU Cable | |
| 417836-B21 | Smart Array P400 battery attach cable kit - 61cm (24in) long | |
| 其它 | ||
| 252663-B21 | HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW) | |
| 252663-B24 | HP Modular Power Distribution Unit(mPDU), High Volt Model, 16A (200-240 VAC) (WW) | |
| 252663-D71 | HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan) | |
| 252663-D72 | HP 24A High Voltage Modular Power Distribution Unit (North America, Japan) - 4.9 kVA Modular PDU, 24A | |
| 252663-D73 | HP Modular Power Distribution Units (Zero-U/1U Modular PDU) - 8.3 kVA Modular PDU, 40A (USA, Canada, Japan) | |
| 337972-B21 | HP Smart Array P600/256 BBWC Controller | |
| 364430-B21 | HP StorageWorks 50 Modular Smart Array | |
| 381513-B21 | HP Smart Array P800/512 BBWC Controller | |
| 405132-B21 | HP Smart Array P400/256MB Controller | |
| 411064-B21 | HP Smart Array P400/512MB Controller with BBWC | |
| 411508-B21 | HP Smart Array E200/128 BBWC Controller | |
| 418408-B21 | HP StorageWorks 60 Modular Smart Array | |
| 418800-B21 | HP StorageWorks 70 Modular Smart Array | |
| 435129-B21 | HP Smart Array E500/256MB Controller | |
| 452148-B22 | HP Insight Control suite, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 452151-B21 | HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 452180-B21 | DL580 G5 SAS SFF 8-bay drive cage option | |
| 453744-B21 | DL580 G5 tower kit | |
| 462830-B21 | HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | |
| 462832-B21 | HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | |
| 462834-B21 | HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | |
| 462862-B21 | HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller | |
| 462864-B21 | HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller | |
| 487204-B21 | HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | |
| 487381-B21 | HP ProLiant DL580 G5 highly serviceable rack chassis | |
| 502550-B21 | HP ProLiant DL580 G5 highly serviceable tower chassis | |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | |
| 516471-B21 | HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | |
| 600278-B21 | HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | |
| 600279-B21 | HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | |
| 600281-B21 | HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 600282-B21 | HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 608447-B21 | HP 2GB USB Flash Media Drive Key Kit | |
| AF001A | 10642 G2 (42U) Rack Cabinet - Pallet | |
| AF002A | 10642 G2 (42U) Rack Cabinet - Shock Pallet | |
| AF426A | HP Rack Uninterruptible Power System R5500 (North America or Japan) | |
| AF504A | HP monitored single Power Distribution Unit (PDU) S1324 (North America, Japan) - 3PH, 24A, 8.6 kVA | |
| AF506A | HP Single Input 1 Phase 40A Monitored Power Distribution Unit (North America, Japan) | |
| AF616A | HP Server Console 0x2x8 Port Analog Switch | |
| AF617A | HP Server Console 0x2x16 Port Analog Switch | |
| AF618A | HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF619A | HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF620A | HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF621A | HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF622A | HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AJ934A | HP RDX500 Internal Removable Disk Backup System | |
| AJ940A | HP D2600 Disk Enclosure | |
| AW577A | HP StorageWorks RDX750 Internal Removable Disk Backup System | |
| DC172B | HP USB 2-Button Optical scrolling mouse (Carbonite Black and Silver) - Has 1.8m (6.0 feet) long cable with USB connector | |
| DT528A#ABA | HP Keyboard (USB) standard 2004 | |
| T9074BAE | HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | |
| T9082AAE | HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | |
| TA850AAE | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License | |
| TC208A | HP Insight Control for Linux Media Kit | |
| TC209A | HP Insight Control for Linux including 1yr 24x7 Support Single Server License | |
| TC213AAE | HP Insight Control for Linux including 1yr 24x7 Support Electronic License | |
| TC275A | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License | |
| TC278AAE | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | |
| U4607E | 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| U4608E | 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4609E | 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4617E | Hardware Installation, Electronic | |
| U4618E | Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic | |
| U4619E | Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic | |
| U4620E | Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U5683E | Installation and Startup for Essentials Rapid Deployment Pack, Electronic | |
| U6316E | Onsite HW support 24x7, 4hr response and SuSE O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
